General Urdaneta 1990
Mariscal Sucre 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Mariscal Sucre | F21 | CNR, Riva Trigoso, Italy | 19.11.1976 | 28.9.1978 | 10.5.1980 | in service (2019) | |
| Almirante Brión | F22 | CNR, Riva Trigoso, Italy | 6.1977 | 22.2.1979 | 7.3.1981 | in service (2019) | |
| General Urdaneta | F23 | CNR, Ancona, Italy | 23.1.1978 | 23.3.1979 | 8.8.1981 | in service (2019) | |
| General Soublette | F24 | CNR, Riva Trigoso, Italy | 26.8.1978 | 4.1.1980 | 4.12.1981 | in service (2019) | |
| General Salóm | F25 | CNR, Ancona, Italy | 7.11.1978 | 13.1.1980 | 3.4.1982 | in service (2019) | |
| Almirante García (ex-General José Felix Ribas) | F26 | CNR, Riva Trigoso, Italy | 21.8.1979 | 4.10.1980 | 30.7.1982 | in service (2019) |
|
Displacement standard, t |
2200 |
|
Displacement full, t |
2525 |
|
Length, m |
106.0 pp 113.7 oa |
|
Breadth, m |
12.0 |
|
Draught, m |
3.84 hull |
|
No of shafts |
2 |
|
Machinery |
CODOG: 2 General Electric-Fiat LM-2500 gas turbines / 2 GMT A230-2M diesels |
|
Power, h. p. |
50000 / 7900 |
|
Max speed, kts |
35 |
|
Fuel, t |
diesel / gas turbine oil |
|
Endurance, nm(kts) |
5500(16) |
|
Armament |
8 x 1 Teseo Mk 2 SSM (8 Otomat Mk 2), 1 x 8 Albatros SAM (8 Aspide), 1 x 1 - 127/54 OTO-Melara Compact, 2 x 2 - 40/70 Breda-Bofors Compact Twin 40, 2 x 3 - 324 ILAS-3 TT (A-244S), 1 helicopter (AB-212ASW) |
|
Electronic equipment |
3RM-20, RAN-10S, RAN-11X, 2x RTN-10X, 2x RTN-20X radar, Edo 610E sonar, Lambda-F ECM suite, 2x SCLAR decoy LR, IPN-10 CCS |
|
Complement |
185 |
Project history: Very similar to standard Italian Lupo class, differing by fixed hangar and no reloads for SAM.
Modernizations: 2002, Mariscal Sucre, Almirante Brión: 2 GMT A230-2M diesels were replaced by 2 MTU 20V1163 diesels (19800hp); - RAN-10S radar, Edo 610E sonar, Lambda-F ECM suite, IPN-10 CCS; + EL/M-2238 radar, 21HS-7 sonar, NS-9003, NS-9005 ECM suites, ENTCS 2000 CCS, complement becomes 131
2003, General Urdaneta; 2004, General Soublette: - Edo 610E sonar; + 21HS-7 sonar
2017, Almirante García: - 2 x 3 - 324 TT
Naval service: No significant events.

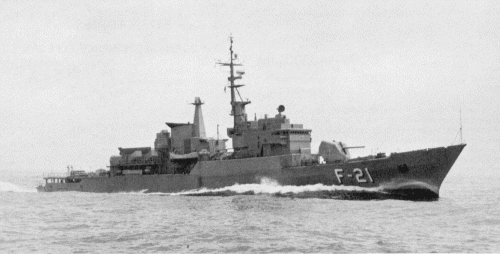

Mariscal Sucre 1980

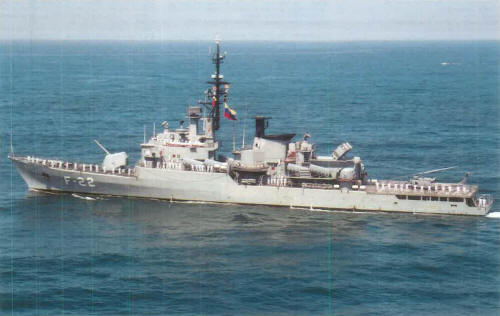

Almirante Brión 2007
