Felipe Larrazabal 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Felipe Larrazabal (ex-Tolowa) | R11 | United Engineering, San Francisco, USA | 7.1943 | 17.5.1944 | 12.1944 // 2.1962 | wrecked 1972, stricken | |
| Felipe Larrazabal (ex-Utina) | R12, 1978- R21 | Charleston SB, USA | 6.1945 | 31.8.1945 | 1.1946 // 3.9.1971 | stricken 9.1990 | |
| Antonio Picardi (ex-Nipmuc) | R22 | Charleston SB, USA | 12.1944 | 1945 | 7.1945 // 1.9.1978 | wrecked 12.4.1982 | |
| Miguel Rodríguez (ex-Salinan) | RA33 | Charleston SB, USA | 4.1945 | 20.7.1945 | 11.1945 // 1.9.1978 | stricken 2003 |
|
Displacement standard, t |
1235 |
|
Displacement full, t |
1675 |
|
Length, m |
59.4 wl 62.5 oa |
|
Breadth, m |
11.7 |
|
Draught, m |
4.67 |
|
No of shafts |
1 |
|
Machinery |
4 General Electric 16-278A diesel-generators, 1 electric motor |
|
Power, h. p. |
3000 |
|
Max speed, kts |
16.5 |
|
Fuel, t |
diesel oil 300 |
|
Endurance, nm(kts) |
7000(15) |
|
Armament |
R12: 1 x 1 - 76/50 Mk 22 others: 2 x 1 - 12.7/90 |
|
Electronic equipment |
SPS-53 radar |
|
Complement |
85 |
Project history: Former USN Acomawi class fleet tugs, used as tugs and patrols.
Modernizations: None.
Naval service: First Felipe Larrazabal was stricken in 1972 after grounding. Antonio Picardi ran aground and was lost 12.4.1982.

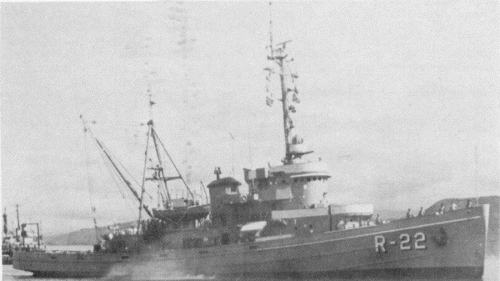

Antonio Picardi 1978
