Names |
A8201 Punta Barima A8202 Punta Mosquit A8203 Punta Mulatos A8204 Punta Perret A8205 Punta Cardon A8206 Punta Playa A8207 Punta Macoya A8208 Punta Moron A8209 Punta Unare A8210 Punta Ballena A8211 Punta Macuro A8212 Punta Mariusa |
|
Builders |
Rober E. Derecktor SY, Mamaroneck, USA: A8201-8212 |
|
Commissioned |
1982: A8201-8206 1987: A8207-8212 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
in service (2019): A8201-8212 |
|
Displacement standard, t |
|
|
Displacement full, t |
15 |
|
Length, m |
13.1 |
|
Breadth, m |
4.10 |
|
Draught, m |
1.20 |
|
No of shafts |
2 |
|
Machinery |
2 General Motors 12V92MTI diesels |
|
Power, h. p. |
1950 |
|
Max speed, kts |
29 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) |
390(25) |
|
Armament |
2 x 1 - 12.7/90 |
| Electronic equipment | Furuno or Raytheon radar |
|
Complement |
4 |
Project history: A8201-8203 and 8207-8209 have a vehicle ramp aft. Aluminium construction. Last six were completed in 1984 but due financial problems delivered only in 1987.
Modernizations: 1996-1998, all: were re-engined with 2 MTU diesels (1500hp, 34kts), - 1 x 1 - 12.7/90
Naval service: No significant events.

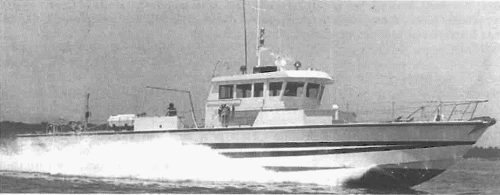

1984
