Federación 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Federación | P12, 1978- PC12 | Vosper Thornycroft, Portsmouth, UK | 8.1973 | 26.2.1974 | 25.3.1975 | in service (2019) | |
| Libertad | P14, 1978- PC14 | Vosper Thornycroft, Portsmouth, UK | 9.1973 | 5.3.1974 | 12.6.1975 | in service (2019) | |
| Victoria | P16, 1978- PC16 | Vosper Thornycroft, Portsmouth, UK | 3.1973 | 3.9.1974 | 22.9.1975 | in service (2019) |
|
Displacement standard, t |
150 trials |
|
Displacement full, t |
170 |
|
Length, m |
33.5 pp 36.9 oa |
|
Breadth, m |
7.16 |
|
Draught, m |
1.80 hull |
|
No of shafts |
2 |
|
Machinery |
2 MTU MD 16V538 TB90 diesels |
|
Power, h. p. |
7080 |
|
Max speed, kts |
31 |
|
Fuel, t |
diesel oil 24 |
| Endurance, nm(kts) |
1350(16) |
|
Armament |
2 x 1 Otomat SSM (2 Otomat), 1 x 1 - 40/70 Bofors 564, 2 x 1 - 12.7/90 |
| Electronic equipment | SPQ-2D, Decca radars |
|
Complement |
20 |
Project history: Vosper Thomycroft designed attack craft in gun and missile armed variants.
Modernizations: 1989, all: - 1 x 1 - 40/70; + 1 x 1 - 30/82 OTO-Breda 559, Medusa Mk 3 e/o director
Naval service: All boats were transferred in 1983 to Coast Guard but later returned to Navy.

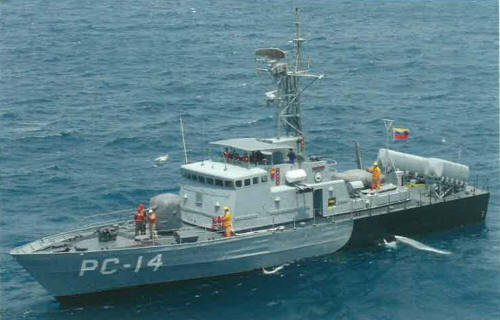

Libertad 2009
