Names |
YP654, 4.1988- CT5 YP655 - 658 YP659, 9.1985- CT10 YP660, 10.1985- CT9 YP661, 11.1986- CT8 YP662, 11.1986- CT15 YP663 YP664, 10.1987- CT6 YP665, 8.1988- CT11 YP666, 667 YP668, 7.1988- CT2 YP669, 1988- CT4 YP670, 671 YP672, late 1980s- CT18 YP673 YP674, late 1980s- CT20 YP675, 1988- CT1 |
|
Builders |
Stephens, Stockton: YP654-663, 666, 667 Elizabeth City SY: YP664, 665 Peterson Builders, Sturgeon Bay: YP668-675 |
|
Commissioned |
1958: YP654-663 1960: YP654, 665 1966: YP666 1967: YP667-670 1972: YP671-675 |
|
Losses |
CT4 (5/1994) |
|
Transfers |
none |
|
Discarding |
1994: YP655-658, 663, 666, 667, 670, 671, 673 1998: CT1, 2, 5, 6, 8-11, 15, 18, 20 |
|
Displacement standard, t |
|
|
Displacement full, t |
66 |
|
Length, m |
24.7 |
|
Breadth, m |
5.49 |
|
Draught, m |
1.83 |
|
No of shafts |
2 |
|
Machinery |
4 Detroit diesels |
|
Power, h. p. |
437 |
|
Max speed, kts |
12 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 1800(10) |
|
Armament |
none |
|
Electronic equipment |
Raytheon 1220 radar |
| Complement | 10 |
Project history: Patrol craft. Wooden hull.
Modernizations: 1985-1988, CT craft were converted to minesweeping boats ('COOP Trainer'); + Type 3010 sonar, SYQ-12 CCS
Naval service: No significant events.

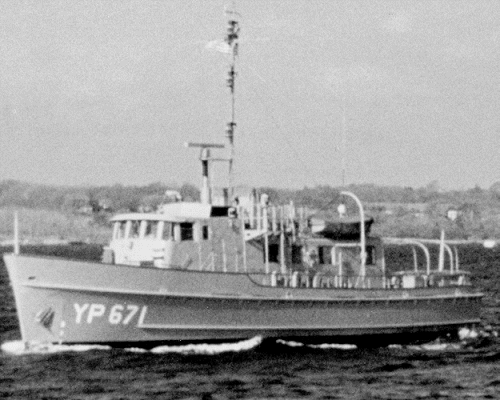

YP671

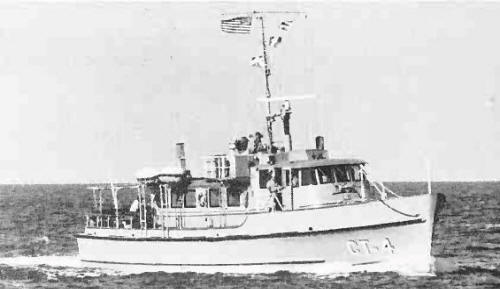

CT4
© Ivan Gogin, 2015
