UNITED STATES OF AMERICA



COASTAL FORCES



PT5 motor torpedo boats (1940-1941)



Names

PT5

PT6 (1)

PT6 (2)

Builders

Higgins, New Orleans: PT5, 6(1), 6(2)

Commissioned

8/1940: PT6 (1)

2-3/1941: PT5, 6 (2)

Losses

none

Transfers

United Kingdom, 4 - 7.1941: PT5, 6 (1), 6 (2) (MTB269, MGB68, MTB270)

Discarding none







Displacement standard, t

30

Displacement full, t

34

Length, m

24.7

Breadth, m



Draught, m



No of shafts

3

Machinery

3 petrol engines

Power, h. p.

PT5, 6(1): 3000

PT6 (2): 3600

Max speed, kts

PT5, 6 (1): 31

PT6 (2): 36

Fuel, t

petrol

Endurance, nm(kts)



Armament

2 x 2 - 12.7/90, 2 - 533 TT

Complement

17

Project history: Experimental MTBs built by Higgins design, may be first really armed American MTBs. All were transferred to RN by lend-lease and were commissioned by British as MTBs (2 boats) and MGB (1 boat)

Modernizations: None.

Naval service: No significant events.

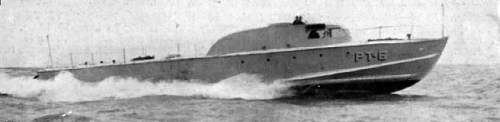

PT6 (2) 1941
