PT545 1944
|
Names |
PT103 - 196 PT314 - 367 PT372 - 383 PT486 - 563 PT565 - 624 PT731 - 790 |
|
Builders |
ELCO, Bayonne: PT103 - 198, 314 - 361, 372 - 383, 486 - 563, 565 - 624 Harbor Boat, Long Beach: PT362 - 367 |
|
Commissioned |
6-12/1942: PT103 - 171 1-12/1943: PT172 - 196, 314 - 367, 372 - 383, 486, 488 - 502, 546 - 563, 565 - 570 1-12/1944: PT487, 503 - 545, 571 - 575, 731 - 752 1-10/1945: PT576 - 622, 753 - 760 |
|
Losses |
PT107 (18.6.1944), PT109 (2.8.1943), PT110 (26.1.1944), PT111 (1.2.1943), PT112 (10.1.1943), PT113 (8.8.1943), PT117 (1.8.1943), PT118 (7.9.1943), PT119 (17.3.1943), PT121 (27.3.1943), PT123 (1.2.1943), PT133 (15.7.1944), PT135 (12.4.1944), PT136 (17.9.1943), PT145 (4.1.1944), PT147 (19.11.1943), PT153 (4.7.1943), PT158 (5.7.1943), PT164 (1.8.1943), PT165 (23.5.1943), PT166 (20.7.1943), PT172 (7.9.1943), PT173 (23.5.1943), PT193 (25.6.1944), PT320 (5.11.1944), PT321 (11.11.1944), PT322 (23.12.1943), PT323 (10.12.1944), PT337 (7.3.1944), PT338 (28.1.1944), PT339 (27.5.1944), PT346 (29.4.1944), PT347 (29.4.1944), PT353 (27.3.1944), PT363 (25.11.1944), PT493 (25.10.1944), PT509 (9.8.1944), PT555 (23.8.1944) PT623, 624, 761 - 790 - sold incomplete |
|
Transfers |
Soviet Union 10-12/1944: PT499, 500, 503, 504, 510 - 513 (TK-417 - 425); 1-5/1945: PT498, 501, 502, 506 - 508, 510 - 521, 552 - 554, 556, 560 - 563, 731 - 760 (TK-426 - 433, 436 - 441, 434, 442, 446, 435, 447, 443 - 445, 417, 484 - 491, 493, 494, 509, 495 - 508, 510, 520, 530) Norway 1951 (after they were stricken): PT602 - 606, 608 - 612 (Snøgg, Sel, Sild, Skrei, Snar, Lyr, Springer, Hai, Hauk, Hval, Hyass) South Korea 1.1952: PT613, 616, 619, 620 (Olpanei, Kaimaeki, Koroki, Ebi) |
|
Discarding |
10-12/1945: PT103 - 106, 108, 114 - 116, 120, 122, 124 - 132, 134, 137, 138, 142 - 144, 146, 148 - 152, 154 - 157, 159 - 163, 167 - 171, 174 - 192, 194 - 196, 318, 319, 324 - 336, 340 - 345, 348 - 352, 354 - 362, 364 - 367, 372 - 383, 488 - 492, 494 - 497, 522 - 551, 565 - 600 1-2/1946: PT139 - 141, 314 - 317, 486, 487, 505, 557 - 559, 601 - 612, 614, 615, 617, 618, 621, 622 |
|
Displacement standard, t |
38 |
|
Displacement full, t |
54 - 61 |
|
Length, m |
24.4 |
|
Breadth, m |
6.30 |
|
Draught, m |
1.60 |
|
No of shafts |
3 |
|
Machinery |
3 petrol engines |
|
Power, h. p. |
4050 - 4500 |
|
Max speed, kts |
41 - 43 |
|
Fuel, t |
petrol 11400 l |
|
Endurance, nm(kts) |
500 (20) |
|
Armament |
PT103 - 173, 175 - 195, 314 - 367, 372 - 383: 1 x 1 - 20/70 Mk 4, 2 x 2 - 12.7/90, 4 - 533 TT PT174: 1 x 1 - 40/56 Mk 1.2, 1 x 1 - 20/70 Mk 4, 2 x 2 - 12.7/90, 4 - 533 TT PT196: 1 x 1 - 40/56 Mk 1.2, 1 x 1 - 20/70 Mk 4, 2 x 2 - 12.7/90, 2 - 533 TT PT486 - 514, 516 - 555: 2 x 1 - 20/70 Mk 4, 2 x 2 - 12.7/90, 4 - 572 TR PT515: 1 x 1 - 40/56 Mk 1.2, 1 x 1 - 20/70 Mk 4, 2 x 2 - 12.7/90, 2 - 572 TR, 2 DC PT556 - 559: 1 x 4 - 20/70 Mk 4, 1 x 1 - 20/70 Mk 4, 2 x 2 - 12.7/90, 2 - 572 TR PT560 - 563: 2 x 1 - 40/56 Mk 1.2, 2 x 2 - 12.7/90, 4 - 533 TT PT565 - 624: 1 x 1 - 37/71 M9, 1 x 1 - 20/70 Mk 4, 2 x 2 - 12.7/90, 2 x 1 - 127 rocket launchers, 4 - 572 TR PT731 - 760: 2 x 1 - 20/70 Mk 4, 2 x 2 - 12.7/90, 2 - 533 TT |
|
Electronic equipment |
SO or SCR-517A radar |
|
Complement |
17 |
Project history: 80ft ELCO type. Further development of 77ft ELCO.
Modernizations: 1942, PT138: + 1 x (4 - 20/70 Mk 4 + 2 - 12.7/90)
1942, PT160: + 1 x 4 - 20/70 Mk 4
1943, PT109: + 1 x 1 - 37/61 M3
1943, PT149: + 2 x 1 - 12.7/90
1943, PT157: - 1 x 2 - 12.7/90; + 1 x 1 - 20/70 Mk 4
1943, PT187 - 192: - 1 x 2 - 12.7/90; + 2 x 1 - 20/70 Mk 4
1943, PT193 - 195: - 1 x 2 - 12.7/90; + 1 x 1 - 40/56 Mk 1.2, 1 x 1 - 20/70 Mk 4
1943, PT331: + 1 x 1 - 37/61 M4, 1 x 1 - 20/70 Mk 4
1943, PT353, 354, 374 - 377: - 1 x 1 - 20/70; + 1 x 1 - 40/56 Mk 1.2
1944, PT115: - 1 x 2 - 12.7/90, 4 - 533 TT; + 1 x 1 - 20/70 Mk 4, 4 - 572 TR
1944, PT129: - 4 - 533 TT; + 1 x 1 - 40/56 Mk 1.2, 1 x 1 - 37/61 M4, 2 x 12 - 127 RL, 4 - 572 TR
1944, PT143: - 4 - 533 TT; + 1 x 1 - 40/56 Mk 1.2, 1 x 1 - 37/71 M9, 2 x 1 - 20/70 Mk 4, 1 x 1 - 60/12 M19 mortar, 4 - 572 TR, 4 DC
1944, PT154: - 1 x 2 - 12.7/90, 4 - 533 TT; + 1 x 1 - 40/56 Mk 1.2, 1 x 1 - 37/71 M9, 1 x 1 - 20/70 Mk 4, 2 - 572 TR, 2 DC
1944, PT161: - 4 - 533 TT; + 1 x 1 - 40/56 Mk 1.2, 1 x 1 - 37/61 M4, 4 - 572 TR
1944, PT167: + 1 x 1 - 37/61 M4
1944, PT168: - 4 - 533 TT; + 1 x 1 - 57/70 recoilless, 1 x 1 - 37/61 M4, 4 - 572 TR
1944, PT169: - 4 - 533 TT; + 1 x 1 - 37/61 M4, 4 - 572 TR
1944, PT174: - 4 - 533 TT; + 4 - 572 TR
1944, PT178: - 4 - 533 TT; + 1 x 1 - 40/56 Mk 1.2, 1 x 1 - 37/61 M4, 1 x 1 - 20/70 Mk 4, 4 - 572 TR
1944, PT330: - 4 - 533 TT; + 1 x 1 - 40/56 Mk 1.2, 1 x 1 - 37/61 M4, 2 x 1 - 12.7/90, 4 - 572 TR, 2 DC
1944, PT334: + 1 x 1 - 75/31 M4
1944, PT343: - 4 - 533 TT; + 1 x 1 - 40/56 Mk 1.2, 1 x 1 - 37/71 M9, 1 x 1 - 20/70 Mk 4, 4 - 572 TR, 2 DC
1944, PT349: - 4 - 533 TT; + 1 x 1 - 37/71 M9, 2 x 1 - 7.6/90, 2 x 12 - 127 RL, 2 - 572 TR, 2 DC
1944, PT352: - 4 - 533 TT; + 1 x 1 - 40/56 Mk 1.2, 1 x 1 - 20/70 Mk 4, 2 x 12 - 114 RL, 2 - 572 TR, 2 DC
1944, PT491: + 1 x 1 - 40/56 Mk 1.2, 1 x 1 - 37/61 M4, 1 x 1 - 20/70 Mk 4
1944, PT506, 512: - 1 x 1 - 20/70, 2 - 572 TR; + 1 x 1 - 40/56 Mk 1.2, 2 DC
1944, PT515, 520: + 1 x 1 - 37/71 M9
1944, PT517: - 2 x 1 - 20/70, 2 - 572 TR; + 1 x 1 - 40/56 Mk 1.2, 1 x 1 - 37/71 M9, 2 DC
1944, PT519: - 1 x 1 - 20/70, 2 - 572 TR; + 1 x 1 - 40/56 Mk 1.2, 1 x 1 - 37/71 M9, 2 DC
1944, PT523: - 2 - 572 TT; + 1 x 1 - 40/56 Mk 1.2, 1 x 1 - 37/71 M9, 1 x 1 - 20/70 Mk 4, 2 x 1 - 7.6/90, 2 x 1 - 60/12 M9 mortars
1944, PT525: + 2 x 1 - 7.6/90
1944, PT533 - 544: - 2 - 572 TR; + 1 x 1 - 20/70 Mk 4
1944, PT552 - 555: - 1 x 1 - 20/70; + 1 x 1 - 40/56 Mk 1.2
1/1946, PT139-141, 314-317: 1 x 1 - 20/70 Mk 10, 2 x 2 - 12.7/90, 4 - 533 TT, SO or SCR-517A radar
1/1946, PT486, 487, 505: 2 x 1 - 20/70 Mk 10, 2 x 2 - 12.7/90, 4 - 572 TR, SO or SCR-517A radar
1/1946, PT557-559: 1 x 4 - 20/70 Mk 15, 1 x 1 - 20/70 Mk 10, 2 x 2 - 12.7/90, 2 - 572 TR, SO or SCR-517A radar
1/1946, PT601-612, 614, 615, 617, 618, 621, 622: 1 x 1 - 37/71 M9, 1 x 1 - 20/70 Mk 10, 2 x 2 - 12.7/90, 2 x 1 - 127 RL, 4 - 572 TR, SO or SCR-517A radar
Naval service: No significant events.
PT109

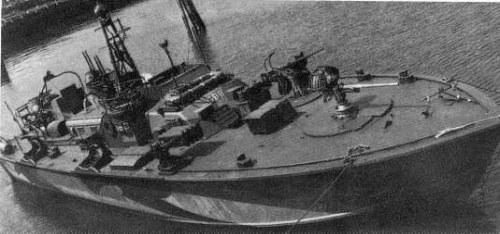

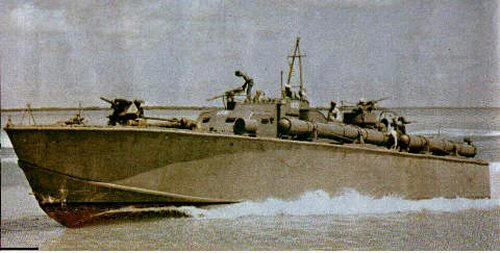

PT588 1944
© Ivan Gogin, 2014-15
