Monocacy 1914
| No | Name | Yard No | Builder | Laid down | Launched | Comm | Fate |
| PG16, 6.1928- PR1 | Palos | Mare Island N Yd, Vallejo // Kiangnan Dock, Shanghai, China | 4/1913 | 23.4.1914 | 6/1914 | stricken 5.1937 | |
| PG20, 6.1928- PR2 | Monocacy | Mare Island N Yd, Vallejo // Kiangnan Dock, Shanghai, China | 4/1913 | 27.4.1914 | 6.1914 | stricken 1.1939 |
|
Displacement normal, t |
190 |
|
Displacement full, t |
204 |
|
Length, m |
48.8 |
|
Breadth, m |
7.50 |
|
Draught, m |
0.70 |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 2 Babcock & Wilcox boilers |
|
Power, h. p. |
800 |
|
Max speed, kts |
13.3 |
|
Fuel, t |
coal 34 |
| Endurance, nm(kts) | |
|
Armament |
2 x 1 - 57/50 Driggs-Schroeder Mk II/III, 6 x 1 - 7.6/90 |
| Complement |
47 |
Project history: The small gunboats intended for coastal service.
Modernizations: None.
Naval service: No significant events.

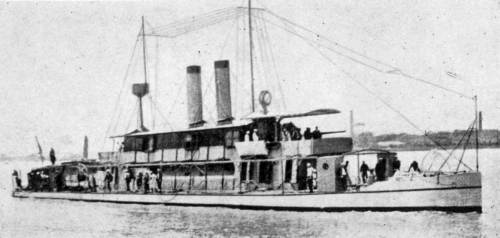

Palos 1924
© Ivan Gogin, 2014
