No |
Name |
Yard No |
Builder |
Laid down |
Launched |
Comm |
Fate |
|
PG38 |
Elcano (ex-El Cano) |
Carraca Arsenal, Cadiz, Spain |
3/1882 |
28.1.1884 |
1885 // 11.1902 |
sunk as target 4.10.1928 |
|
Displacement normal, t |
620 |
|
Displacement full, t |
|
|
Length, m |
50.4 |
|
Breadth, m |
7.93 |
|
Draught, m |
3.05 |
|
No of shafts |
2 |
|
Machinery |
2 VC, 2 cylindrical boilers |
|
Power, h. p. |
1200 |
|
Max speed, kts |
11 |
|
Fuel, t |
coal 98 |
|
Endurance, nm(kts) |
|
|
Armament |
4 x 1 - 102/40 Mk III/IV/V/VI, 4 x 1 - 57/50 Driggs-Schroeder Mk II |
|
Complement |
103 |
Project history: ex-Spanish gunboat captured by US Army at Manila 1.5.1898 and commissioned by USN after repair.
Modernizations: 1918: - 4 x 1 - 57/50; + 4 x 1 - 47/40-45 Driggs-Schroeder Mk I/II
Naval service: No significant events.

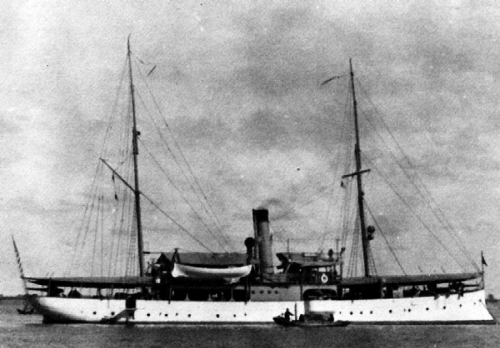

Elcano
