| No | Name | Yard No | Builder | Laid down | Launched | Comm | Fate |
| PG10 | Annapolis | 18 | Lewis Nixon, Elizabethport | 4.1896 | 23.12.1896 | 7.1897 | TS 4.1920, miscellaneous auxiliary IX1 7.1921 |
| PG11 | Vicksburg | 15 | Bath Iron Wks | 1.1896 | 5.12.1896 | 10.1897 | Coast Guard miscellaneous auxiliary WIX272 Alexander Hamilton 5.1921 |
| PG12 | Newport | 16 | Bath Iron Wks | 1.1896 | 5.12.1896 | 10.1897 | to Naval Militia 6.1907, gunboat 6.1918, civilian TS 7.1918, miscellaneous auxiliary IX19 7.1921 |
| PG13 | Princeton | 340 | J. H. Dialogue, Camden | 1896 | 3.6.1897 | 5.1898 | TS 1.1918, stricken 6.1919 |
|
Displacement normal, t |
1000 - 1153 |
|
Displacement full, t |
|
|
Length, m |
51.2 wl 62.3 oa |
|
Breadth, m |
11.0 |
|
Draught, m |
3.66 - 3.89 |
|
No of shafts |
1 |
|
Machinery |
PG10: 1 VTE, 2 Babcock & Wilcox boilers PG11-13: 1 VTE, 2 cylindrical boilers |
|
Power, h. p. |
1000 |
|
Max speed, kts |
11 - 13 |
|
Fuel, t |
PG10: coal 324 PG11 - 13: coal 235 |
| Endurance, nm(kts) | |
|
Armament |
6 x 1 - 102/40 Mk III/IV/V/VI, 4 x 1 - 57/50 Driggs-Schroeder Mk II/III, 2 x 1 - 37/40 Driggs-Schroeder heavy Mk I |
| Complement |
135 - 156 |
Project history: Authorized under the Act of 2.3.95. Originally barquentine-rigged with a clipper bow and long bowsprit, this class consisted of composite-built vessels, rated as sloops in British lists. The 102mm were mounted fore and aft on the upper deck with four amidships on the main deck.
Modernizations: None.
Naval service: Annapolis served as a training ship from 1920 onwards, as did Newport from 1907 to 1931. Vicksburg was renamed Alexander Hamilton by the Coast Guard.

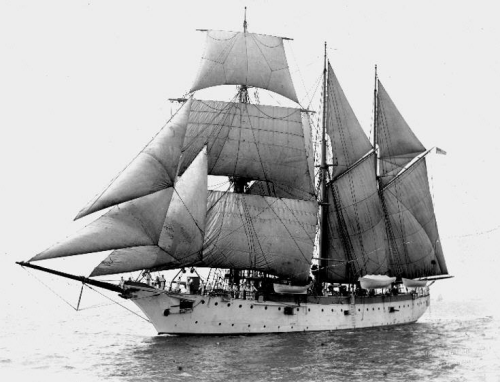

Vicksburg 1898

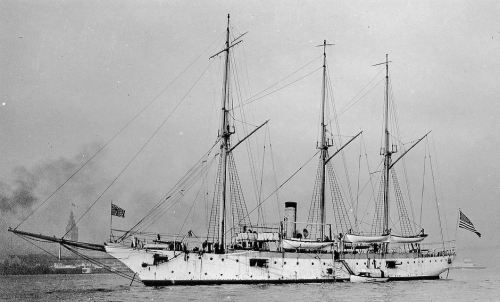

Annapolis 1912
© Ivan Gogin, 2014
