similar MSB1 1950
|
Names |
MSB5 - 28 MSB30 - 54 |
|
Builders |
Trumpy Yachts, Annapolis: MSB5-9, 25-29 Simms Bros, Dorchester: MSB10-13, 40-44 Tacoma Boat, Tacoma: MSB14-18 South Coast Co., Newport Beach: MSB19-22 Defoe SB, Bay City: MSB23, 24 Peterson Builders, Sturgeon Bay: MSB30-34 Owens Yachts, Baltimore: MSB35-39 unknown: MSB45-54 |
|
Commissioned |
1952: MSB5-9, 14-22 1953: MSB10-13 1954: MSB25-54 |
|
Losses |
cancelled: MSB24 MSB14 (Vietnam 1967), MSB15 (Vietnam 1966), MSB23 (fire incomplete 2.2.1955), MSB45 (Vietnam 1967), MSB49 (Vietnam 1967), MSB54 (Vietnam 1966) |
|
Transfers |
Thailand, 1963: MSB5 (MLM10) Panama, 1993: MSB25 (Santa Clara), 28 (Nombre de Dios), 41 (Bastimentos) |
|
Discarding |
1970s: MSB6-10, 13, 16-20, 22, 26, 27, 30, 32, 35, 36, 39, 40, 42-44, 46-48, 50, 52, 53 1971: MSB11 1972: MSB37 1973: MSB5, 31, 33 1974: MSB21 1975: MSB34 1977: MSB38 1990: MSB12 1992: MSB51 |
|
Displacement standard, t |
|
|
Displacement full, t |
42 |
|
Length, m |
17.5 |
|
Breadth, m |
4.80 |
|
Draught, m |
1.30 |
|
No of shafts |
2 |
|
Machinery |
2 diesels |
|
Power, h. p. |
300 |
|
Max speed, kts |
12 |
|
Fuel, t |
diesel oil 15.8 |
| Endurance, nm(kts) | |
|
Armament |
mechanical or acoustic or magnetic minesweeping gear |
|
Complement |
6 |
Project history: Small minesweeping boats intended for harbour service.
Modernizations: None.
Naval service: No significant events.

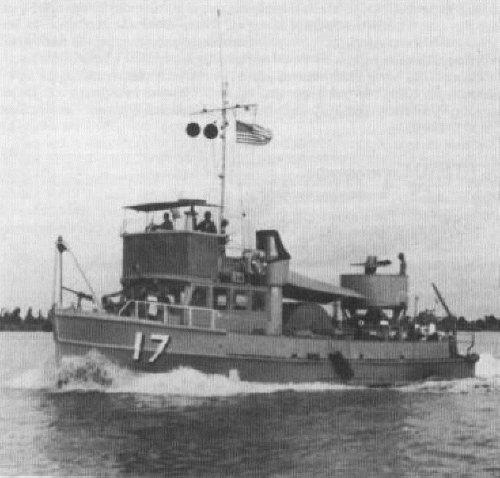

MSB17 1966
