UNITED STATES NAVY (UNITED STATES OF AMERICA)

CRUISERS

SAN FRANCISCO protected cruiser (1890)

San Francisco 1890

No Name Yard No Builder Laid down Launched Comm Fate
C5, 7.1920- CM2 San Francisco, 12.1921- Tahoe, 1.1931- Yosemite 11 Union Iron Wks, San Francisco 14.8.1888 26.10.1889 15.11.1890 minelayer 6.1908, stricken 6.1937



Displacement normal, t

4088

Displacement full, t

4583

Length, m

98.9

Breadth, m

15.0

Draught, m

5.74

No of shafts

2

Machinery

2 HTE, 4 cylindrical boilers

Power, h. p.

10500

Max speed, kts

19

Fuel, t

coal 627

Endurance, nm(kts) 7400(10)

Armour, mm

steel - deck: 51 with 76mm slopes, CT: 76

Armament

12 x 1 - 152/30 Mk III, 4 x 1 - 57/40 Hotchkiss Mk I/II, 4 x 1 - 47/40 Hotchkiss Mk I/Driggs-Schroeder Mk I, 2 x 1 - 37/20 Hotchkiss Mk I

Complement

384

Project history: Authorized under the Act of 3.3.1887. Originally rigged as a three-masted schooner without head gear, San Francisco generally resembled Newark except that the two forward and two after 152mm guns were carried a deck higher and were not in sponsons.

Ship protection: The protective deck was 51mm at flat part with 76mm slopes amidships, CT had 76mm sides. Guns were partly installed in unprotected sponsons and partly on open deck.

Modernizations: 1902: - 12 x 1 - 152/30; + 12 x 1 - 152/41 Mk IV

(1908 - 1911, Norfolk N Yd, Portsmouth): cruiser was rebuilt as minelayer. Armament consisted of 8 x 1 -127/40 Mk III guns and stowage for 180 mines. Old boilers were replaced by 8 Babcock & Wilcox

to 1918: - 8 x 1 - 127/40; + 4x 1 - 127/51 Mk VIII

Naval service: During the First World War she took part in laying the Northern Mine Barrage. San Francisco was decommissioned at Philadelphia in 1921, and remained in reserve until stricken in 1937. Sold for BU in 1939.

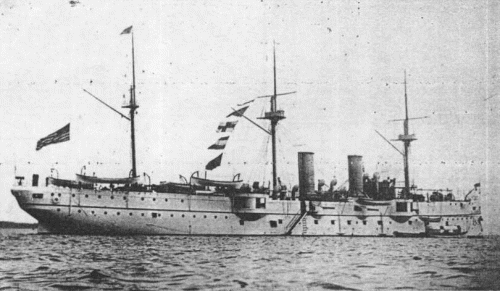

San Francisco 1891
