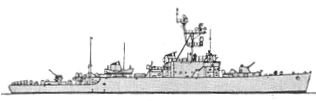

Claud Jones 1963
John R. Perry 1961
| No | Name | Yard No | Builder | Laid down | Launched | Comm | Fate |
| DE1033 | Claud Jones | 840 | Avondale, Westwego | 1.6.1957 | 27.5.1958 | 10.2.1959 | to Indonesia 12.1974 (Mongisidi) |
| DE1034 | John R. Perry | 841 | Avondale, Westwego | 1.10.1957 | 29.7.1958 | 5.5.1959 | to Indonesia 2.1973 (Samadikun) |
| DE1035 | Charles Berry | 905 | American SB, Lorain | 29.10.1958 | 17.3.1959 | 25.11.1959 | to Indonesia 1.1974 (Martadinata) |
| DE1036 | McMorris | 906 | American SB, Lorain | 5.11.1958 | 26.5.1959 | 4.3.1960 | to Indonesia 12.1974 (Ngurah Rai) |
|
Displacement standard, t |
1314 |
|
Displacement full, t |
1916 |
|
Length, m |
91.8 wl 95.1 oa |
|
Breadth, m |
11.6 |
|
Draught, m |
3.90 |
|
No of shafts |
1 |
|
Machinery |
4 Fairbanks-Morse diesels |
|
Power, h. p. |
8700 |
|
Max speed, kts |
21.5 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 7000(12) |
|
Armament |
2 x 1 - 76/50 Mk 34, 2 x 3 - 324 Mk 32 TT, 2 x 24 - 178 Hedgehog Mk 11 ASWRL, 1 DCR |
|
Electronic equipment |
SPS-10, SPS-6C, SPG-52 radars, SQS-4 sonar, WLR-1 ECM suite |
|
Complement |
171 |
Project history: Given the relatively high cost of a Dealey, these were an attempt to produce a minimum ocean escort, consonant with ASW requirements and with mobilization considerations. Diesel power (with two shafts) was therefore chosen, with speed limited to 22kts; weapons were reduced to a pair of fixed Hedgehogs, a lightweight ASW torpedo-dropping system and a single stern depth-charge track. The result was widely disliked, and a call for renewed construction of a more satisfactory escort led back to the Bronsteins and their successors.
Modernizations: 1961, Charles Berry, McMorris: + 2 x 6 - 210 Terne III ASWRL
Naval service: No significant events.
Claud Jones 1971
© Ivan Gogin, 2015
