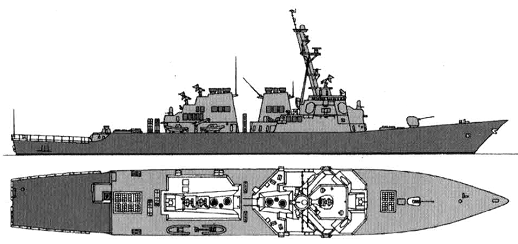

Arleigh Burke 2000
| No | Name | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Flight I | |||||||
| DDG51 | Arleigh Burke | 450 | General Dynamics Bath Iron Works | 6.12.1988 | 16.9.1989 | 4.7.1991 | in service (2020) |
| DDG52 | Barry | 5252 | Northrop Grumman Ship System, Ingalls Div., Pascagoula | 26.2.1990 | 10.5.1991 | 12.12.1992 | in service (2020) |
| DDG53 | John Paul Jones | 451 | General Dynamics Bath Iron Works | 8.8.1990 | 26.10.1991 | 18.12.1993 | in service (2020) |
| DDG54 | Curtis Wilbur | 452 | General Dynamics Bath Iron Works | 12.3.1991 | 16.5.1992 | 19.3.1994 | in service (2020) |
| DDG55 | Stout | 5255 | Northrop Grumman Ship System, Ingalls Div., Pascagoula | 8.8.1991 | 16.10.1992 | 13.8.1994 | in service (2020) |
| DDG56 | John S. McCain | 453 | General Dynamics Bath Iron Works | 3.9.1991 | 26.9.1992 | 2.7.1994 | in service (2020) |
| DDG57 | Mitscher | 5257 | Northrop Grumman Ship System, Ingalls Div., Pascagoula | 12.2.1992 | 7.5.1993 | 10.12.1994 | in service (2020) |
| DDG58 | Laboon | 454 | General Dynamics Bath Iron Works | 23.3.1992 | 20.2.1993 | 18.3.1995 | in service (2020) |
| DDG59 | Russell | 5259 | Northrop Grumman Ship System, Ingalls Div., Pascagoula | 24.7.1992 | 20.10.1993 | 20.5.1995 | in service (2020) |
| DDG60 | Paul Hamilton | 455 | General Dynamics Bath Iron Works | 24.8.1992 | 24.7.1993 | 27.5.1995 | in service (2020) |
| DDG61 | Ramage | 5261 | Northrop Grumman Ship System, Ingalls Div., Pascagoula | 4.1.1993 | 11.2.1994 | 22.7.1995 | in service (2020) |
| DDG62 | Fitzgerald | 456 | General Dynamics Bath Iron Works | 9.2.1993 | 29.1.1994 | 14.10.1995 | in service (2020) |
| DDG63 | Stethem | 5263 | Northrop Grumman Ship System, Ingalls Div., Pascagoula | 11.5.1993 | 17.6.1994 | 21.10.1995 | in service (2020) |
| DDG64 | Carney | 457 | General Dynamics Bath Iron Works | 3.8.1993 | 23.7.1994 | 13.4.1996 | in service (2020) |
| DDG65 | Benfold | 5265 | Northrop Grumman Ship System, Ingalls Div., Pascagoula | 27.9.1993 | 9.11.1994 | 30.3.1996 | in service (2020) |
| DDG66 | Gonzalez | 458 | General Dynamics Bath Iron Works | 3.2.1994 | 18.2.1995 | 12.10.1996 | in service (2020) |
| DDG67 | Cole | 5267 | Northrop Grumman Ship System, Ingalls Div., Pascagoula | 28.2.1994 | 10.2.1995 | 8.6.1996 | in service (2020) |
| DDG68 | The Sullivans | 459 | General Dynamics Bath Iron Works | 27.7.1994 | 12.8.1995 | 19.4.1997 | in service (2020) |
| DDG69 | Milius | 5269 | Northrop Grumman Ship System, Ingalls Div., Pascagoula | 8.8.1994 | 1.8.1995 | 23.11.1996 | in service (2020) |
| DDG70 | Hopper | 460 | General Dynamics Bath Iron Works | 23.2.1995 | 6.1.1996 | 6.9.1997 | in service (2020) |
| DDG71 | Ross | 5271 | Northrop Grumman Ship System, Ingalls Div., Pascagoula | 10.4.1995 | 22.3.1996 | 28.6.1997 | in service (2020) |
| Flight II | |||||||
| DDG72 | Mahan | 461 | General Dynamics Bath Iron Works | 17.8.1995 | 29.6.1996 | 14.2.1998 | in service (2020) |
| DDG73 | Decatur | 462 | General Dynamics Bath Iron Works | 11.1.1996 | 10.11.1996 | 29.8.1998 | in service (2020) |
| DDG74 | McFaul | 5274 | Northrop Grumman Ship System, Ingalls Div., Pascagoula | 26.1.1996 | 18.1.1997 | 25.4.1998 | in service (2020) |
| DDG75 | Donald Cook | 463 | General Dynamics Bath Iron Works | 9.7.1996 | 3.5.1997 | 4.12.1998 | in service (2020) |
| DDG76 | Higgins | 464 | General Dynamics Bath Iron Works | 14.11.1996 | 4.10.1997 | 24.4.1999 | in service (2020) |
| DDG77 | O'Kane | 465 | General Dynamics Bath Iron Works | 8.5.1997 | 28.3.1998 | 23.10.1999 | in service (2020) |
| DDG78 | Porter | 5278 | Northrop Grumman Ship System, Ingalls Div., Pascagoula | 2.12.1996 | 12.11.1997 | 20.3.1999 | in service (2020) |
|
Displacement standard, t |
Flight I: 6731 light Flight II: 6914 light |
|
Displacement full, t |
Flight I: 8850 Flight II: 9033 |
|
Length, m |
135.9 pp 142.0 wl 153.8 oa |
|
Breadth, m |
20.3 |
|
Draught, m |
Flight I: 6.31 hull 9.35 over sonar Flight II: 6.60 hull 9.90 over sonar |
|
No of shafts |
2 |
|
Machinery |
4 General Electric LM-2500-30 gas turbines |
|
Power, h. p. |
105000 |
|
Max speed, kts |
31+ |
|
Fuel, t |
gas turbine oil |
|
Endurance, nm(kts) |
4400(20) |
|
Armament |
DDG51-71: (1 x 61 + 1 x 29) Mk 41 Mod. 0 VLS Tomahawk CruM/Standard SM-2MR Block III SAM/ASROC ASuR (90 Tomahawk RGM-109 + Standard SM-2MR Block III RIM-66 + ASROC RUM-139), 2 x 4 Harpoon SSM (8 RGM-84), 1 x 1 - 127/54 Mk 45 Mod. 1, 2 x 1 - 25/75 Mk 38 Mod. 1 Bushmaster, 2 x 6 - 20/76 Mk 15 Mod. 1 Phalanx CIWS, 2 x 2 - 12.7/90, 2 x 3 - 324 Mk 32 Mod. 14 TT, helicopter deck DDG72-78: (1 x 61 + 1 x 29) Mk 41 Mod. 0 VLS Tomahawk CruM/Standard SM-2MR Block III/Standard SM-2ER Block IV SAM/ASROC ASuR (90 Tomahawk RGM-109 + Standard SM-2MR Block III RIM-66 + Standard SM-2ER Block IV RIM-156 + ASROC RUM-139), 2 x 4 Harpoon SSM (8 RGM-84), 1 x 1 - 127/54 Mk 45 Mod. 1, 2 x 1 - 25/75 Mk 38 Mod. 1 Bushmaster, 2 x 6 - 20/76 Mk 15 Mod. 1 Phalanx CIWS, 2 x 2 - 12.7/90, 2 x 3 - 324 Mk 32 Mod. 14 TT, helicopter deck |
|
Electronic equipment |
DDG51, 53-67: SPS-64(v)9, SPS-67(v)3, SPY-1D, 3x SPG-62, 2x Mk 90 radars, SQQ-89(v)4 sonar suite (SQS-53C(v)1 bow-mounted + SQR-19B(v)1 towed array, Kingfisher mine-avoidance), Mk 46 Mod. 0 optronic director, SLQ-32(v)5 ECM suite, 4x Mk 137 RLs of Mk 36 Mod. 12 SRBOC decoy system, SLQ-25A Nixie torpedo decoy, SLQ-39 decoy buoy launch system, Aegis Mk 7 Baseline 3 CCS DDG52: SPS-64(v)9, SPS-67(v)3, SPY-1D, 3x SPG-62, 2x Mk 90 radars, SQQ-89(v)4 sonar suite (SQS-53C(v)1 bow-mounted + SQR-19B(v)1 towed array, Kingfisher mine-avoidance), Mk 46 Mod. 0 optronic director, SLQ-32(v)5 ECM suite, 4x Mk 137 RLs of Mk 36 Mod. 12 SRBOC decoy system, 4x Mk 53 Nulka decoy RLs, SLQ-25A Nixie torpedo decoy, SLQ-39 decoy buoy launch system, Aegis Mk 7 Baseline 3 CCS DDG68-71: SPS-64(v)9, SPS-67(v)3, SPY-1D, 3x SPG-62, 2x Mk 90 radars, SQQ-89(v)4 sonar suite (SQS-53C(v)1 bow-mounted + SQR-19B(v)1 towed array, Kingfisher mine-avoidance), Mk 46 Mod. 0 optronic director, SLQ-32(v)5 ECM suite, 4x Mk 137 RL of Mk 36 Mod. 12 SRBOC decoy system, SLQ-25A Nixie torpedo decoy, SLQ-39 decoy buoy launch system, Aegis Mk 7 Baseline 3 CCS DDG72-78: SPS-64(v)9, SPS-67(v)3, SPY-1D, 3x SPG-62, 2x Mk 90 radars, SQQ-89(v)4 sonar suite (SQS-53C(v)1 bow-mounted + SQR-19B(v)1 towed array, Kingfisher mine-avoidance), Mk 46 Mod. 0 optronic director, SLQ-32(v)3, SRS-1 ECM suites, 4x Mk 137 RL of Mk 36 Mod. 12 SRBOC decoy system, SLQ-25A Nixie torpedo decoy, SLQ-39 decoy buoy launch system, Aegis Mk 7 Baseline 3 CCS |
|
Complement |
337 |
Project history: This class was planned to complement the Ticonderoga class, and to replace the ageing missile destroyers. Compared to a Ticonderoga class they have three illuminators and the entire SPY-1 radar is concentrated in a single deckhouse. Their CIC lacks the unit commander's station of the cruiser. They are also better protected than the cruisers, with steel rather than aluminium upper works, and they carry about 130t of Kevlar armour. Their sides are sloped to reduce their radar cross-section. In 1984 it was hoped that each (after the fifth production ship) would cost about two-thirds as much as a Ticonderoga, but would offer three-quarters her anti-aircraft potential.
They lack a helicopter hangar because when they were designed it seemed unlikely that there would ever be enough LAMPS III helicopters to provide one per escort, and also because the ships they replaced had no helicopter facilities at all. They can accept a helicopter on board, and they have LAMPS data link and data processing facilities.
By the late 1980s, the navy planned to build these ships at a steady rate of four or five per year, introducing changes only after several identical ships had been built. At that time a Flight 3 version, which would have had a hangar, was planned. The advantage of steady production would have been steady fleet modernization, as in the submarine fleet.
When funds tightened dramatically, Flight 3 was abandoned in favour of studies of less expensive versions called DDV (DD variant), for example without the SPY-1 radar. Really Flight II (DDG72-78) is a slightly modified version of the original Flight I. Flight IIA (DDG79 and beyond) has been modified to provide a pair of LAMPS III hangars aft, with the helicopter deck beyond. These ships also have a stern wedge, for improved propulsive efficiency. In this version the underway replenishment crane is eliminated from the vertical launcher groups, so that the bow group has sixty-four rather than sixty-one cells, the after group thirty-two rather than twenty-nine, for a total of ninety-six rather than ninety missiles. This version was lengthened by 1.52m by the stern, but the original plan to add a substantial parallel midbody was dropped.
Modernizations: 2008-2013, John Paul Jones, Curtis Wilbur, John S. McCain, Russell, Paul Hamilton, Fitzgerald, Stethem, Carney, Benfold, Cole, The Sullivans, Milius, Hopper, Ross, Decatur, McFaul, Donald Cook, Higgins, O'Kane, Porter: BMD update (ballistic missile defence) + ability to use Standard SM-3 RIM-161 SAM
2011, John Paul Jones; 2015, Barry, Benfold; 2016-2017, Arleigh Burke, Mischer, Milius; late 2010s, all others (as planned): - 1 x 1 - 127/54, 2 x 6 - 20/76, SQQ-89(v)4 sonar suite, 4x Mk 137 RLs of Mk 36 Mod. 12 SRBOC decoy system, SLQ-25 Nixie torpedo decoy, Aegis Mk 7 Baseline 3 CCS; + ability of use Standard SM-6 RIM-174 SAM, ESSM SAM capability (4 RIM-162 per one cell), 1 x 1 - 127/62 Mk 45 Mod. 4, 2 x 6 - 20/76 Phalanx Mk 15 Mod. 1B, SEWIP E/O IR system, SQQ-89(v)15 sonar suite, 4x Mk 53 Nulka decoy launchers, SLX-1 torpedo defence system, Aegis Mk 7 Baseline 12, JMCIS, CEC USG-2 CCS
late 2010s, some: - 2 x 1 - 25/75, 2 x 2 - 12.7/90; + 2 x 1 - 30/80 Mk 46, 4 x 1 - 12.7/90
late 2010s many: - SPS-64(v)9 radar, Mk 46 Mod.0 e/o system; + SPS-73 radar, Mk 46 Mod.1 e/o system, TRAFS torpedo detector
2017, Milius: - Aegis Mk 7 Basseline 12 CCS; + Aegis Mk 7 Baseline 9C1 CCS
Naval service: Gonzalez ran aground 12.11.1996 near St. Martin in the Caribbean, damaging the sonar dome, propellers and shaft struts, repair was completed in September 1997. Cole was heavily damaged 12.10.2000 by a terrorist attack at Aden (Yemen), with 17 killed, repair was completed in April 2002. Porter was damaged in a collision with Japanese tanker 12.8.2012. Fitzgerald was badly damaged in collision with Philippine containership 17.6.2017. John S. McCain was badly damaged in collision with tanker 21.8.2017 off Malacca.

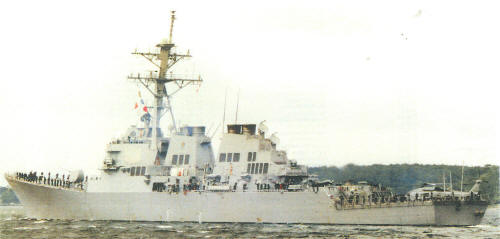

Ross 2003

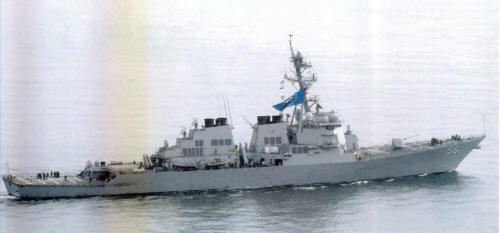

John S. McCain 2008
