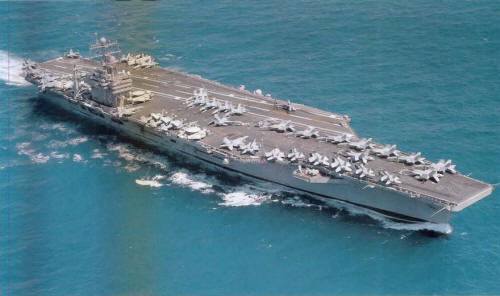

Theodore Roosevelt 2000

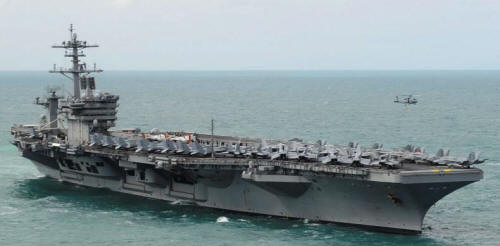

Theodore Roosevelt 2010
| No | Name | Yard No | Builder | Laid down | Launched | Comm | Fate |
| CVN71 | Theodore Roosevelt | 624 | Newport News SB | 31.10.1981 | 27.10.1984 | 25.10.1986 | in service (2020) |
| CVN72 | Abraham Lincoln | 630 | Newport News SB | 3.11.1984 | 13.2.1988 | 11.11.1989 | in service (2020) |
| CVN73 | George Washington | 631 | Newport News SB | 25.8.1986 | 21.7.1990 | 4.7.1992 | in service (2020) |
| CVN74 | John C. Stennis | 641 | Newport News SB | 13.3.1991 | 11.11.1993 | 9.12.1995 | in service (2020) |
| CVN75 | Harry S. Truman (ex-United States) | 642 | Newport News SB | 29.11.1993 | 7.9.1996 | 25.7.1998 | in service (2020) |
|
Displacement standard, t |
CVN71: 80753 CVN72: 81147 CVN73: 81083 CVN74: 80085 CVN75: 78453 |
|
Displacement full, t |
CVN71: 103658 CVN72: 104242 CVN73: 104208 CVN74: 103020 CVN75: 101390 |
|
Length, m |
317.1 wl 332.9 oa |
|
Breadth, m |
40.9 wl 78.3 ext |
|
Draught, m |
11.7 - 11.9 |
|
No of shafts |
4 |
|
Machinery |
4 sets Westinghouse geared steam turbines, 2 Westinghouse A4W/A1G reactors |
|
Power, h. p. |
280000 |
|
Max speed, kts |
32 |
|
Fuel, t |
nuclear |
| Endurance, nm(kts) | practically unlimited |
|
Armour, mm |
presumably belt summary: 135, flight deck: 45, hangar deck: 50, main deck: 56 + Kevlar protection of vital spaces |
|
Armament |
CVN71: 3 x 8 Sea Sparrow SAM (24 RIM-7), 4 x 6 - 20/76 Mk 15 Phalanx, 4 x 1 - 12.7/90, ~90 aircraft (F-4, F-14, F/A-18 fighters, A-4, A-6, A-7, AV-8 attackers, RF-4, OV-10 recon planes, EA-3, EA-6 ECM planes, E-2 EW planes, S-3 ASW planes, KA-3, EKA-3, KA-6 tankers, C-2 cargo planes, AH-1, CH-3, CH-46, CH-53, HH-1, HH-3, MH-53, RH-53, SH-2, SH-3, SH-60, UH-1, UH-2, UH-3, UH-46 helicopters) CVN72: 3 x 8 Sea Sparrow SAM (24 RIM-7), 4 x 6 - 20/76 Mk 15 Phalanx, 4 x 1 - 12.7/90, ~90 aircraft (F-4, F-14, F/A-18 fighters, A-4, A-6, A-7, AV-8 attackers, RF-4, OV-10 recon planes, EA-3, EA-6 ECM planes, E-2 EW planes, S-3 ASW planes, KA-3, EKA-3, KA-6 tankers, C-2 cargo planes, AH-1, CH-3, CH-46, CH-53, HH-1, HH-3, MH-53, RH-53, SH-2, SH-3, SH-60, UH-1, UH-2, UH-3, UH-46 helicopters) CVN73: 3 x 8 Sea Sparrow SAM (24 RIM-7), 4 x 6 - 20/76 Mk 15 Phalanx, 4 x 1 - 12.7/90, ~90 aircraft (F-14, F/A-18 fighters, A-4, A-6, AV-8 attackers, OA-4, OV-10 recon planes, EA-6, ES-3 ECM planes, E-2 EW planes, S-3 ASW planes, KA-6 tankers, C-2 cargo planes, AH-1, CH-3, CH-46, CH-53, HH-1, HH-3, HH-60, MH-53, RH-53, SH-2, SH-3, SH-60, UH-1, UH-2, UH-3, UH-46 helicopters) CVN74: 3 x 8 Sea Sparrow SAM (24 RIM-7), 4 x 6 - 20/76 Mk 15 Phalanx, 10 x 1 - 12.7/90, ~90 aircraft (F-14, F/A-18 fighters, A-6, AV-8 attackers, OA-4 recon planes, EA-6, ES-3 ECM planes, E-2 EW planes, S-3 ASW planes, KA-6 tankers, C-2 cargo planes, AH-1, CH-3, CH-46, CH-53, HH-1, HH-3, HH-60, MH-53, RH-53, SH-2, SH-3, SH-60, UH-1, UH-2, UH-3, UH-46 helicopters) CVN75: 3 x 8 Sea Sparrow SAM (24 RIM-7), 4 x 6 - 20/76 Mk 15 Phalanx, 10 x 1 - 12.7/90, ~90 aircraft (F-14, F/A-18 fighters, AV-8 attackers, OA-4 recon planes, EA-6, ES-3 ECM planes, EW-2 EW planes, S-3 ASW planes, C-2 cargo planes, AH-1, CH-3, CH-46, CH-53, HH-1, HH-3, HH-60, MH-53, RH-53, SH-2, SH-3, SH-60, UH-1, UH-2, UH-3, UH-46 helicopters) |
| Sensors |
CVN71: SPS-49(v)5, SPS-48E, SPS-67(v)1, 2x SPN-42A, SPN-43B, SPN-44, SPS-64(v)9, SPS-73, 6x Mk 95, 4x Mk 90, Mk 23 TAS radars, SLQ-29 ECM suite, 8x Mk 36 SRBOC decoy RL, SLQ-25A torpedo decoy, ACDS, JDTS, POST, CVIC, NTCS-A, ASCAC CCS CVN72: SPS-49(v)5, SPS-48E, SPS-67(v)1, SPN-43B, SPN-44, 2x SPN-46, SPS-64(v)9, SPS-72, 6x Mk 95, 4x Mk 90, Mk 23 TAS radars, SLQ-32(v)4 ECM suite, 8x Mk 36 SRBOC decoy RL, SLQ-25A torpedo decoy, ACDS, JDTS, POST, CVIC, NTSC-A, ASCAC CCS CVN73-75: SPS-49(v)5, SPS-48E, SPS-67(v)1, SPN-43B, SPN-44, 2x SPN-46, SPS-64(v)9, SPS-73, 6x Mk 95, 4x Mk 90, Mk 23 TAS radars, SLQ-32(v)4 ECM suite, 8x Mk 36 SRBOC decoy RL, SLQ-25A torpedo decoy, ACDS, JDTS, POST, CVIC, NTSC-A, ASCAC CCS |
|
Complement |
6072 |
Aircraft facilities CVN71 (fd - 22,268 m², ha - 6,860 m² / 55,357 m³): Flight deck: 331.7 x 76.8m. Hangar: 208.5 x 32.9 x 8.07 m. There are 4 deck-edge elevators (47.6t, 21.4/25.9 x 15.9m). There are 4 C13 Mod.1 catapults. Aircraft fuel stowage: 10 220 000 l of JP-5 jet fuel. Aviation ordnance stowage is 1954t.
CVN72-75 (fd - 22,268 m², ha - 6,860 m² / 55,357 m³): Flight deck: 331.7 x 76.8m. Hangar: 208.5 x 32.9 x 8.07 m. There are 4 deck-edge elevators (47.6t, 21.4/25.9 x 15.9m). There are 4 C13 Mod.2 catapults. Aircraft fuel stowage: 10 220 000 l of JP-5 jet fuel. Aviation ordnance stowage is 1954t.
| Year | fighters | attackers | recon, EW, ECM | ASW and auxiliary | helicopters |
| 1991, all | 24 F-14A | 24 F/A-18A or A-7E, 10 A-6E | 4 EA-6B, 4 E-2C | 10 S-3A, 4 KA-6D | 6 SH-3G/H |
| 2005, all | 36 F/A-18C, 14 F-14 | --- | 4 EA-6B, 4 E-2C, 2 ES-3 | 8 S-3B, 2 C-2 | 6 SH-60 |
| 2010, all | 55 F/A-18 | --- | 4 EA-6B, 4E-2C | 2 C-2A | 4 SH-60F, 2 HH-60H |
| 2016, standard | 14 F/A-18A/D, 30 F/A-18E/F | --- | 6 EA-18G, 6 E-2C/D | 2 C-2A | 10 MH-60R/S |
| 2016, Theodore Roosevelt (CVW-17) | 24 F/A-18E, 24 F/A-18F | --- | 4 EA-18G, 4 E-2C | 2 C-2A | 6 MH-60S, 6 MH-60R |
| 2016, John C. Stennis (CVW-9) | 36 F/A-18E, 12 F/A-18F | --- | 4 EA-18G, 4 E-2C | 2 C-2A | 6 MH-60S, 6 MH-60R |
| 2016, Harry S. Truman (CVW-7) | 12 F/A-18C, 24 F/A-18E, 12 F/A-18F | --- | 4 EA-18G, 4 E-2C | 2 C-2A | 6 MH-60S, 6 MH-60R |
| 2018, Theodore Roosevelt (CVW-17) | 12 F/A-18C Hornet, 12 F/A-18E Super Hornet, 24 F/A-18F Super Hornet | --- | 6 EA-18G Growler, 6 E-2C Hawkeye | 2 C-2A Greyhound | 6 MH-60S Knighthawk, 6 MH-60R Seahawk |
| 2018, Abraham Lincoln (CVW-7) | 36 F/A-18E Super Hornet, 12 F/A-18F Super Hornet | --- | 6 EA-18G Growler, 6 E-2D Hawkeye | 2 C-2A Greyhound | 6 MH-60S Knighthawk, 6 MH-60R Seahawk |
| 2018, John C. Stennis (CVW-9) | 36 F/A-18E Super Hornet, 12 F/A-18F Super Hornet | --- | 6 EA-18G Growler, 6 E-2C Hawkeye | 2 C-2A Greyhound | 6 MH-60S Knighthawk, 6 MH-60R Seahawk |
| 2018, Harry S. Truman (CVW-1) | 24 F/A-18E Super Hornet, 24 F/A-18F Super Hornet | --- | 6 EA-18G Growler, 6 E-2D Hawkeye | 2 C-2A Greyhound | 6 MH-60S Knighthawk, 6 MH-60R Seahawk |
Project history: With these ships the US Navy returned to building nuclear carriers of Enterprise size. They incorporate a new two-reactor power plant, developed from a project for a single reactor destroyer/frigate plant, and so have even more internal space than the huge Enterprise, in addition they incorporate the more economical (in terms of space) torpedo protection system of the Kennedy. Their general arrangement and electronic suit also duplicate those of Kennedy, and they were armed with 3 Sea Sparrow launchers for self-defence. Theodore Roosevelt sub-class are considerably improved, particularly in self-defence (Kevlar over vitals, and better hull protection). A reduction in aviation ordnance (to 1954 tons) presumably reflects increased volume devoted to protection. Otherwise these ships are similar to the CVN68 class, with much the same hull envelope.
Ship protection: Armour protection consists of 3 protected decks (flight, hangar and lower decks) and vertical armour (side armour and longitudinal bulkheads). Also there is a box-shaped protection of magazines and vital zones. Underwater protection includes 5 longitudinal bulkheads (4th bulkhead is 76mm-thick). Bottom is also protected. Also vital spaces have 63mm Kevlar protection.
Modernizations: 1996, George Washington; early 2000s, Abraham Lincoln, John C. Stennis, Harry S. Truman: + JSIPS-N CCS
1996, Theodore Roosevelt: + JSIPS-N CCS
1998, Theodore Roosevelt: - 2x SPN-42A radars, SLQ-29 ECM; + 2x SPN-46 radars, SLQ-32(v)4 ECM
2005, George Washington: - 1 x 8 Sea Sparrow SAM, 2 x 6 - 20/76, 2x Mk 95, Mk 90, Mk 23 TAS radars; + 2 x 21 RAM SAM (42 RIM-116A), SPQ-9B radar, SLQ-20B ECM signal processor, SLX-1 torpedo-protection system
2006, Harry S. Truman; 2008, Abraham Lincoln: - 1 x 8 Sea Sparrow SAM, 1 x 6 - 20/76, 2x Mk 95, Mk 90 radars; + 2 x 21 RAM SAM (42 RIM-116A), SLQ-20B ECM signal processor, SLX-1 torpedo-protection system, CEC USG-2 CCS
11/2007, Theodore Roosevelt; 2007, John C. Stennis: - 1 x 8 Sea Sparrow SAM, 1 x 6 - 20/76, 2x Mk 95, Mk 90, Mk 23 TAS radars; + 2 x 21 RAM SAM (42 RIM-116A), SPQ-9B radar, SLQ-20B ECM signal processor, SLX-1 torpedo-protection system, CEC USG-2 CCS
2010, George Washington: + CEC USG-2 CCS
2010-2014, all: - 2 x 8 Sea Sparrow SAM; + 2 x 8 ESSM SAM (16 RIM-162), SSDS Mk 2, ADMACS CCS
(8/2009-6/2013), Theodore Roosevelt; (7/2013-5/2017), Abraham Lincoln: top two levels of island were completely replaced, new antenna mast and new radar tower were installed.
Naval service: No significant events.

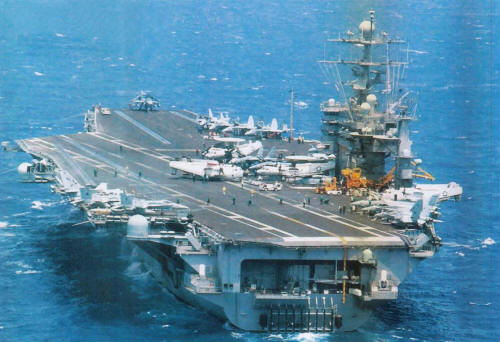

Harry S. Truman 2004
Abraham Lincoln 2008
Theodore Roosevelt 2015
