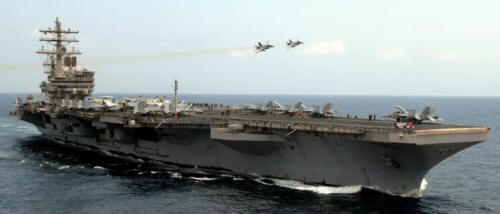

Ronald Reagan 2010

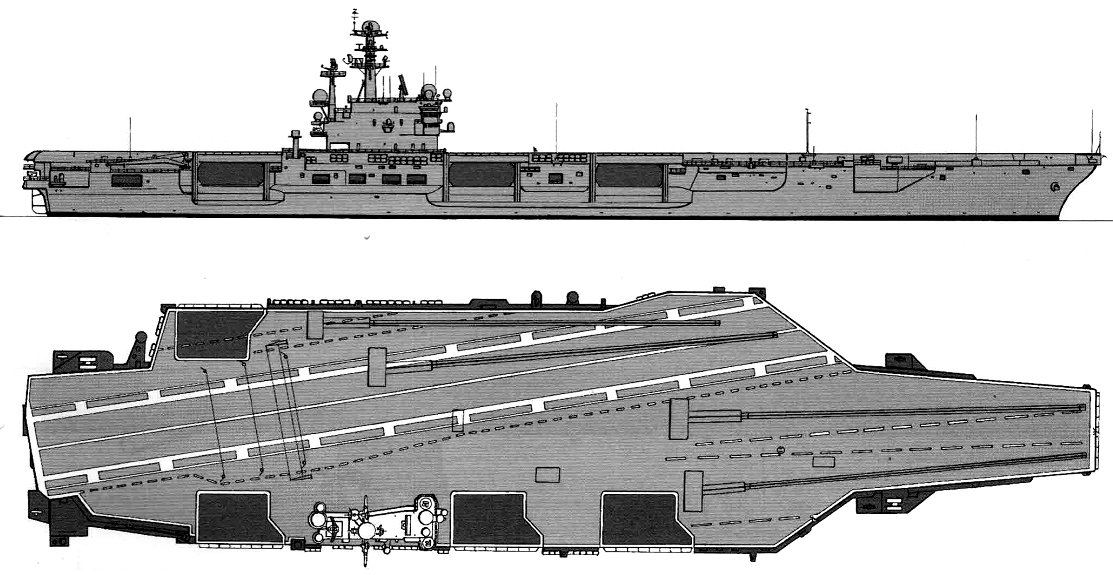

George H. W. Bush 2010
| No | Name | Yard No | Builder | Laid down | Launched | Comm | Fate |
| CVN76 | Ronald Reagan | 645 | Newport News SB | 12.2.1998 | 10.3.2001 | 12.7.2003 | in service (2020) |
| CVN77 | George H. W. Bush | Newport News SB | 19.5.2003 | 9.10.2006 | 10.1.2009 | in service (2020) |
|
Displacement standard, t |
77607 |
|
Displacement full, t |
98235 |
|
Length, m |
CVN76: 317.0 wl 334.7 oa CVN77: 317.1 wl 332.9 oa |
|
Breadth, m |
40.9 wl 78.3 ext |
|
Draught, m |
12.5 |
|
No of shafts |
4 |
|
Machinery |
4 sets Westinghouse geared steam turbines, 2 Westinghouse/General Electric A4W/A1G reactors |
|
Power, h. p. |
280000 |
|
Max speed, kts |
31 |
|
Fuel, t |
nuclear |
| Endurance, nm(kts) | practically unlimited |
|
Armour, mm |
presumably belt summary: 135, flight deck: 45, hangar deck: 50, main deck: 56 + Kevlar protection of vital spaces |
|
Armament |
CVN76: 2 x 8 Sea Sparrow SAM (24 RIM-7), 2 x 21 RAM SAM (42 RIM-116A), 3 x 6 - 20/76 Mk 15 Phalanx, ~90 aircraft (F-14, F/A-18 fighters, AV-8 attackers, EA-6 ECM planes, E-2 EW planes, S-3 ASW planes, C-2 cargo planes, AH-1, CH-46, CH-53, HH-1, HH-60, MH-53, MH-60, SH-60, UH-1, UH-3, UH-46, UH-60 helicopters) CVN77: 2 x 8 Sea Sparrow SAM (24 RIM-7), 2 x 21 RAM SAM (42 RIM-116A), 3 x 6 - 20/76 Mk 15 Phalanx, ~90 aircraft (F-14, F/A-18 fighters, AV-8 attackers, EA-6 ECM planes, E-2 EW planes, S-3 ASW planes, C-2 cargo planes, AH-1, CH-46, CH-53, HH-1, HH-60, MH-53, MH-60, SH-60, UH-1, UH-3, UH-46, UH-60 helicopters) |
| Sensors |
CVN76: SPS-49A, SPS-48E, SPS-67(v)1, SPN-43B, SPN-44, 2x SPN-46, SPS-64(v)9, SPS-73, 4x Mk 95, 3x Mk 90, SPQ-9B radars, SLQ-32(v)4, SLQ-20B ECM suites, 8x Mk 36 SRBOC decoy RL, SLQ-25A torpedo decoy, CEC USG-2, ICDS, JDTS, POST, CVIC CCS CVN77: SPS-49A(v)1, SPS-48E, SPS-67(v)1, SPN-43B, SPN-44, 2x SPN-46, SPS-64(v)9, SPS-73, 4x Mk 95, 3x Mk 90, SPQ-9B radars, SLQ-32(v)4, SLQ-20B ECM suites, 8x Mk 36 SRBOC decoy RL, SLQ-25A SSTDS torpedo decoy, CEC USG-2, ICDS, JDTS, POST, CVIC CCS |
|
Complement |
5600 |
Aircraft facilities (fd - 22,268 m², ha - 6,860 m² / 55,357 m³): Flight deck: 331.7 x 76.8m. Hangar: 208.5 x 32.9 x 8.07 m. There are 4 deck-edge elevators (47.6t, 21.4/25.9 x 15.9m). There are 4 C13 Mod.2 catapults. Aircraft fuel stowage: 12 869 000 l of JP-5 jet fuel. Aviation ordnance stowage is 1954t.
| Year | fighters | recon, EW, ECM | ASW and auxiliary | helicopters |
| 2005, standard | 36 F/A-18C, 14 F-14 | 4 EA-6B, 4 E-2C, 2 ES-3 | 8 S-3B, 2 C-2 | 6 SH-60 |
| 2010, standard | 55 F/A-18 | 4 EA-6B, 4E-2C | 2 C-2A | 4 SH-60F, 2 HH-60H |
| 2016, standard | 14 F/A-18A/D, 30 F/A-18E/F | 6 EA-18G, 6 E-2C/D | 2 C-2A | 10 MH-60R/S |
| 2016, Ronald Reagan (CVW-5) | 36 F/A-18E, 12 F/A-18F | 4 EA-18G, 4 E-2C | 2 C-2A | 6 MH-60S, 6 MH-60R |
| 2016, George H. W. Bush (CVW-8) | 12 F/A-18C, 24 F/A-18E, 12 F/A-18F | 4 EA-18G, 4 E-2C | 2 C-2A | 6 MH-60S, 6 MH-60R |
| 2018, Ronald Reagan (CVW-5) | 36 F/A-18E Super Hornet, 12 F/A-18F Super Hornet | 6 EA-18G Growler, 6 E-2D Hawkeye | 2 C-2A Greyhound | 6 MH-60S Knighthawk, 6 MH-60R Seahawk |
| 2018, George H. W. Bush (CVW-8) | 12 F/A-18C Hornet, 24 F/A-18E Super Hornet, 12 F/A-18F Super Hornet | 6 EA-18G Growler, 6 E-2C Hawkeye | 2 C-2A Greyhound | 6 MH-60S Knighthawk, 6 MH-60R Seahawk |
Project history: Intermediate design between Nimitz class and new CVN78. CVN77 has integrated information systems, open-system architecture for computers and combat systems, fiber-optic cabling and zonal electrical distribution, multifunctional embedded antennas and composite construction for the island. Concepts and systems are employed to reduce the lifetime cost for the ship by about 20% and to reduce the crew by 500. Differed from previous sister-ships, they have a prominent, 10.4m-long bow bulb to the hull, while the island superstructure is one deck lower than in earlier ships, and supports two masts. The ships have improved air-conditioning systems and berthing facilities. Instead of previous ships, they have 3 but not 4 arrester wires.
Ship protection (presumably): Armour protection consists of 3 protected decks (flight, hangar and lower decks) and vertical armour (side armour and longitudinal bulkheads). Also there is a box-shaped protection of magazines and vital zones. Underwater protection includes 5 longitudinal bulkheads (4th bulkhead is 76mm-thick). Bottom is also protected. Also vital spaces have 63mm Kevlar protection.
Modernizations: late 2000s, Ronald Reagan: - SPS-49A radar; + SPS-49A(v)1 radar
early 2010s, both: - 2 x 8 Sea Sparrow SAM, 3 x 6 - 20/76, SPS-73, SPS-64(v)9, 3x Mk 90 radars, SLQ-25 torpedo decoy; + 2 x 8 ESSM SAM (16 RIM-162), 4 x 1 - 12.7/90, SPS-73(v)12 radar, SLX-1 anti-torpedo system
Naval service: No significant events.

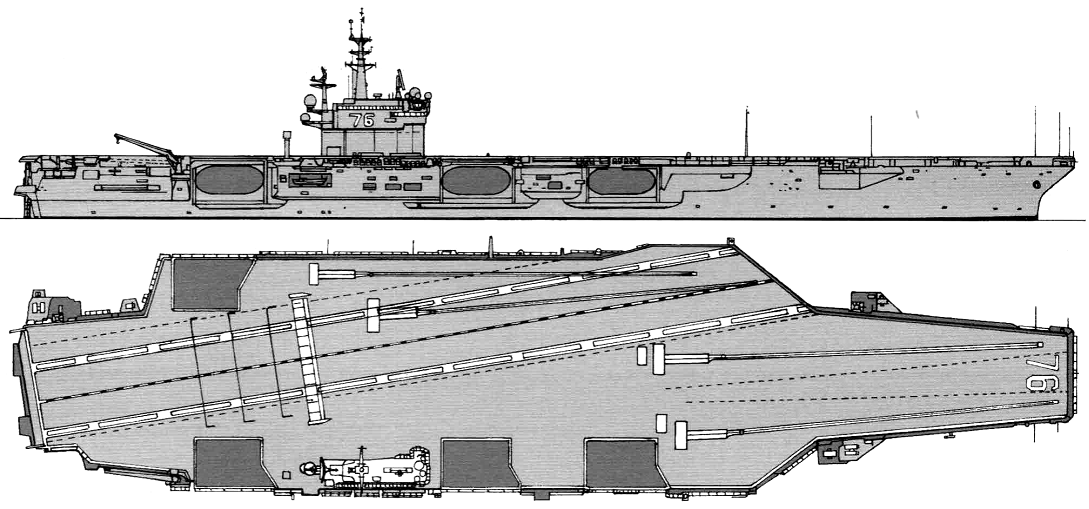

Ronald Reagan 2009

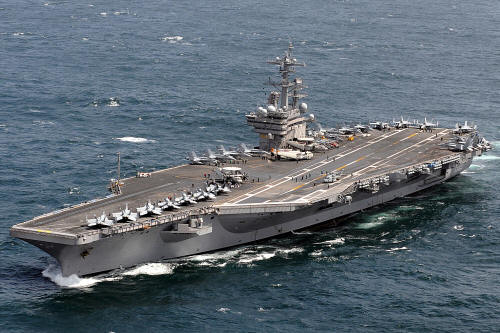

George H. W. Bush 2016
