RANGER aircraft carrier (1934)

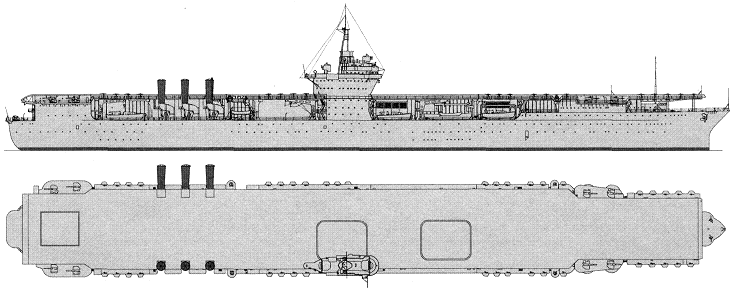

Ranger 1940

No Name Yard No Builder Laid down Launched Comm Fate
CV4 Ranger 353 Newport News 26.9.1931 25.2.1933 4.7.1934 stricken 10.1946


Displacement standard, t

14575

Displacement full, t

17577

Length, m

222.5 wl 234.4 oa

Breadth, m

24.4 wl 33.4 oa

Draught, m

6.83 full load

No of shafts

2

Machinery

2 sets Curtis (HP) / Parsons (LP) geared steam turbines, 6 Babcock & Wilcox boilers

Power, h. p.

53500

Max speed, kts

29.2

Fuel, t

oil 1567 - 2350

Endurance, nm(kts) 7000 (15)

Armour, mm

belt: 51 (aircraft ammunition holds only), bulkheads: 51, deck: 25

Armament

8 x 1 - 127/25 Mk 10.11.13, 40 x 1 - 12.7/90, 76 aircraft (F4B, FF fighters, F8C-4, F11C, BFC, BF2C Goshawk fighters - diving bombers, BM diving / torpedo bombers, T4M, TG torpedo bombers - reconnaissance planes, O2U Corsair, O3U, SU, SF reconnaissance planes)

Complement

1788

Aircraft facilities (fd - 5,662 m², ha - 3,330 m² / 19,216 m³): Flight deck: 216.1 x 26.2 m. Hangar: 168.2 x 19.8 x 5.77 m. There were 3 elevators (fore and mid: 15.8x12.5m, 6.8t and aft: 12.1x10.6m, 4.1t). Aircraft fuel stowage: 514 400 l.

Year fighters dive bombers torpedo bombers seaplanes
6.1936 30 F2F 30 BM and BG, 15 SBU --- ---
1941 18 F4F-3 Wildcat 37 SB2U-1/2 --- 4 SOC-1, 2 J2F-1
11.1942 54 F4F Wildcat 18 SBD Dauntless 1 TBF Avenger ---
10.1943 27 F4F Wildcat 27 SBD Dauntless 18 TBF Avenger ---

Project history: First USN ship originally laid down as an aircraft carrier. Design was developed practically without operating experience of carrier aircraft, rather small (in comparison with Lexington class) dimensions were defined by desire to have largest number of aircraft carriers within the limits of total displacement, contemplated by Washington Treaty of 1922. The decision on building of CV4 with 13800t displacement was accepted in 1930. Originally it was supposed, that it will be flush-deck ship without island superstructure, but during a building design was changed. Six folding smoke tubes (three from each side) became prominent feature of ship. Fitting of originally planed turbo-electric machinery have refused in favour of more compact geared turbines.

As a whole Ranger was appeared not successful: small dimensions and an irrational elevators arrangement strongly inhibited air group action. Also she suffered by insufficient seaworthiness, low stability and absence of underwater protection.

Ship protection:  Aircraft armament holds had box-shaped vertical protection with 51mm belt and 51mm bulkheads. Flight deck over hangar had 25mm thickness.

Modernizations: 9.1941: - 16 x 1 - 12.7/90; + 6 x 4 - 28/75 Mk 1

8/1942: + 30 x 1 - 20/70 Mk 4

1/1943: flight deck was lengthened to 228.6 m  (fd - 5,989 m², ha - 3,330 m² / 19,216 m³); - 6 x 4 - 28/75, 24 x 1 - 12.7/90; + 6 x 4 - 40/56 Mk 1.2, 16 x 1 - 20/70 Mk 4, SC-2, SP, 2x Mk 4 radars

autumn 1943: - 6 x 1 - 20/70

7/1944: - 8 x 1 - 127/25, 2x Mk 4 radars; + 1 catapult H-II-1, SM radar

1/1946, CV4 Ranger: 6 x 4 - 40/60 Mk 2, 40 x 1 - 20/70 Mk 10, 1 catapult, 76 aircraft, SC-2, SM, SP radars

Naval service: Ranger was used as training carrier since 4.1944.

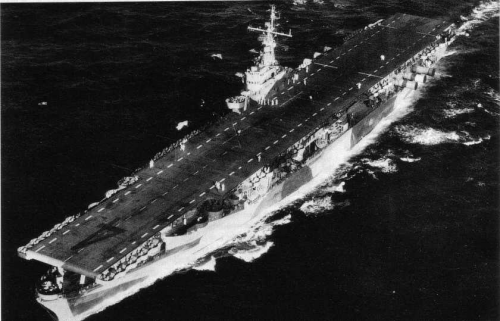

Ranger 1944
