UNITED STATES NAVY (UNITED STATES OF AMERICA)

CRUISERS

VESUVIUS dynamite cruiser (1890)

Vesuvius 1890

No Name Yard No Builder Laid down Launched Comm Fate
  Vesuvius   Cramp, Philadelphia 9/1887 28.4.1888 7.6.1890 experimental torpedo vessel 1898, sold 4.1922


Displacement normal, t

929

Displacement full, t



Length, m

76.9

Breadth, m

8.06

Draught, m

2.74 mean

No of shafts

2

Machinery

VTE, 4 cylindrical boilers

Power, h. p.

3200

Max speed, kts

20

Fuel, t

coal 152

Endurance, nm(kts)
Armour, mm steel; CT: 25

Armament

3 - 381/44 Zalinsky pneumatic guns, 3 x 1 - 47/40 Hotchkiss Mk I

Complement

70

Project history: Authorized under the Act of 3.8.1886 as a 'dynamite-gun cruiser'; a second such ship authorized under the Act of 2.3.1889 was never built. The 381mm Zalinsky pneumatic gun was 16.8m long and the full calibre shell weighed 445kg with a 227kg dynamite warhead. The range was 1500-1600m, but three times this could be reached with sub-calibre shells. In Vesuvius the guns were fixed at 18° elevation and trained by moving ship. A total of 30 shells was carried.

Ship protection: CT was protected by 25mm plating.

Modernizations: 1898: - 3 - 381/44; + TTs

Naval service: She bombarded Santiago in 1898 but accuracy was very poor, and the pneumatic guns were later removed, and Vesuvius used as an experimental torpedo vessel.

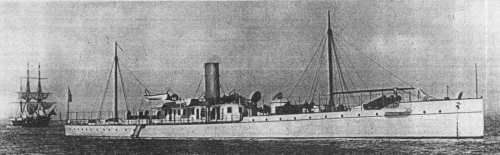

Vesuvius
