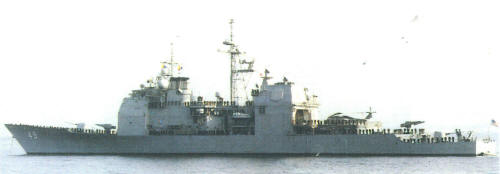

Ticonderoga 1990

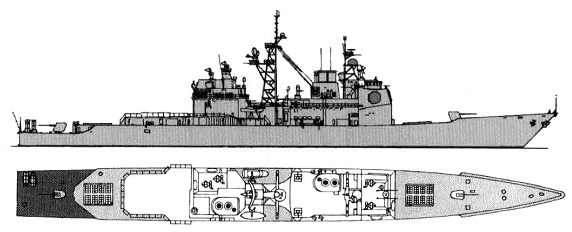

Bunker Hill 1990

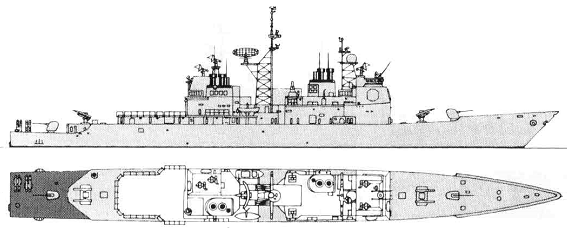

Bunker Hill 2010
| No | Name | Yard No | Builder | Laid down | Launched | Comm | Fate |
| CG47 | Ticonderoga | 4701 | Ingalls SB, Pascagoula | 21.1.1980 | 25.4.1981 | 22.1.1983 | stricken 9.2004 |
| CG48 | Yorktown | 4901 | Ingalls SB, Pascagoula | 19.10.1981 | 17.1.1983 | 4.7.1984 | stricken 12.2004 |
| CG49 | Vincennes | 4501 | Ingalls SB, Pascagoula | 19.10.1982 | 14.1.1984 | 6.7.1985 | stricken 6.2005 |
| CG50 | Valley Forge | 4502 | Ingalls SB, Pascagoula | 14.4.1983 | 23.6.1984 | 18.1.1986 | stricken 8.2004 |
| CG51 | Thomas S. Gates | 420 | Bath Iron Works | 31.8.1984 | 14.12.1985 | 22.8.1987 | stricken 12.2005 |
| CG52 | Bunker Hill | 4503 | Ingalls SB, Pascagoula | 11.1.1984 | 11.3.1985 | 20.9.1986 | in service (2020) |
| CG53 | Mobile Bay | 4504 | Ingalls SB, Pascagoula | 5.6.1984 | 22.8.1985 | 21.2.1987 | in service (2020) |
| CG54 | Antietam | 4505 | Ingalls SB, Pascagoula | 15.11.1984 | 14.2.1986 | 6.6.1987 | in service (2020) |
| CG55 | Leyte Gulf | 4506 | Ingalls SB, Pascagoula | 18.3.1985 | 20.6.1986 | 26.9.1987 | in service (2020) |
| CG56 | San Jacinto | 4507 | Ingalls SB, Pascagoula | 24.7.1985 | 14.11.1986 | 23.1.1988 | in service (2020) |
| CG57 | Lake Champlain | 4510 | Ingalls SB, Pascagoula | 3.3.1986 | 3.4.1987 | 12.8.1988 | in service (2020) |
| CG58 | Philippine Sea | 421 | Bath Iron Works | 8.5.1986 | 12.7.1987 | 18.3.1989 | in service (2020) |
| CG59 | Princeton | 4511 | Ingalls SB, Pascagoula | 15.10.1986 | 2.10.1987 | 11.2.1989 | in service (2020) |
| CG60 | Normandy | 422 | Bath Iron Works | 7.4.1987 | 19.3.1988 | 9.12.1989 | in service (2020) |
| CG61 | Monterey | 423 | Bath Iron Works | 19.8.1987 | 23.10.1988 | 16.6.1990 | in service (2020) |
| CG62 | Chancellorsville | 4513 | Ingalls SB, Pascagoula | 24.6.1987 | 15.7.1988 | 4.11.1989 | in service (2020) |
| CG63 | Cowpens | 424 | Bath Iron Works | 23.12.1987 | 11.3.1989 | 9.3.1991 | in service (2020) |
| CG64 | Gettysburg | 425 | Bath Iron Works | 17.8.1988 | 22.7.1989 | 22.6.1991 | in service (2020) |
| CG65 | Chosin | 4515 | Ingalls SB, Pascagoula | 22.7.1988 | 1.9.1989 | 12.1.1991 | in service (2020) |
| CG66 | Hué City | 4516 | Ingalls SB, Pascagoula | 20.2.1989 | 1.6.1990 | 14.9.1991 | in service (2020) |
| CG67 | Shiloh | 426 | Bath Iron Works | 1.8.1989 | 8.9.1990 | 18.7.1992 | in service (2020) |
| CG68 | Anzio | 4517 | Ingalls SB, Pascagoula | 21.8.1989 | 2.11.1990 | 2.5.1992 | in service (2020) |
| CG69 | Vicksburg | 4519 | Ingalls SB, Pascagoula | 30.5.1990 | 2.8.1991 | 14.11.1992 | in service (2020) |
| CG70 | Lake Erie | 427 | Bath Iron Works | 6.3.1990 | 13.7.1991 | 10.5.1993 | in service (2020) |
| CG71 | Cape St. George | 4520 | Ingalls SB, Pascagoula | 19.11.1990 | 10.1.1992 | 12.6.1993 | in service (2020) |
| CG72 | Vella Gulf | 4521 | Ingalls SB, Pascagoula | 22.4.1991 | 13.6.1992 | 18.9.1993 | in service (2020) |
| CG73 | Port Royal | 4522 | Ingalls SB, Pascagoula | 20.11.1991 | 20.11.1992 | 4.7.1994 | in service (2020) |
|
Displacement standard, t |
CG47, 48: 7019 (light) CG49-51: 7014 (light) CG52-73: 8910 standard 6997 - 7242 light |
|
Displacement full, t |
CG47, 48: 9589 CG49-51: 9047 CG52-73: 9763 - 10010 |
|
Length, m |
162.4 wl 172.5 oa |
|
Breadth, m |
16.8 |
|
Draught, m |
CG47-51: 6.55 mean 9.60 over sonar dome CG52-73: 7.46 mean 10.5 over sonar dome |
|
No of shafts |
2 |
|
Machinery |
4 General Electric LM-2500 gas turbines |
|
Power, h. p. |
86000 |
|
Max speed, kts |
30+ |
|
Fuel, t |
gas turbine oil: 2000 |
|
Endurance, nm (kts) |
6000(20) |
|
Armament |
CG47, 48: 2 x 4 Harpoon SSM (8 RGM-84), 2 x 2 Standard SM-2MR SAM / ASROC ASuR (68 RIM-66C/D, 20 RUR-5), 2 x 1 - 127/54 Mk 45 Mod. 0, 2 x 6 - 20/76 Mk 15 Phalanx, 4 x 1 - 12.7/90, 2 x 3 - 324 TT, 1 - 2 helicopters (SH-2F) CG49-51: 2 x 4 Harpoon SSM (8 RGM-84), 2 x 2 Standard SM-2MR SAM / ASROC ASuR (68 RIM-66G/H/J, 20 RUR-5), 2 x 1 - 127/54 Mk 45 Mod. 0, 2 x 6 - 20/76 Mk 15 Phalanx, 4 x 1 - 12.7/90, 2 x 3 - 324 TT, 1 - 2 helicopters (SH-60B) CG52-68: 2 x 61 Mk 41 Mod. 0 VLS (122 Tomahawk RGM-109 CruM, Standard SM-2MR RIM-66 SAM, ASROC RUM-139 ASuR), 2 x 4 Harpoon SSM (8 RGM-84), 2 x 1 - 127/54 Mk 45 Mod. 1, 2 x 6 - 20/76 Mk 15 Phalanx, 4 x 1 - 12.7/90, 2 x 3 - 324 TT, 2 helicopters (SH-60B) CG69-73: 2 x 61 Mk 41 Mod. 0 VLS (122 Tomahawk RGM-109 CruM, Standard SM-2MR RIM-66 SAM, ASROC RUM-139 ASuR), 2 x 4 Harpoon SSM (8 RGM-84), 2 x 1 - 127/62 Mk 45 Mod. 2, 2 x 6 - 20/76 Mk 15 Phalanx, 4 x 1 - 12.7/90, 2 x 3 - 324 TT, 2 helicopters (SH-60B) |
|
Electronic equipment |
CG47, 48: SPS-64(v)9, SPS-55, SPS-49(v)6.7.8, SPY-1A, 4x SPG-62, SPQ-9A, 2x Mk 90 radars, SQS-53A sonar, SLQ-32(v)3 ECM suite, 4x Mk 36 SRBOC or 6x Hycor Mk 137 decoy RL, SLQ-25A Nixie torpedo decoy, Aegis Mk 7 Baseline 1 CCS CG49-51: SPS-64(v)9, SPS-55, SPS-49(v)6.7.8, SPY-1A, 4x SPG-62, SPQ-9A, 2x Mk 90 radars, SQS-53A sonar, SLQ-32(v)3 ECM suite, 4x Mk 36 SRBOC or 6x Hycor Mk 137 decoy RL, SLQ-25A Nixie torpedo decoy, Aegis Mk 7 Baseline 1 CCS CG52, 53: SPS-64(v)9, SPS-55, SPS-49(v)6.7.8, SPY-1A, 4x SPG-62, SPQ-9A, 2x Mk 90 radars, SQS-53A sonar, SLQ-32(v)3 ECM suite, 4x Mk 36 SRBOC or 6x Hycor Mk 137 decoy RL, SLQ-25A Nixie torpedo decoy, Aegis Mk 7 Baseline 2 CCS CG54, 55: SPS-64(v)9, SPS-55, SPS-49(v)6.7.8, SPY-1A, 4x SPG-62, SPQ-9A, 2x Mk 90 radars, SQS-53A, SQR-19 sonars, SLQ-32(v)3 ECM suite, 4x Mk 36 SRBOC or 6x Hycor Mk 137 decoy RL, SLQ-25A Nixie torpedo decoy, Aegis Mk 7 Baseline 2 CCS CG56-58: SPS-64(v)9, SPS-55, SPS-49(v)6.7.8, SPY-1A, 4x SPG-62, SPQ-9A, 2x Mk 90 radars, SQQ-89(v)3 sonar suite (SQS-53B + SQR-19 towed array), SLQ-32(v)3 ECM suite, 4x Mk 36 SRBOC or 6x Hycor Mk 137 decoy RL, SLQ-25A Nixie torpedo decoy, Aegis Mk 7 Baseline 2 CCS CG59-64: SPS-64(v)9, SPS-55, SPS-49(v)6.7.8, SPY-1B, 4x SPG-62, SPQ-9A, 2x Mk 90 radars, SQQ-89(v)3 sonar suite (SQS-53B + SQR-19 towed array), SLQ-32(v)3 ECM suite, 4x Mk 36 SRBOC or 6x Hycor Mk 137 decoy RL, SLQ-25A Nixie torpedo decoy, Aegis Mk 7 Baseline 3 CCS CG65-67: SPS-64(v)9, SPS-55, SPS-49(v)6.7.8, SPY-1D(v), 4x SPG-62, SPQ-9A, 2x Mk 90 radars, SQQ-89(v)3 sonar suite (SQS-53B + SQR-19 towed array), SLQ-32(v)3 ECM suite, 4x Mk 36 SRBOC or 6x Hycor Mk 137 decoy RL, SLQ-25A Nixie torpedo decoy, Mk 50 floating decoy system (4x Mk 166 launchers for SLQ-49 floating radar reflection buoys), Aegis Mk 7 Baseline 4 CCS CG68-73: SPS-64(v)9, SPS-55, SPS-49(v)6.7.8, SPY-1D(v), 4x SPG-62, SPQ-9A, 2x Mk 90 radars, SQQ-89(v).. sonar suite (SQS-53C + SQR-19 towed array), SLQ-32(v)3 ECM suite, 4x Mk 36 SRBOC decoy RL, SLQ-25A Nixie torpedo decoy, Mk 50 floating decoy system (4x Mk 166 launchers for SLQ-49 floating radar reflection buoys), Aegis Mk 7 Baseline 4 CCS |
|
Complement |
CG47-51: 377 - 380 CG52-73: 387 |
Project history: This series, based on the Spruance hull form, is the result of a very lenghty evolution. The Aegis air defence system was originally designed for installation aboard a nuclear frigate (later redesignated cruiser) such as the California. However, when Admiral E. M. Zumwalt Jr became CNO he sought instead a minimum Aegis platform for construction in considerable numbers (DG/Aegis); for a time, it was to have been limited to $100m in FY73 dollars and to 5000t, compared to $45m and 3400t for what became the Perry class frigate. On this basis it would have been limited to a single Mk 22 launcher with 16 missiles, and DG had ro be relaxed to 6000t and $125m. There was to have been a single Mk 26 Mod 2 (64-missile) launcher, with cost rising to $200m by early 1973. Advocates of a conventionally-powered Aegis platform rejected this design as making too little use of the power inherent in the missile control system; advocates of nuclear power rejected it as means of killing off the nuclear ship programme. There was also some scepticism as to the accuracy of the cost estimates for DG/Aegis. Then the Secretary of the Navy asked for studies of a new nuclear version, which eventually became the abortive Strike Cruiser (CSGN) of about 18000t. Given the high cost of such a ship, the Secretary of Defense demanded a mix of nuclear and conventional Aegis ships, and the conventional study was based on the largest existing destroyer-type hull, the Spuance.
The lead ship, Ticonderoga, was authorized under the FY78 programme, at the same time that the nuclear strike cruiser died a political death; it was so large and so important that it was redesignated a cruiser in January 1980. Compared to the strike cruiser, it lacks an 203mm gun and has only a limited capacity for surface-to-surface missiles, two quadruple canisters. From CG 52 they have an enlarged missile capacity (122 as against 88) with vertical launchers, which carry Tomahawk as well as the SM-2 anti-aircraft missile of the Aegis system. Ships carry 36 Mk 46/50/54 torpedoes for helicopters. There is Kevlar protection of vital spaces.
Modernizations: 1993, Ticonderoga, Yorktown, Vincennes, Valley Forge, Thomas S. Gates: - ASROC capability (88 Standard SM-1MR at all)
early 1990s and later, all: - Aegis Mk 7 Baseline 3.4 CCS; + Aegis Mk 7 Baseline 5 CCS
late 1990s, Ticonderoga, Yorktown, Vincennes, Valley Forge, Thomas S. Gates: - (1 - 2) SH-2F helicopters; + (1 - 2) SH-60B helicopters
late 1990s, all: - 2 x 61 Mk 41 Mod. 0 VLS (122 Tomahawk RGM-109 CruM, Standard SM-2MR RIM-66 SAM, ASROC RUM-139 ASuR); + 2 x 64 Mk 41 Mod. 0 VLS (128 Tomahawk RGM-109 CruM, Standard SM-2MR RIM-66 SAM, ASROC RUM-139 ASuR) by deleting of at-sea reloading cranes, 2 x 1 - 25/87 Mk 88 Bushmaster, SLQ-49 floating decoys
1999-early 2000s, Ticonderoga, Yorktown, Vincennes, Valley Forge, Thomas S. Gates, Bunker Hill, Mobile Bay, Antietam, Leyte Gulf, San Jacinto, Lake Champlain, Philippine Sea: - Mk 36 SRBOC system (4x SRBOC decoy RLs); + Mk 36 Mod. 18 SRBOC system (8x Mk 137 SRBOC decoy RLs)
1999-early 2000s, Princeton, Normandy, Monterey, Chancellorsville, Cowpens, Gettysburg, Chosin, Hue City, Shiloh, Anzio, Vicksburg, Lake Erie, Cape St. George, Vella Gulf, Port Royal: - Mk 36 SRBOC system (4x SRBOC decoy RLs); + Mk 53 Mod. 5 system (6x Mk 137 Mod. 4 decoy RLs + 4x Mk 137 Mod. 10 Nulka decoy RLs)
early 2000s, Vella Gulf: - SPS-64(v)9 radar; + Scout radar
2003, Lake Erie, Cape St. George, Port Royal; 2006, Shiloh; 2009, Vella Gulf; 2010, Monterey: + SM-3 SAM capability
2008, Bunker Hill; 2009, Mobile Bay; 2010, Philippine Sea; 2011, Antietam; 2012, San Jacinto; 2013-2014, Leyte Gulf, Lake Champlain: all were armed with 2 x 64 Mk 41 Mod. 0 VLS (128 Tomahawk RGM-109 CruM, Standard SM-2MR Block III, IV, SM-3 (on BMD CG67, 70, 72, 73) or SM-6 (RIM-66, RIM-161, RIM-174 SAM, ESSM SAM (4 RIM-162 in one cell), ASROC RUM-139 ASuR), 2 x 4 Harpoon SSM (8 RGM-84), 2 x 1 - 127/62 Mk 45 Mod. 4, 2 x 6 - 20/76 Mk 15 Phalanx Block 1B, 2 x 1 - 25/87 Mk 88 Bushmaster, 4 x 1 - 12.7/90, 2 x 3 - 324 TT, 2 helicopters (SH-60B or MH-60R); SPS-64(v)9, SPS-55, SPS-49(v)7/8, SPY-1D(v), 4x SPG-62, SPQ-9B, 2x Mk 90 radars, EOSS Mk 20 Mod. 0, Mk 46 e/o systems, SQQ-89(v)3 sonar suite (SQS-53C + SQR-19 towed array), TRAFS torpedo detector, SLQ-32(v)3, SLQ-20B, COBLU ECM suites, Mk 53 Mod. 5 system (6x Mk 137 Mod. 4 decoy RLs + 4x Mk 137 Mod. 10 Nulka decoy RLs), SLQ-25A Nixie torpedo decoy, Mk 50 floating decoy system (4x Mk 166 launchers for SLQ-49 floating radar reflection buoys), Aegis Mk 7 Baseline 8, CEC USG-2 CCS
1998-2008, Princeton, Chosin, Hué City, Anzio, Vicksburg, Cape St. George: - Aegis Mk 7 Baseline 5 CCS; + Aegis Mk 7 Baseline 6 CCS
2013-2014, Princeton, Normandy, Monterey, Chancellorsville; 2015-2016, Cowpens, Gettysburg, 2016-2017, Chosin, Hue City, Shiloh, Anzio, Vicksburg: all were armed with 2 x 64 Mk 41 Mod. 0 VLS (128 Tomahawk RGM-109 CruM, Standard SM-2MR Block III, IV, SM-3 (on BMD CG67, 70, 72, 73) or SM-6 (RIM-66, RIM-161, RIM-174 SAM, ESSM SAM (4 RIM-162 in one cell), ASROC RUM-139 ASuR), 2 x 4 Harpoon SSM (8 RGM-84), 2 x 1 - 127/62 Mk 45 Mod. 4, 2 x 6 - 20/76 Mk 15 Phalanx Block 1B, 2 x 1 - 25/87 Mk 88 Bushmaster, 4 x 1 - 12.7/90, 2 x 3 - 324 TT, 2 helicopters (SH-60B or MH-60R); SPS-64(v)9, SPS-55, SPS-49(v)7/8, SPY-1D(v), 4x SPG-62, SPQ-9B, 2x Mk 90 radars, EOSS Mk 20 Mod. 0, Mk 46 systems, SQQ-89A(v)15 sonar suite (SQS-53C + SQR-20 towed array), TRAFS torpedo detector, SLQ-32(V)3, SLQ-20B, COBLU ECM suites, Mk 53 Mod. 5 system (6x Mk 137 Mod. 4 decoy RLs + 4x Mk 137 Mod. 10 Nulka decoy RLs), SLQ-25A Nixie torpedo decoy, Mk 50 floating decoy system (4x Mk 166 launchers for SLQ-49 floating radar reflection buoys), Aegis Mk 7 Baseline 12, CEC USG-2 CCS
Naval service: Gettysburg was damaged by ramming by Iranian frigate Bayandor 13.10.1996 in Persian Gulf. Princeton was damaged by Iraqi mine in Persian Gulf 18.2.1991. Port Royal ran aground off Honolulu 5.2.2009 and was under repair till October. San Jacinto collided with SSN Montpelier 13.10.2012.

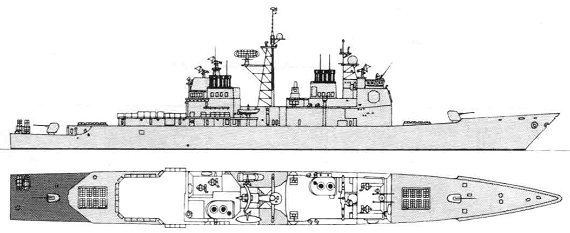

Vincennes 2002

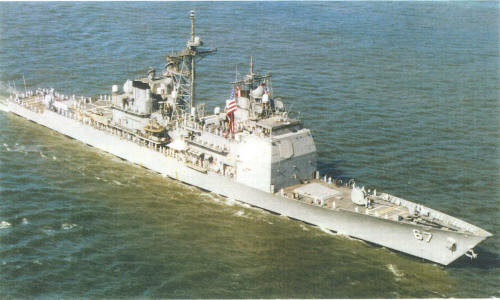

Shiloh 2003
