LEAHY missile cruisers (1962 - 1964)

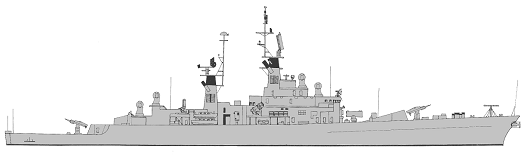

Leahy 1970

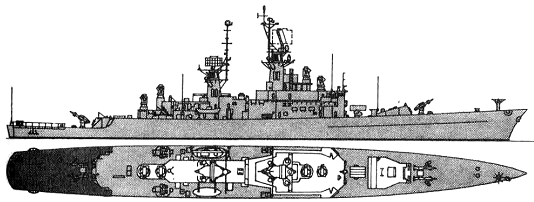

Leahy 1979

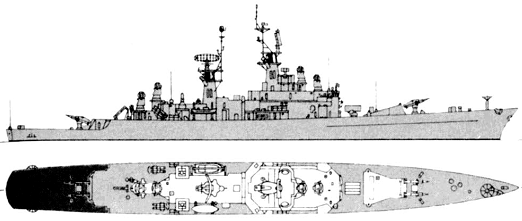

Leahy 1981

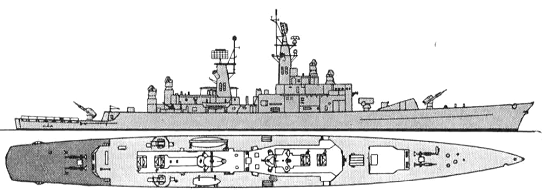

Dale 1988

Leahy 1990

No Name Yard No Builder Laid down Launched Comm Fate
DLG16, 7.1975- CG16 Leahy 339 Bath Iron Wks 3.12.1959 1.7.1961 4.8.1962 stricken 10.1993
DLG17, 6.1975- CG17 Harry E. Yarnell 340 Bath Iron Wks 31.5.1960 9.12.1961 2.2.1963 stricken 10.1993
DLG18, 6.1975- CG18 Worden 341 Bath Iron Wks 19.9.1960 2.6.1962 3.8.1963 stricken 10.1993
DLG19, 6.1975- CG19 Dale 532 New York SB, Camden 6.9.1960 28.7.1962 23.11.1963 stricken 9.1994
DLG20, 6.1975- CG20 Richmond K. Turner 533 New York SB, Camden 9.1.1961 6.4.1963 13.6.1964 stricken 9.1994
DLG21, 6.1975- CG21 Gridley   Puget Sound N Yd 15.7.1960 31.7.1961 25.5.1963 stricken 1.1994
DLG22, 6.1975- CG22 England 76 Todd, Los Angeles 4.10.1960 6.3.1962 7.12.1963 stricken 1.1994
DLG23, 6.1975- CG23 Halsey   Mare Island N Yd 26.8.1960 15.1.1962 20.7.1963 stricken 1.1994
DLG24, 6.1975- CG24 Reeves   Puget Sound N Yd 1.7.1960 12.5.1962 15.5.1964 stricken 11.1993


Displacement standard, t

5146

Displacement full, t

7590

Length, m

155.5 wl 162.5 oa

Breadth, m

16.3

Draught, m

5.80

No of shafts

2

Machinery

DLG16 - 19: 2 sets General Electric geared steam turbines, 4 Babcock & Wilcox boilers

DLG20: 2 sets De Laval geared steam turbines, 4 Babcock & Wilcox boilers

DLG21, 22: 2 sets De Laval geared steam turbines, 4 Combustion Engineering boilers

DLG23, 24: 2 sets Allis-Chalmers geared steam turbines, 4 Combustion Engineering boilers

Power, h. p.

85000

Max speed, kts

32

Fuel, t

oil 1800

Endurance, nm (kts)

8000(20)

Armament

2 x 2 Terrier SAM (80 RIM-2), 1 x 8 ASROC ASuR (8 RUR-5A), 2 x 2 - 76/50 Mk 33, 2 x 3 - 324 Mk 32 TT (12), helicopter deck

Electronic equipment

SPS-37, SPS-39, SPS-10F, 4x SPG-55, 2x Mk 35 radars, SQS-23 sonar, WLR-1, WLR-3 ECM suites, 2x Mk 28 decoy RL

Complement

377

Project history: In these ships guided missile was finally made paramount, with guns little more than an afterthought. The need for large numbers of missiles to protect the Fleet against a mounting air threat and the relatively slow rate of new construction led to a decision that new missile ships be double-ended. It had previously been objected that missile mounts in the bow would be so subject to sea damage as to be useless; in the Leahy class special efforts were to protect forward launcher, including the knuckling of the hull, which was uncharacteristic of previous US practice The decision to adopt a forecastle type of hull reflects the explosive growth of space (rather than weight) requirements, a characteristic of modern warship development. As in the Farraguts, ASW was a distinctly secondary consideration, but Leahys were designed to incorporate ASROC (without reloads) and had a bow dome for their SQS-23 sonars.

    As in the case of earlier Terrier ships, the Leahy class suffered from limited effectiveness as built, and was subject to extensive modernization.

Modernizations: 1967, Leahy; 1968, Harry E. Yarnell, Worden, Gridley, England, Reeves; 1972, Dale, Richmond K. Turner, Halsey: - 2 x 2 Terrier SAM (80 RIM-2), 4x SPG-55 radars; + 2 x 2 - Standard SM-1MR SAM (80 RIM-66), SPS-43, SPG-55B radars, NTDS CCS

late 1970s, Harry E. Yarnell, Richmond K. Turner, Gridley, Halsey, Reeves; early 1980s, Leahy, Worden, Dale, England: - 2 x 2 - 76/50, 2x Mk 35 radars; + 2 x 4 Harpoon SSM (8 RGM-84A), LN-66 radar

late 1970s, Leahy, Worden, Dale, England; early 1980s, Harry E. Yarnell, Richmond K. Turner, Gridley, Halsey, Reeves: + 2 x 6 -20/76 Mk 15 Phalanx, 2x Mk 90 radars

early 1980s, all: - 2 x 2 Standard SM-1MR SAM (80 RIM-66); + 2 x 2 Standard SM-2ER SAM (80 RIM-67), 4 x 1 - 12.7/90

1980s, Harry E. Yarnell: - SQS-23 sonar; + SQQ-23B PAIR sonar

1987, England; 1988, Leahy, Harry E. Yarnell, Dale; 1989, Worden, Richmond K. Turner: under NTU modernisation - SPS-37, SPS-39, SPS-43, SPS-10F, 4x SPG-55B radars, WLR-1, WLR-3 ECM suites, 2x Mk 28 decoy RL; + SPS-48A, SPS-49(v)3, SPS-67, 4x SPG-55C radars, SLQ-32(v)3 ECM suite, 4x Mk 36 SRBOC decoy launchers

1990, Gridley, Halsey: under NTU modernisation - SPS-37, SPS-39, SPS-43, SPS-10F, 4x SPG-55B radars, 2x Mk 28 decoy RL; + SPS-48A, SPS-49(v)3, SPS-67, 4x SPG-55C radars, SLQ-32(v)3 ECM suite, 4x Mk 36 SRBOC decoy launchers

1990, Reeves: under NTU modernisation - SPS-39, SPS-43, 4x SPG-55B radars, 2x Mk 28 decoy RL; + SPS-48A, 4x SPG-55C radars, SLQ-32(v)3 ECM suite, 4x Mk 36 SRBOC decoy launchers

Naval service: No significant events.

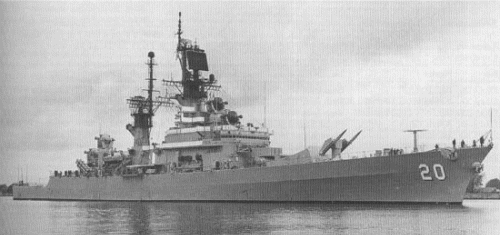

Richmond K. Turner 1981
