UNITED STATES NAVY (UNITED STATES OF AMERICA)

CRUISERS

DES MOINES heavy cruisers (1948-1949)

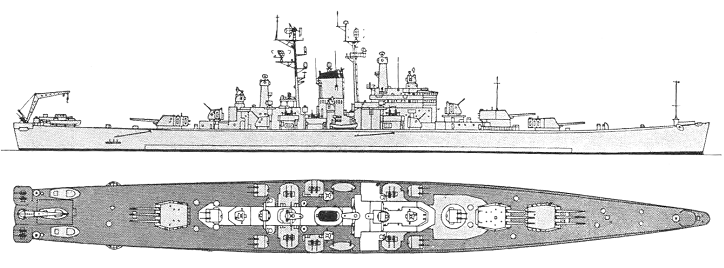

Newport News 1949

Newport News 1963

No Name Yard No Builder Laid down Launched Comm Fate
CA134 Des Moines 1571 Bethlehem, Quincy 28.5.1945 27.9.1946 17.11.1948 stricken 7.1991
CA139 Salem 1572 Bethlehem, Quincy 4.6.1945 25.3.1947 9.5.1949 stricken 7.1991, preserved
CA140 Dallas 1573 Bethlehem, Quincy 1945? --- --- cancelled 6.1946
CA148 Newport News 456 Newport News 1.10.1945 6.3.1947 29.1.1949 stricken 7.1978


Displacement standard, t

17255

Displacement full, t

20934

Length, m

213.4 wl 218.4 oa

Breadth, m

23.0

Draught, m

7.92 full load

No of shafts

4

Machinery

4 sets General Electric geared steam turbines, 4 Babcock & Wilcox boilers

Power, h. p.

120000

Max speed, kts

33

Fuel, t

oil 3006

Endurance, nm(kts)

10500 (15)

Armour, mm

belt: 152 - 102, deck: 95, upper deck: 25, bulkheads: 127 - 102, barbettes: 160, turrets: face 203, roof 102, sides 95 - 51, rear 38, armoured bridge: 165 - 140

Armament

3 x 3 - 203/55 Mk 16, 6 x 2 - 127/38 Mk 32, 12 x 2 - 76/50 Mk 34, 12 x 2 - 20/70 Mk 24

Electronic equipment

SG-6, SK-3, SPS-6, 2x Mk 13, 4x Mk 25, 4x Mk 35 radars

Complement

1799

Project history: These three ships were the culmination of wartime US cruiser design. As soon as the Bureau of Ordnance perfected the automatic 152/47mm DP gun on which it had been working since 1937, it realised that the same principles could be applied to triple the rate of fire of the 203mm gun; detailed weight estimates for twin and triple turrets became available in July, 1943 and was almost immediately designed and ordered as the next class. Such weapons would overcome the great defect of existing 203mm guns: excessively slow fire, so slow that it was almost impossible to hit fast Japanese ships in night actions; at the same time they would greatly outrange the existing fast-firing 152mm guns.
        At first twin turrets were contemplated, on the theory that these ships might not even be delayed by the change; however, the General Board was already dissatisfied with existing heavy cruiser designs and fell that by demanding a completely new ship with triple turrets it would provide the post-war fleet with at least some satisfactory cruisers; otherwise the war might end with nothing but an inadequate six-gun ship under construction. New features not connected directly with new guns included a unit machinery arrangement similar to that in battleships and unique among US cruisers, and a separate 'bomb deck' to improve protection against bombing. Immune zone against 203mm shell was between 77 and 138 cables.
        As the decision to pass to a new class was made in mid-1943, the next cruisers to be ordered were CA139-142 and CL143-149. In October, 1943 CA134 was added to the new class (Des Moines) to bring it to five ships; the question was also asked whether CL143, 148 and 149 were shifted to the new heavy cruiser design, but CL144-147 were retained as units of a new 152mm DP cruiser class (Worcester) largely in order to ensure that some of the new twin DP 152/47mm mounts were sent to sea. A late-war (1945) programme, which would have added CA150-153, was never approved by the President, leaving, at the end of the war, eight prospective members of the Des Moines class. CA142, 143 and 149 were all suspended, although materials for them were held pending a decision as to their fate. Indeed, Admiral King argued strongly for their completion on the theory that a homogeneous group of eight such ships would be extremely valuable. However, he was overruled and later CA140 and 141, which were little advanced, were cancelled.
The three ships completed appear to have been successful, Newport News serving as a flagship and fire support ship until she was decommissioned in 1975. The new 203mm rapid-fire gun appears to have worked well in service, the sole exception being a turret explosion in Newport News in 1972, which completely disabled No2 mount.

Ship protection: Main belt between end barbettes had 3.1m height. It was 152mm thick (102mm at lower edge). There were 6 127mm transverse bulkheads (2 outer and 4 inner), dividing the ship on 5 zones. Armoured deck over main belt was 95mm. Above was upper 25mm deck. Barbettes were 178mm thick. Turrets had 203mm faces, 90-51mm sides, 38mm rears and 102mm crowns. Armoured bridge had 165-140mm sides.

Modernizations: 1952, all: - 12 x 2 - 20/70

1950s, all: - SK-3, SPS-6 radars; + SPS-6C, SPS-8 radars, SLR-2 ECM suite

1959, all: - 1 x 2 - 76/50

1960s, Salem: - SPS-6C radar; + SPS-12, 2x Mk 34 radars

1962, Des Moines: - 1 x 2 - 76/50

1970s, all: - SLR-2 ECM suite

Naval service: Newport News was badly damaged in 1972 by explosion of No 2 turret. Turret was fully demolished.

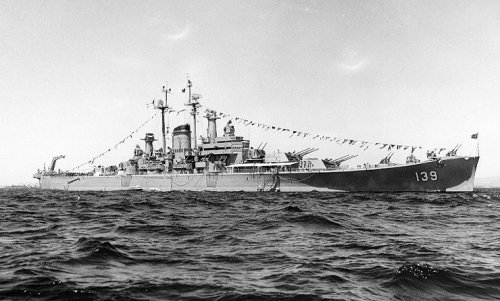

Salem 1950
