| No | Name | Yard No | Builder | Laid down | Launched | Comm | Fate |
| CG20 | Tahoma | New York SB, Camden | 1907 | 10.10.1908 | 3.1909 | wrecked 20.9.1914 | |
| CG21 | Yamacraw | New York SB, Camden | 1907 | 24.10.1908 | 5.1909 | to USN as gunboat 4.1917-8/1919, sold 12.1937 |
|
Displacement normal, t |
1006 |
|
Displacement full, t |
1082 |
|
Length, m |
58.2 |
|
Breadth, m |
9.75 |
|
Draught, m |
4.27 |
|
No of shafts |
1 |
|
Machinery |
1 VTE |
|
Power, h. p. |
|
|
Max speed, kts |
14.1 |
|
Fuel, t |
coal |
| Endurance, nm(kts) | |
|
Armament |
2 x 1 - 57/45 Hotchkiss Mk II/III |
|
Complement |
69 |
Project history: Revenue service cutters.
Modernizations: 1917, both: - 2 x 1 - 57/45; + 2 x 1 - 76/50 Mk II/III/V/VI
Naval service: Tahoma grounded off the Aleutian Islands 20.9.1914.

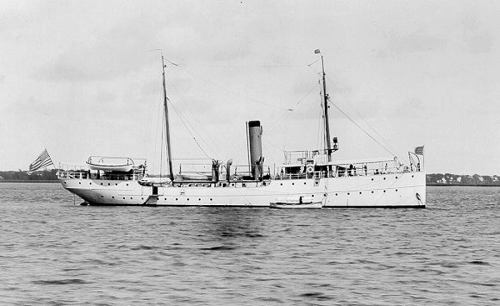

Yamacraw 1914
