| No | Name | Yard No | Builder | Laid down | Launched | Comm | Fate |
| William Windom, 12.1915- Comanche | Iowa I W, Dubuque | 1894 | 23.6.1895 | 6/1896 | to USN 4.1898-8/1898 as gunboat, to USN 4.1917-8/1919 as gunboat, sold 11.1930 |
|
Displacement normal, t |
|
|
Displacement full, t |
670 |
|
Length, m |
52.0 |
|
Breadth, m |
8.23 |
|
Draught, m |
2.90 |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 2 Babcock & Wilcox boilers |
|
Power, h. p. |
800 |
|
Max speed, kts |
15 |
|
Fuel, t |
coal |
| Endurance, nm(kts) | |
|
Armament |
3 x 1 - 47/40 Hotchkiss Mk I |
|
Complement |
49 |
Project history: Iron-hulled revenue service cutter.
Modernizations: 1917: Comanche was armed with 1 x 1 - 76/50 Mk II/III/V/VI, 2 x 1 - 57/40 Hotchkiss Mk I/II
Naval service: No significant events.

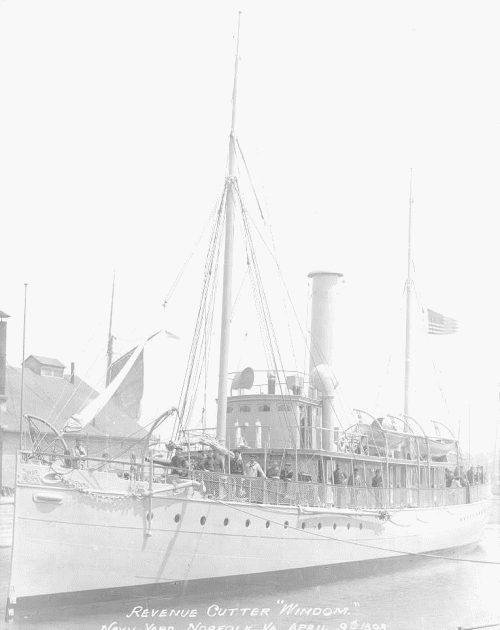

William Windom 1898
© Ivan Gogin, 2010
