Campbell 1941
Spencer 1944
Campbell 1963
Campbell 1979
Campbell 1982
| No | Name | Yard No | Builder | Laid down | Launched | Comm | Fate |
| WPG31, 2.1945- WAGC31, 12.1945- WPG31, 5.1966- WHEC31 | George M. Bibb, 7.1937- Bibb | Charleston N Yd | 8.1935 | 14.1.1937 | 3/1937 | scuttled 28.11.1987 | |
| WPG32, 3.1945- WAGC32, 5.1946- WPG32, 5.1966- WHEC32 | George W. Campbell, 7.1937- Campbell | Philadelphia N Yd | 5.1935 | 3.1.1936 | 6.1936 | sunk as target 29.11.1984 | |
| WPG33, 3.1944- WAGC6, 7.1945- WPG33, 5.1966- WHEC33 | William J. Duane, 7.1937- Duane | Philadelphia N Yd | 5.1935 | 3.6.1936 | 8.1936 | scuttled 27.11.1987 | |
| WPG34 | Alexander Hamilton, 7.1937- Hamilton | New York N Yd, Brooklyn | 9.1935 | 6.1.1937 | 3.1937 | sunk 30.1.1942 | |
| WPG35, 10.1944- WAGC35, 7.1946- WPG35, 5.1966- WHEC35 | Samuel D. Ingham, 7.1937- Ingham | Philadelphia N Yd | 5.1935 | 3.6.1936 | 9.1936 | museum 5.1988 | |
| WPG36, 9.1944- WAGC36, 7.1946- WPG36, 5.1966- WHEC36 | John C. Spencer, 7.1937- Spencer | New York N Yd, Brooklyn | 9.1935 | 6.1.1937 | 3.1937 | training hulk 1.1974 | |
| WPG37, 1.1945- WAGC37, 11.1945- WPG37, 5.1966- WHEC37 | Roger B. Taney, 7.1937- Taney | Philadelphia N Yd | 5.1935 | 3.6.1936 | 10.1936 | museum 12.1986 |
|
Displacement standard, t |
2216 |
|
Displacement full, t |
2660 |
|
Length, m |
93.9 wl 99.7 oa |
|
Breadth, m |
12.5 |
|
Draught, m |
3.81 trials |
|
No of shafts |
2 |
|
Machinery |
2 sets Westinghouse geared steam turbines, 2 Babcock & Wilcox boilers |
|
Power, h. p. |
5250 |
|
Max speed, kts |
19 |
|
Fuel, t |
oil 561 |
| Endurance, nm(kts) | 9500 (11) |
|
Armament |
2 x 1 - 127/51 Mk 7.8.14/15, 2 x 1 - 57/50 Mk 8, 1 x 1 - 37/50 Mk 4, 1 seaplane (JF, J2F) |
|
Complement |
123 |
Project history: After commission of "Lake" class cutters development of big cutters suspended in some years, called by a financing direction to building of big class of moderate size cutters (so-called 165-ft class). Only in 1934 requirements have been prepared for the following series of big cutters according to which the speed raised to 20kts. Also seaplane was provided.
The original project represented all the same "Lake" which hull extended to 316ft. It has not received the further development, that during the same time Navy has prepared much more successful project of gunboat Erie, created on very close technical requirements. After including of necessary changes dictated by specificity of Coast Guard service, the "naval" project was transformed to "Treasury": most successful Coast Guard cutter of the Second World War period.
The project origin was predetermined by significant differences of new ships from remaining cutters. The hull was fulfilled not on cross-section, and on a longitudinal framing system. Traditional single-shaft turbo-electrical machinery was replaced by twin-shaft geared steam turbines. Thus hull was strengthened for icebreaking.
Originally it was planed to built ten ships of this class, but last three were re-ordered on cheaper Owasco design for financial reasons.
Modernizations:
1941, Bibb, Hamilton: - 2 x 1 - 127/51, 2 x 1 - 57/50, 1 x 1 - 37/50, seaplane; + 3 x 1 - 76/50 Mk 20, 2 x 1 - 12.7/90, 1 DCT, 2 DCR1941, Campbell, Duane, Ingham, Spencer: - 2 x 1 - 57/50, 1 x 1 - 37/50, seaplane; + 1 x 1 - 127/51 Mk 7.8.14/15, 3 x 1 - 76/50 Mk 20, 4 x 1 - 12.7/90, 1 DCT, 2 DCR
1941, Taney: - 2 x 1 - 57/50, 1 x 1 - 37/50, seaplane; + 4 x 1 - 76/50 Mk 20, 1 DCT, 2 DCR
1943, Bibb: - 2 x 1 - 12.7/90; + 1 x 1 - 127/51 Mk 7.8.14/15, 1 x 1 - 76/50 Mk 20, 2 x 1 - 20/70 Mk 4, 1 x 24 - 178 Hedgehog Mk 10 AWSRL, 1 DCT
1943, Campbell: - 1 x 1 - 127/51, 4 x 1 - 12.7/90; + 1 x 1 - 76/50 Mk 20, 2 x 1 - 20/70 Mk 4, 1 x 24 - 178 Hedgehog Mk 10 ASWRL, 1 DCT, type 271, SC, SG, SC-3, SGa radars
1943, Duane, Ingham, Spencer: - 1 x 1 - 127/51, 4 x 1 - 12.7/90; + 1 x 1 - 76/50 Mk 20, 2 x 1 - 20/70 Mk 4, 1 x 24 - 178 Hedgehog Mk 10 ASWRL, 5 DCT
1943, Taney: - 2 x 1 - 127/51, 4 x 1 - 76/50; + 4 x 1 - 127/38 Mk 12, 6 x 1 - 20/70 Mk 4, 1 x 24 - 178 Hedgehog DCT, 5 DCT, SK, SG-1, Mk 26 radars, QC sonar
1944, Duane, Ingham, Spencer: - 2 x 1 - 127/51, 4 x 1 - 76/50, 1 x 24 - 178 Hedgehog Mk 10 ASWRL, 6 DCT, 2 DCR; + 2 x 1 - 127/38 Mk 12, 3 x 2 - 40/56 Mk 1.2, 2 x 1 - 20/70 Mk 4, SC-3.2.4, SGa, Mk 26 radars, QC sonar
1945, Bibb: - 1 x 1 - 127/51, 4 x 1 - 76/50, 1 x 24 - 178 Hedgehog Mk 10 ASWRL, 2 DCT, 2 DCR; + 2 x 1 - 127/38 Mk 12, 3 x 2 - 40/56 Mk 1.2, 2 x 1 - 20/70 Mk 4, SK, SG-1, Mk 26 radars, QC sonar
1945, Campbell: - 2 x 1 - 127/51, 4 x 1 - 76/50, 1 x 24 - 178 Hedgehog Mk 10 ASWRL, 2 DCT, 2 DCR; + 2 x 1 - 127/38 Mk 12, 3 x 2 - 40/56 Mk 1.2, 4 x 1 - 20/70 Mk 4, Mk 26 radar, QC sonar
1945, Taney: - 2 x 1 - 127/38, 2 x 1 - 20/70, 1 x 24 - 178 Hedgehog Mk 10 ASWRL, 6 DCT, 2 DCR; + 6 x 2 - 40/56 Mk 1.2
1/1946, WPG31: 2 x 1 - 127/38 Mk 30, 3 x 2 - 40/60 Mk 1, 4 x 1 - 20/70 Mk 10, SK, SG-1, Mk 26 radars, QC sonar
1/1946, WAGC32: 2 x 1 - 127/38 Mk 30, 3 x 2 - 40/60 Mk 1, 6 x 1 - 20/70 Mk 10, type 271, SC, SG, SC-3, SGa, Mk 26 radars, QC sonar
1/1946, WPG33: 2 x 1 - 127/38 Mk 30, 3 x 2 - 40/60 Mk 1, 4 x 1 - 20/70 Mk 10, SC-3, SGa, Mk 26 radars, QC sonar
1/1946, WAGC35: 2 x 1 - 127/38 Mk 30, 3 x 2 - 40/60 Mk 1, 4 x 1 - 20/70 Mk 10, SC-2, SGa, Mk 26 radars, QC sonar
1/1946, WAGC36: 2 x 1 - 127/38 Mk 30, 3 x 2 - 40/60 Mk 1, 4 x 1 - 20/70 Mk 10, SC-4, SGa, Mk 26 radars, QC sonar
1/1946, WPG37: 2 x 1 - 127/38 Mk 30, 6 x 2 - 40/60 Mk 1, 4 x 1 - 20/70 Mk 10, SK, SG-1, Mk 26 radars, QC sonar
1946, Bibb, Spencer: - 1 x 1 - 127/38, 2 x 2 - 40/60, 2 x 1 - 20/70; + 1 x 24 - 178 Hedgehog Mk 11 ASWRL
1946, Campbell: - 1 x 1 - 127/38, 2 x 2 - 40/60; + 2 x 1 - 20/70 Mk 10, 1 x 24 - 178 Hedgehog Mk 11 ASWRL
1946, Duane, Ingham: - 1 x 1 - 127/38, 2 x 2 - 40/60; + 4 x 1 - 20/70 Mk 10, 1 x 24 - 178 Hedgehog Mk 11 ASWRL
1946, Taney: - 1 x 1 - 127/38, 5 x 2 - 40/60, 2 x 1 - 20/70; + 1 x 24 Hedgehog Mk 11 ASWRL, 2 DCR
1966, Bibb, Spencer, Taney: - 1 x 2 - 40/60, 2 x 1 - 20/70, (SK, SG-1) or (SC-4, SGa) radars, QC sonar; + 2 x 1 - 12.7/90, 2 x 2 - 324 TT, SPS-29D, SPA-52 radars, SQS-11 sonar
1966, Campbell: - 1 x 2 - 40/60, 8 x 1 - 20/70, type 271, SC, SG, SC-3, SGa radars, QC sonar; + 2 x 1 - 12.7/90, 2 x 2 - 324 TT, SPS-29D, SPA-52 radars, SQS-11 sonar
1966, Duane, Ingham: - 1 x 2 - 40/60, 8 x 1 - 20/70, SC-3/2, SGa radars, QC sonar; + 2 x 1 - 12.7/90, 2 x 2 - 324 TT, SPS-29D, SPA-52 radars, SQS-11 sonar
Naval service: Alexander Hamilton 29.1.1942 was torpedoed by German submarine U132 and sunk next day by own escort ships in 17nm off Reykjavik (Iceland).

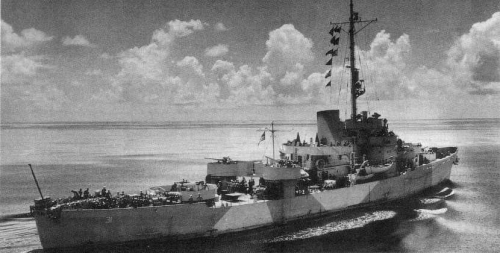

Bibb 1942

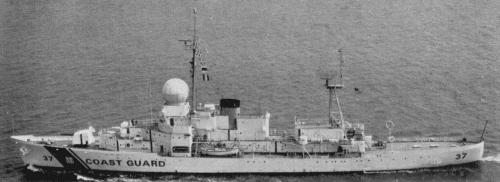

Taney 1975
