Reliance 1979
Reliance 1982
Reliance 1990
Reliance 2003
Reliance 2014
| No | Name | Yard No | Builder | Laid down | Launched | Comm | Fate |
| WPC615, 5.1966- WMEC615 | Reliance | Todd, Houston | 25.5.1963 | 20.6.1964 | in service (2019) | ||
| WPC616, 5.1966- WMEC616 | Diligence | Todd, Houston | 20.7.1963 | 26.8.1964 | in service (2019) | ||
| WPC617, 5.1966- WMEC617 | Vigilant | Todd, Houston | 24.12.1963 | 3.10.1964 | in service (2019) | ||
| WMEC618 | Active | 420 | Christy Corp., Sturgeon Bay | 31.7.1965 | 17.9.1966 | in service (2019) | |
| WPC619, 5.1966- WMEC619 | Confidence | USCG Yard, Baltimore | 8.5.1965 | 19.2.1966 | in service (2019) | ||
| WMEC620 | Resolute | 881 | American SB, Lorain | 30.4.1966 | 8.12.1966 | in service (2019) | |
| WMEC621 | Valiant | 882 | American SB, Lorain | 14.1.1967 | 28.10.1967 | in service (2019) | |
| WMEC622 | Courageous | 883 | American SB, Lorain | 18.3.1967 | 10.4.1968 | stricken 9.2001, to Sri Lanka 6.2004 (සමුදුර [Samudura]) | |
| WMEC623 | Steadfast | 884 | American SB, Lorain | 24.6.1967 | 25.9.1968 | in service (2019) | |
| WMEC624 | Dauntless | 885 | American SB, Lorain | 21.10.1967 | 10.6.1968 | in service (2019) | |
| WMEC625 | Venturous | USCG Yard, Baltimore | 11.11.1967 | 16.8.1968 | in service (2019) | ||
| WMEC626 | Dependable | 886 | American SB, Lorain | 16.3.1968 | 22.11.1968 | in service (2019) | |
| WMEC627 | Vigorous | 887 | American SB, Lorain | 4.5.1968 | 2.5.1969 | in service (2019) | |
| WMEC628 | Durable | USCG Yard, Baltimore | 29.4.1967 | 8.12.1967 | stricken 9.2001, to Colombia 9.2003 (Valle del Cauca) | ||
| WMEC629 | Decisive | USCG Yard, Baltimore | 14.12.1967 | 23.8.1968 | in service (2019) | ||
| WMEC630 | Alert | 888 | American SB, Lorain | 19.10.1968 | 4.8.1969 | in service (2019) |
|
Displacement standard, t |
950 |
|
Displacement full, t |
WMEC615-619: 970 WMEC620-630: 1007 |
|
Length, m |
64.2 |
|
Breadth, m |
10.4 |
|
Draught, m |
3.20 |
|
No of shafts |
2 |
|
Machinery |
WMEC615-619: CODAG: 2 Cooper Bessemer diesels + 2 Solar gas turbines WMEC620-630: 2 Alco diesels |
|
Power, h. p. |
WMEC615-619: 3000+2000=5000 WMEC620-630: 5000 |
|
Max speed, kts |
18 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
WMEC615-619: 6100(13) WMEC620-630: 6100(14) |
|
Armament |
1 x 1 - 76/50 Mk 34, 2 x 1 - 12.7/90, provision for 2 x 3 - 324 Mk 32 TT, helicopter deck for HH-52 |
|
Electronic equipment |
SPS-64(v)1 radar, provision for SQS-36/38 sonar |
|
Complement |
61 |
Project history: These small cutters were designed to operate within about 500 miles of the US coast, with a fifteen day endurance. The first five have CODAG propulsion. There was no stack, the diesels exhausted aft. They can tow a 10000t ship. Although they are too small for a hangar or maintenance facilities, they accommodate a landing pad large enough for the standard Coast Guard HH-52 or HH-3 helicopter. From a wartime point of view their armament was extremely limited, only one 76mm/50 gun and two machine-guns; presumably the standard torpedo tubes would be added in wartime. There is no hull sonar in peacetime, but the design makes provision for a wartime installation of SQS-36/38.
Orignul plans called for the construction of thirty units, but only sixteen were built.
Modernizations: 1987, Active; 1988, Confidence; 1989, Reliance, Durable; 1990, Vigilant, Courageous; 1991, Diligence; 1992, Vigorous; 1993, Valiant; 1994, Steadfast, Alert; 1995, Dauntless, Venturous; 1996, Resolute; 1997, Dependable; 1998, Decisive: MMA modernization: new funnel was installed, superstructure was enlarged, crew was enlarged to 86, full displacement rose to 1050t, WMEC615-619 were re-engined as later ships; - 1 x 1 - 76/50; + 1 x 1 - 25/75 Mk 38 Bushmaster, 1x SPS-64(v)1 radar (2nd), helicopter deck was reduced in area and can receive HH-65 helicopter
1992-1999, all: - 1x SPS-64(v)1 radar; + SPS-73 radars, SCCS CCS
Naval service: No significant events.

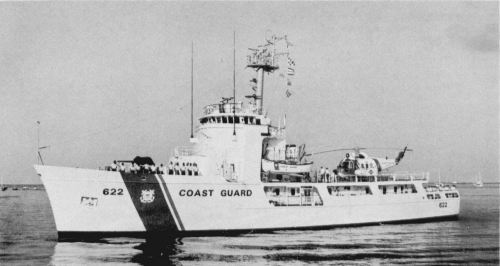

Courageous 1980

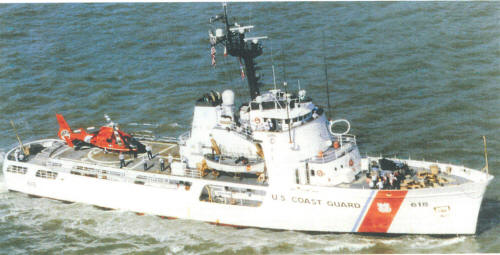

Active 2003
