UNITED STATES COAST GUARD (UNITED STATES OF AMERICA)

COAST GUARD SHIPS AND CRAFT

NORTHLAND cutter - icebreaker (1927)

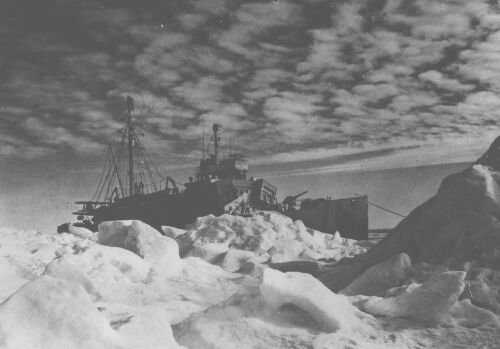

Northland 1943

No Name Yard No Builder Laid down Launched Comm Fate
WPG49 Northland 318 Newport News 8.1926 5.2.1927 5.1927 to Israel 3.1946 (A16 אֵילַת [Eilath])



Displacement standard, t

1785 trials

Displacement full, t

2150

Length, m

61.0 wl 66.0 oa

Breadth, m

11.9

Draught, m

4.17 trials

No of shafts

1, sails

Machinery

1 electric motor, 2 diesel-generators

Power, h. p.

1000

Max speed, kts

11.5

Fuel, t

diesel oil

Endurance, nm(kts) 12000 (10)

Armament

2 x 1 - 57/50 Mk 8, 1 x 1 - 37/50 Mk 4, 1 seaplane (UO, OL)

Complement

107

Project history: Northland was intended for service in the Arctic. Hull had ice reinforcements. Northland became one of the first American full-welded ships.

Modernizations: 1941: - 2 x 1 - 57/50, 1 x 1 - 37/50; + 2 x 1 - 76/50 Mk 20

1944: - seaplane; + 4 x 1 - 20/70 Mk 4, 2 DCT, 2 DCR, SC-1, SF radars, QCJ-3 sonar

1/1946: 2 x 1 - 76/50 Mk 21, 4 x 1 - 20/70 Mk 10, 2 DCT, 2 DCR, SC, SF radars, QCJ sonar

Naval service: No significant events.

Northland 1944
