| No | Name | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Lot M. Morrill | Pusey & Jones, Wilmington | 1888 | 29.4.1889 | 10/1889 | to USN 4.1898 - 8.1898 as gunboat, to USN 4.1917 - 10.1919 as gunboat, sold 10.1928 |
|
Displacement normal, t |
288 |
|
Displacement full, t |
|
|
Length, m |
44.3 |
|
Breadth, m |
7.32 |
|
Draught, m |
2.90 |
|
No of shafts |
1 |
|
Machinery |
1 VCE, 1 Babcock & Wilcox boiler |
|
Power, h. p. |
|
|
Max speed, kts |
13 |
|
Fuel, t |
coal |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 76/50 Mk II/III, 2 x 1 - 57/40 Hotchkiss Mk I |
|
Complement |
38 |
Project history: Iron-hulled revenue service cutter.
Modernizations:
None.Naval service: No significant events.

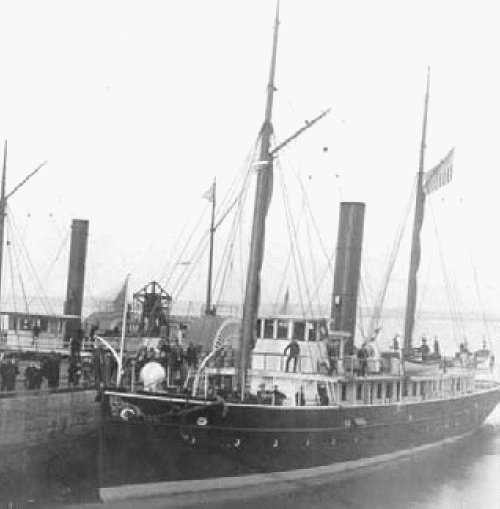

Lot M. Morrill
