HAMILTON cutters (1967 - 1972)

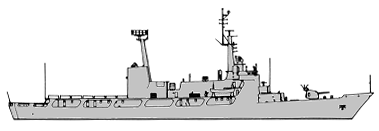

Hamilton 1979

Hamilton 1981

Hamilton 2015

No Name Yard No Builder Laid down Launched Comm Fate
WHEC715 Hamilton 1062 Avondale SY, Westwego 23.11.1965 18.12.1965 20.2.1967 to Philippines 5.2011 (Gregorio del Pilar)
WHEC716 Dallas 1101 Avondale SY, Westwego 7.2.1966 1.10.1966 1.10.1967 to Philippines 5.2012 (Ramon Alcaraz)
WHEC717 Mellon 1102 Avondale SY, Westwego 25.7.1966 11.2.1967 22.12.1967 in service (2019)
WHEC718 Chase 1103 Avondale SY, Westwego 15.10.1966 20.5.1967 1.3.1968 to Nigeria 5.2011 (Thunder)
WHEC719 Boutwell 1137 Avondale SY, Westwego 12.12.1966 17.6.1967 14.6.1968 to Philippines 7.2016 (Andres Bonifacio)
WHEC720 Sherman 1138 Avondale SY, Westwego 13.2.1967 23.9.1967 23.8.1968 stricken 3.2018, to Sri Lanka (ගජබාහු [Gajabahu])
WHEC721 Gallatin 1139 Avondale SY, Westwego 17.4.1967 18.11.1967 20.12.1968 to Nigeria 5.2014 (Okpabana)
WHEC722 Morgenthau 1177 Avondale SY, Westwego 17.7.1967 10.2.1968 14.2.1969 to Vietnam 5.2017 (CSB8020)
WHEC723 Rush 1183 Avondale SY, Westwego 23.10.1967 16.11.1968 3.7.1969 to Bangladesh 5.2015 (সমুদ্র অভিযান [Somudra Avijan])
WHEC724 Munro 1560 Avondale SY, Westwego 18.2.1970 5.12.1970 10.9.1971 in service (2019)
WHEC725 Jarvis 1561 Avondale SY, Westwego 9.9.1970 24.4.1971 30.12.1971 to Bangladesh 5.2013 (সমুদ্র জয় [Somudra Joy])
WHEC726 Midgett 1562 Avondale SY, Westwego 5.4.1971 4.9.1971 17.3.1972 in service (2019)



Displacement standard, t

2716

Displacement full, t

3050

Length, m

106.7 wl 115.2 oa

Breadth, m

13.0

Draught, m

6.10

No of shafts

2

Machinery

CODOG: 2 Fairbank Morse diesels / 2 Pratt & Whitney gas turbines

Power, h. p.

7200 / 28000

Max speed, kts

20 / 29

Fuel, t

diesel oil 800

Endurance, nm(kts)

14000(11)

Armament

1 x 1 - 127/38 Mk 30, 2 x (1 - 12.7/90 + 1 - 81/12 M29 mortar), 2 x 3 - 324 Mk 32 TT, 1 HH-52A helicopter, hangar & deck

Electronic equipment

SPS-29D, SPS-64, SPG-35 radars, SQS-36 or SQS-38 sonar, WLR-1H(v)5, WLR-3 ECM suites

Complement

164

Project history: These large high-endurance cutters were among the first US warships lo be powered by gas turbines, Pratt & Whitney FT 4As in a CODOG (Combined Diesel or Gas turbine) system. Such propulsion was specifically justified by the combination of high endurance (I4,000nm at 11kts on diesels) and high maximum speed (29kts on gas turbines, with a range of 2900nm), the latter to run out to the scene of a rescue. There is also a retractable bow manoeuvring unit, described as useful for some oceanographic work. The unusual twin-funnel arrangement can be traced to the desire to place the helicopter pad at the most favourable point in the ship from the point of view of ship motion, about three-quarters of the way aft. The price paid is the narrowness of the hangar, which can accommodate only one HH-52 turbo-shaft helicopter. In the Perry class, a very similar configuration was originally selected (albeit with one rather than two shafts), but the uptakes were amalgamated when the design was altered to accommodate two helicopters: the hangar had to be widened and the helicopter pad consequently moved right aft.

    The design originally called for a Hedgehog superfiring over the single 127mm/38 gun forward, but Hedgehogs were removed from those ships which had them; all have the standard pair of triple Mk 32 lightweight torpedo tubes controlled by a Mk 309 Panel.

Modernizations: 1970s, all: - 2 x (1 - 12.7/90 + 1 - 81/12 M29 mortar); + 2 x 1 - 20/70 Mk 16

1988, Hamilton; 1989, Dallas, Mellon, Munro; 1990, Sherman; 1991, Chase, Boutwell, Morgenthau, Rush; 1992, Gallatin, Jarvis, Midgett: - 1 x 1 - 127/38, SPS-29D, SPG-35 radars, HH-52 helicopter; + 2 x 4 Harpoon SSM launchers (8 RGM-84, provision for); 1 x 1 - 76/62 Mk 75, 2 x 1 - 25/87 Mk 88 Bushmaster, 1 x 6 - 20/76 Mk 15 Phalanx, SPS-40B, SPS-64 (2nd), Mk 92, Mk 90 radars, 2x Mk 36 SRBOC decoy launchers, HH-65 helicopter

1992-1995, all: - 2 x 3 - 324 TT, SQS-36/38 sonar

1998-2000: - 2x SPS-64 radars; + SPS-64(v)6, SPS-73 radars, SCCS CCS

Naval service: No significant events.

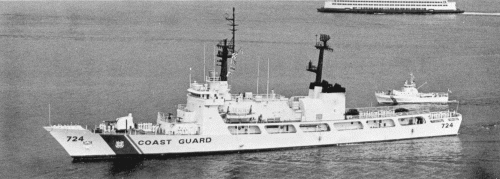

Munro 1978

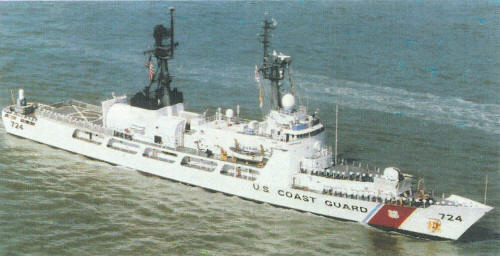

Munro 2003
