| No | Name | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Galveston, 12.1904- Apache | Reeder, Baltimore | 1890 | 18.12.1890 | 8/1891 | to USN 4.1917-8/1919 as gunboat, sold 12.1937 |
|
Displacement normal, t |
|
|
Displacement full, t |
708 |
|
Length, m |
56.5 pp 57.9 oa |
|
Breadth, m |
8.84 |
|
Draught, m |
2.82 |
|
No of shafts |
2 |
|
Machinery |
2 VCE, 2 single-end boilers |
|
Power, h. p. |
1200 |
|
Max speed, kts |
12 |
|
Fuel, t |
coal |
| Endurance, nm(kts) | |
|
Armament |
4 x 1 - 57/40 Hotchkiss Mk I/II |
|
Complement |
41 |
Project history: Iron-hulled revenue service cutter.
Modernizations: 1905: ship was re-engined (1 shaft, 1 VTE)
1917: Apache was armed with 3 x 1 - 76/50 Mk II/III/V/VI
Naval service: No significant events.

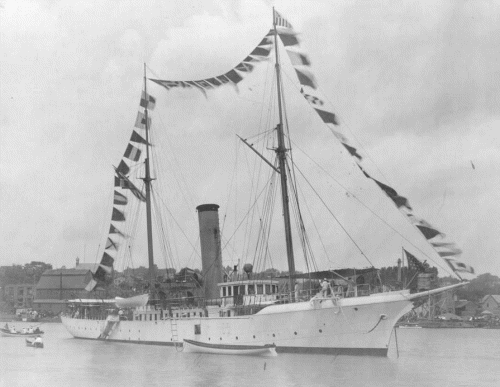

Apache
