Bertholf 2010
| No | Name | Yard No | Builder | Laid down | Launched | Comm | Fate |
| WMSL750 | Bertholf | 4911 | Huntington Ingalls, Pascagoula | 29.3.2005 | 29.11.2006 | 4.8.2008 | in service (2019) |
| WMSL751 | Waesche | 4912 | Huntington Ingalls, Pascagoula | 11.9.2006 | 12.7.2008 | 7.5.2010 | in service (2019) |
| WMSL752 | Stratton | 4913 | Huntington Ingalls, Pascagoula | 20.7.2009 | 17.7.2010 | 31.3.2012 | in service (2019) |
| WMSL753 | Hamilton | 4914 | Huntington Ingalls, Pascagoula | 5.9.2012 | 10.8.2013 | 6.12.2014 | in service (2019) |
| WMSL754 | James | 4915 | Huntington Ingalls, Pascagoula | 17.5.2013 | 3.5.2014 | 8.8.2015 | in service (2019) |
| WMSL755 | Munro | 4916 | Huntington Ingalls, Pascagoula | 5.11.2014 | 12.9.2015 | 1.4.2017 | in service (2019) |
| WMSL756 | Kimball | 4917 | Huntington Ingalls, Pascagoula | 4.3.2016 | 17.12.2016 | 4.3.2017 | in service (2019) |
| WMSL757 | Midgett | 4918 | Huntington Ingalls, Pascagoula | 27.1.2017 | 22.11.2017 | 2019 | building (2019) |
| WMSL758 | Stone | 4919 | Huntington Ingalls, Pascagoula | 2018 | 2019 | 2020 | building (2019) |
| WMSL759 | 4920 | Huntington Ingalls, Pascagoula | 2019 | 2020 | 2021 | ordered (2019) | |
| WMSL760 | 4921 | Huntington Ingalls, Pascagoula | 2020 | 2021 | 2022 | ordered (2019) |
|
Displacement standard, t |
3200 |
|
Displacement full, t |
4500 |
|
Length, m |
118.9 pp 127.4 oa |
|
Breadth, m |
16.5 |
|
Draught, m |
6.40 |
|
No of shafts |
2 |
|
Machinery |
CODAG: 1 General Electric LM-2500 gas turbine + 2 MTU 20V1163 diesels |
|
Power, h. p. |
29500 + 19310 = 48810 |
|
Max speed, kts |
29 |
|
Fuel, t |
diesel/gas turbine oil |
|
Endurance, nm(kts) |
12000(9) |
|
Armament |
1 x 1 - 57/70 Mk 110 Mod. 0, 1 x 6 - 20/76 Mk 15 Phalanx, 4 x 1 - 12.7/90, 1 - 2 helicopters (1 MH-60 or 2 MH-65 or 4 ScanEagle UAV) |
|
Electronic equipment |
TRS-3D/16-ES, SPS-73, SPQ-9B, Furuno radars, EOSS Mk 20 E/O director, Star Safire III E/O detector, SLQ-32(v)2 ECM suite, 2x Mk 36 SRBOC / Mk 53 Nulka decoy RL, SICS CCS |
|
Complement |
116 |
Project history: Deepwater program, later named as National Security Cutter. Have a double helicopter hangsr able to carry 1 MH-60 or 2 MH-65 helicopters, can also carry up to 4 UAVs. Steel construction, conventional monohull design with few stealth features. A dual 13m stern ramp is fitted to launch and recovery OTH-IV 7.6m and LRI 10.7m rescue and inspection RIBs. Typically each ship carries two 7m and one 11m boats. All ships have weight and space allocation for an ASW capability.
Modernizations: None.
Naval service: No significant events.

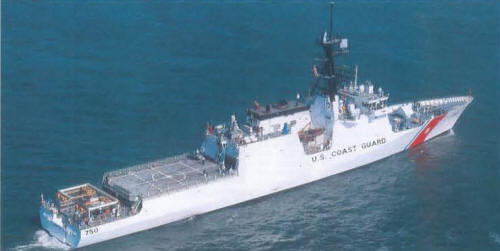

Bertholf 2008
