Alex Hailey 2010
| No | Name | Yard No | Builder | Laid down | Launched | Comm | Fate |
| WMEC39 | Alex Hailey (ex-Edenton) | Brooke Marine, Lowestoft, UK | 1.4.1967 | 15.5.1968 | 23.1.1971 // 17.11.1997 | in service (2019) |
|
Displacement standard, t |
2650 |
|
Displacement full, t |
2929 |
|
Length, m |
80.5 pp 88.0 oa |
|
Breadth, m |
15.3 |
|
Draught, m |
4.60 |
|
No of shafts |
2 |
|
Machinery |
4 Caterpillar 3516 diesels |
|
Power, h. p. |
6800 |
|
Max speed, kts |
16 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
10000(13) |
|
Armament |
2 x 1 - 25/75 Mk 38 Bushmaster, 2 x 1 - 12.7/90, helicopter deck |
|
Electronic equipment |
SPS-73, SPS-40 radar, SCCS CCS |
|
Complement |
99 |
Project history: Former USN salvage and rescue ship ATS1 Edenton, decommissioned to reserve in March 1996 and transferred to the Coast Guard 17.11.1997. She was converted to a USCG cutter at USCG Yard in Curtis Bay, recommissioned 10.7.1999 (formally commissioned 16.12.1999).
Modernizations: None.
Naval service: No significant events.

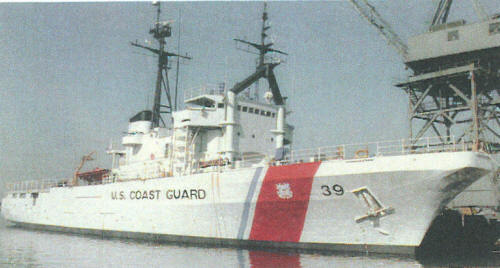

Alex Hailey 1999
