UNITED STATES OF AMERICA



COASTAL FORCES



YP676 training patrol craft (1984 - 1988)

YP676 2000

No Name Yard No Builder Laid down Launched Comm Fate
YP676     Peterson Builders, Sturgeon Bay 7.4.1983 9.4.1984 14.11.1984 stricken 12.2018
YP677     Peterson Builders, Sturgeon Bay 10.10.1983 23.6.1984 5.12.1984 stricken 10.2013
YP678     Peterson Builders, Sturgeon Bay 15.12.1983 3.11.1984 13.5.1985 stricken 11.1998
YP679     Peterson Builders, Sturgeon Bay 18.4.1984 11.12.1984 6.6.1985 auxiliary IX531 8.2001
YP680     Peterson Builders, Sturgeon Bay 2.7.1984 23.3.1985 8.8.1985 stricken 10.2013
YP681     Peterson Builders, Sturgeon Bay 29.10.1984 1.6.1985 30.9.1985 stricken 12.2018
YP682     Peterson Builders, Sturgeon Bay 7.1.1985 3.8.1985 18.11.1985 stricken 10.2013
YP683     Marinette SB 23.7.1985 19.6.1986 13.10.1986 in service (2020)
YP684     Marinette SB 29.8.1985 14.8.1986 10.12.1986 in service (2020)
YP685     Marinette SB 8.10.1985 25.9.1986 23.11.1986 stricken 8.2012
YP686     Marinette SB 23.1.1986 25.10.1986 12.1986 in service (2020)
YP687     Marinette SB 27.2.1986 3.1987 7.3.1987 stricken 12.2018
YP688     Marinette SB 7.4.1986 13.3.1987 22.5.1987 in service (2020)
YP689     Marinette SB 15.7.1986 5.1987 10.6.1987 in service (2020)
YP690     Marinette SB 18.8.1986 4.1987 10.6.1987 in service (2020)
YP691     Marinette SB 28.10.1986 5.1987 7.1987 in service (2020)
YP692     Marinette SB 10.12.1986 18.6.1987 27.7.1987 in service (2020)
YP693     Marinette SB 26.1.1987 14.8.1987 22.9.1987 stricken 3.2001
YP694     Marinette SB 25.2.1987 21.9.1987 27.10.1987 in service (2020)
YP695     Marinette SB 24.3.1987 26.10.1987 1.12.1987 in service (2020)
YP696     Marinette SB 23.4.1987 1988 10.5.1988 stricken 9.2011
YP697     Marinette SB 26.5.1987 1.2.1988 26.5.1988 stricken 10.2014
YP698     Marinette SB 22.6.1987 29.3.1988 16.6.1988 in service (2020)
YP699     Marinette SB 17.8.1987 11.4.1988 30.6.1988 stricken 3.2001
YP700     Marinette SB 22.9.1987 12.5.1988 21.7.1988 in service (2020)
YP701     Marinette SB 28.10.1987 14.6.1988 9.8.1988 in service (2020)
YP702     Marinette SB 10.12.1987 19.7.1988 2.9.1988 stricken 7.2010



Displacement standard, t

160

Displacement full, t

175

Length, m

31.0 pp 32.9 oa

Breadth, m

7.39

Draught, m

1.83

No of shafts

2

Machinery

2 General Motors Detroit Diesel 12V-71N diesels

Power, h. p.

874

Max speed, kts

13

Fuel, t

diesel oil 24
Endurance, nm(kts) 1500(12)

Armament

small arms

Electronic equipment

SPS-64(v)9 radar

Complement 30



Project history: These wooden-construction boats are used mainly for training and are assigned to Annapolis Naval Academy except YP696, 697, 701 and 702. Wooden hull, Aluminium superstructure.

Modernizations: None.

Fate notes: No significant events.

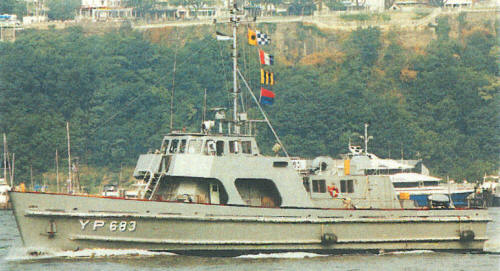

YP683 2000
