25PB0201 2010
|
Names |
from among: 25PN9401 25MPB9501 25MPB0001 25MPB0201-0212 25MPB0301-0302 25MPB0401-0403 25MPB0501 |
|
Builders |
Trinity-Equitable SY, New Orleans: 25PN9401, 25MPB9501, 25MPB0001, 0201-0212, 0301-0302, 0401-0403, 0501 |
|
Commissioned |
1995: 2 boats 1996: 4 boats 1998: 8 boats 1999: 6 boats |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
2016-2018: 25PN9401, 25MPB9501, 25MPB0001, 25PB0201-0212, 0301-0302, 0401-0403, 0501 |
|
Displacement standard, t |
57 |
|
Displacement full, t |
68 |
|
Length, m |
25.0 |
|
Breadth, m |
5.33 |
|
Draught, m |
1.32 |
|
No of shafts |
2 waterjets |
|
Machinery |
2 MTU 16V396 TE94 diesels |
|
Power, h. p. |
4570 |
|
Max speed, kts |
45 |
|
Fuel, t |
diesel oil 8 |
| Endurance, nm(kts) | 515(35) |
|
Armament |
(2 - 4) x 2 - 12.7/90, 2 x 1 - 7.6/90, 2 x 1 - 40/17 Mk 19 Mod. 3 grenade launchers |
| Military load | 16 special forces personnel |
|
Electronic equipment |
Furuno radar, Bobcat ECM |
| Complement | 5 |

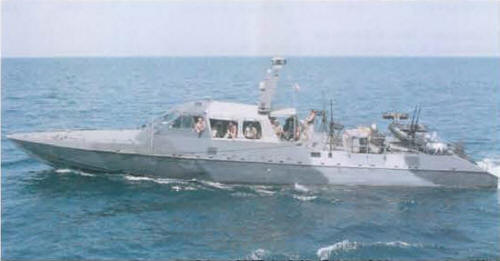

Project history: Special Operation Craft. Aluminium construction. Can be transported on its trailer by C-5 argo aircraft. Each boat can launch and retrieve four inflated rubber raiding craft. Had five weapon mounting positions, each suitable for 40mm grenade launcher or twin 12.7mm MG or 7.62mm MG. Can also carry Stinger SAMs.
Modernizations: None.
Naval service: No significant events.
2007
