Names |
36AT721-729 36AT7210-7217 36AT761-768 |
|
Builders |
Sewart Seacraft, Morgan City: 36AT721-729, 36AT7210-7217 Marinette Marine: 36AT761-768 |
|
Commissioned |
1972: 36AT721-729, 36AT7210-7217 1977: 36AT761-768 |
|
Losses |
? |
|
Transfers |
none |
|
Discarding |
late 1990s: 36AT721-729, 36AT7210-7217, 36AT761-768 |
|
Displacement standard, t |
10 |
|
Displacement full, t |
13 |
|
Length, m |
11.0 |
|
Breadth, m |
3.89 |
|
Draught, m |
0.30 |
|
No of shafts |
2 waterjets |
|
Machinery |
2 General Motors 8V53N diesels |
|
Power, h. p. |
566 |
|
Max speed, kts |
28.5 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
37(28) |
|
Armament |
4 x 1 - 12.7/90, 1 x 1 - 40/17 Mk 19 grenade launcher, 1 x 1 - 60/17 M224 mortar |
| Military load | 15 troops |
|
Electronic equipment |
2 |
|
Complement |
4 |

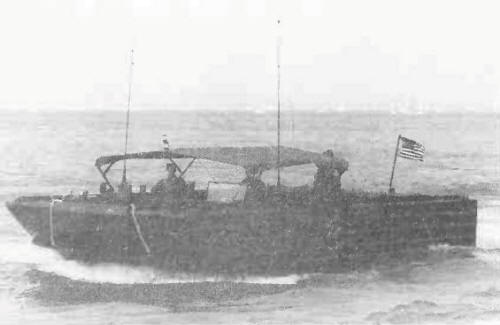

Project history: Aluminium assault riverine craft with rectangular platform and bow ramp, very quiet in operation.
Modernizations: None.
Naval service: Boats were actively used in Vietnam.
1987
© Ivan Gogin, 2015
