UNITED STATES NAVY (UNITED STATES OF AMERICA)

AIRCRAFT CARRYING SHIPS

TANGIER seaplane tenders (1940-1941)

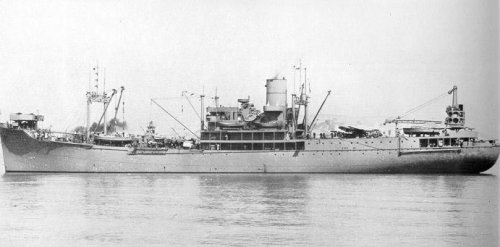

Tangier 1942

No Name Yard No Builder Laid down Launched Comm Fate
AV8 Tangier (ex-Sea Arrow) 195 Moore, Oakland 13.3.1939 15.9.1939 25.8.1940 stricken 6.1961
AV9 Pocomoke (ex-Exchequer) 254 Ingalls, Pascagoula 14.8.1938 8.6.1940 18.7.1941 stricken 6.1961



Displacement standard, t

11760

Displacement full, t

13500

Length, m

150.0

Breadth, m

21.2

Draught, m

7.24 full load

No of shafts

1

Machinery

1 set geared steam turbines, 2 boilers

Power, h. p.

8500

Max speed, kts

16.5

Fuel, t

AV8: oil 1309

AV9: oil 1313

Endurance, nm(kts)



Armament

4 x 1 - 127/51 Mk 7.8.15, 8 x 1 - 12.7/90, 24 seaplanes (SOC/SON, OS2U)

Electronic equipment



Complement

1075

Aircraft facilities: Aircraft fuel stowage was 1 101 500 l. There was 1 heavy crane for handling seaplanes.

Project history: Seaplane tenders in standard C3-S type cargo hulls. They were purchased by Navy already after launching and converted while outfitted afloat. The aviation deck for seaplane maintenance was arranged aft from superstructure and raised one level over a cargo deck. The crane for aircraft handling was placed on stern. Cargo holds were arranged for storage of various aviation equipment and an aviation fuel.

Modernizations: 1942 - 1943, both: - 4 x 1 - 127/51, 8 x 1 - 12.7/90; + 1 x 1 - 127/38 Mk 12, 4 x 1 - 76/50 Mk 20, 4 x 2 - 40/56 Mk 1.2, 15 x 1 - 20/70 Mk 4, presumably SG, SK, Mk 26 radars

1.1946, both: 41 x 1 - 127/38 Mk 30, 4 x 1 - 76/50 Mk 22, 4 x 2 - 40/60 Mk 1, 15 x 1 - 20/70 Mk 10, 24 seaplanes, presumably SG, SK, Mk 26 radars

Naval service: No significant events.

Tangier
