UNITED STATES NAVY (UNITED STATES OF AMERICA)

AIRCRAFT CARRYING SHIPS

KENNETH WHITING seaplane tenders (1944)

nearly sister-ship Tangier 1942

No Name Yard No Builder Laid down Launched Comm Fate
AV14 Kenneth Whiting 50 Todd, Tacoma 19.6.1943 15.12.1943 8.5.1944 stricken 7.1961
AV15 Hamlin 51 Todd, Tacoma 19.7.1943 11.1.1944 26.6.1944 stricken 7.1963
AV16 St. George 52 Todd, Tacoma 4.8.1943 14.2.1944 24.7.1944 stricken 7.1963
AV17 Cumberland Sound 53 Todd, Tacoma 25.8.1943 11.1.1944 21.8.1944 stricken 7.1961
AV18 Townsend 54 Todd, Tacoma 1944 --- --- cancelled 8.1945
AV19 Calibogue   Puget Sound N Yd 1944 --- --- cancelled 10.1944
AV20 Hobe Sound   Charleston N Yd 1944 --- --- cancelled 10.1944



Displacement standard, t

10500

Displacement full, t

12610

Length, m

150.0

Breadth, m

21.2

Draught, m

7.24 full load

No of shafts

1

Machinery

geared steam turbines, 2 boilers

Power, h. p.

8500

Max speed, kts

16.5

Fuel, t

AV14-17: oil 1556

AV19: oil 1309

Endurance, nm(kts)



Armament

2 x 1 - 127/38 Mk 12, 2 x 4 - 40/56 Mk 1.2, 2 x 2 - 40/56 Mk 1.2, 16 x 1 - 20/70 Mk 4, 24 seaplanes (SOC/SON, SO3C, OS2U/OS2N)

Electronic equipment

presumably SG, SK, Mk 26 radars

Complement

1077

Aircraft facilities: Aircraft fuel stowage was 1 180 900 l. There was 1 heavy crane for handling seaplanes.

Project history: In 1941 Navy ordered some more seaplane tenders in standard C3-S type cargo hulls. They were purchased by Navy already after launching and converted while outfitted afloat. The aviation deck for seaplane maintenance was arranged aft from superstructure and raised one level over a cargo deck. The crane for aircraft handling was placed on stern. Cargo holds were arranged for storage of various aviation equipment and aviation fuel.

 Seven ships of Kenneth Whiting class were built in modified C3-S-A1 type dry cargo carrier hulls.

Modernizations:  None.

1.1946: 2 x 1 - 127/38 Mk 30, 2 x 4 - 40/560 Mk 2, 2 x 2 - 40/60 Mk 1, 16 x 1 - 20/70 Mk 10, 24 seaplanes, presumably SG, SK, Mk 26 radars

Naval service: No significant events.

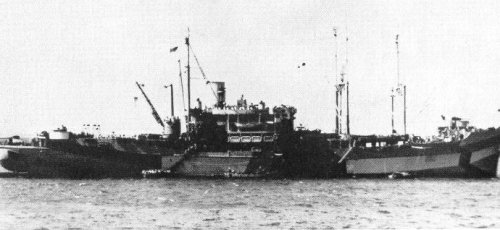

Hamlin
