UNITED STATES NAVY (UNITED STATES OF AMERICA)

AIRCRAFT CARRYING SHIPS

CURTISS seaplane tenders (1940)

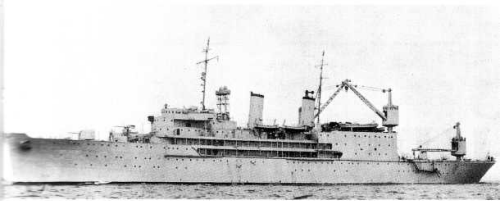

Curtiss 1963

No Name Yard No Builder Laid down Launched Comm Fate
AV4 Curtiss 418 New York SB, Camden 3/1938 20.4.1940 11.1940 stricken 7.1963
AV5 Albemarle 420 New York SB, Camden 6.1939 13.7.1940 12.1940 repair ship for helicopters ARVH1 Corpus Christi Bay 3.1965, stricken 12.1974



Displacement standard, t

12053

Displacement full, t

14900

Length, m

154.8 wl 160.7 oa

Breadth, m

21.1

Draught, m

6.50 full load

No of shafts

2

Machinery

2 sets Parsons geared steam turbines, 4 Babcock & Wilcox boilers

Power, h. p.

12000

Max speed, kts

18

Fuel, t

oil 2164
Endurance, nm(kts)

Armament

4 x 1 - 127/38 Mk 12, 10 x 1 - 12.7/90, 30 seaplanes (SOC/SON, OS2U)

Complement

1195

Aircraft facilities: Aircraft fuel stowage was 1 020 500 l. There were 3 heavy cranes for handling seaplanes.

Project history: First USN modern purpose-built seaplane tenders. According to the design, each of them should maintain two seaplane squadrons and provide small repair of aircraft. For this purpose the deck aft has been exempted for placing of aircrafts requiring repair, and there was a hangar in a superstructure with necessary equipment. Seaplanes were lifted onboard by three powerful cranes (one on aft part of the aviation deck and two on a superstructure). Hull had underwater protection, aviation fuel tanks took places below a waterline. Total stowage of an aviation fuel notably exceeded accepted for aircraft carriers.

Ship protection: There was 4-compartment underwater protection.

Modernizations:  1941, Curtiss: + CXAM-1 radar

1942 - 1943, both: - 10 x 1 - 12.7/90; + 2 x 4 - 40/56 Mk 1.2, 12 x 1 - 20/70 Mk 4, Mk 26 radar

1945, Curtiss: (presumably) - CXAM-1 radar

1944 - 1945, both: + 2 x 4 - 40/56 Mk 1.2, presumably SG, SK radars

1.1946, both: 4 x 1 - 127/38 Mk 30, 4 x 4 - 40/60 Mk 2, 12 x 1 - 20/70 Mk 10, 30 seaplanes, presumably SG, SK, Mk 26 radars

Naval service: Curtiss was badly damaged 21.6.1945 by kamikaze at Okinawa. Albermarle after conversion was used for repair of army helicopters in Vietnam.



Curtiss 1940
