UNITED STATES NAVY (UNITED STATES OF AMERICA)

AIRCRAFT CARRYING SHIPS

CURRITUCK seaplane tenders (1944-1945)

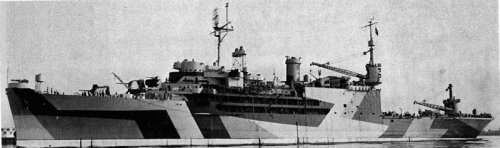

Currituck 1945

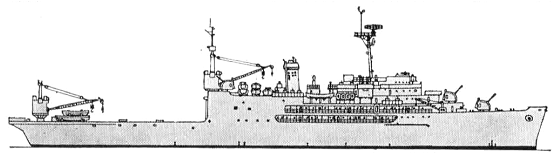

Currituck 1968

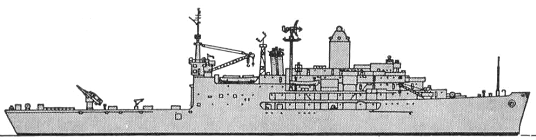

Norton Sound 1970

No Name Yard No Builder Laid down Launched Comm Fate
AV7 Currituck   Philadelphia N Yd 14.12.1942 11.9.1943 26.6.1944 stricken 4.1971
AV11 Norton Sound 61 Todd, San Pedro 7.9.1942 28.11.1943 8.1.1945 guided missile test ship AVM1 8.1951, stricken 1.1987
AV12 Pine Island 62 Todd, San Pedro 16.11.1942 26.2.1944 26.4.1945 stricken 2.1971
AV13 Salisbury Sound (ex-Puget Sound) 63 Todd, San Pedro 10.4.1943 18.6.1944 26.11.1945 stricken 1971



Displacement standard, t

12100

Displacement full, t

15092

Length, m

158.5 wl 164.7 oa

Breadth, m

21.1

Draught, m

6.78 full load

No of shafts

2

Machinery

2 sets Parsons geared steam turbines, 4 Babcock & Wilcox boilers

Power, h. p.

12000

Max speed, kts

19.2

Fuel, t

oil 2324
Endurance, nm(kts)

Armament

AV7: 4 x 1 - 127/38 Mk 12, 4 x 4 - 40/56 Mk 1.2, 30 seaplanes (SOC, OS2U)

AV11 - 13: 4 x 1 - 127/38 Mk 12, 4 x 4 - 40/56 Mk 1.2, 30 seaplanes (OS2U, SC)

Electronic equipment

presumably SG, SK, Mk 26 radars

Complement

1247

Aircraft facilities: Aircraft fuel stowage was 1 052 200 l. There were 3 heavy cranes for handling seaplanes and transverse catapult H-5. Marine Corps dive bombers can be launched from catapult with landing on coastal airfields.

Project history: Development of Curtiss class. The basic difference was included in the increased sizes of aviation deck on stern. Hangar has been moved fwd, that, in turn, has demanded to re-plan funnels, trunking them into the one. It became the most appreciable visual difference from two-funneled Curtiss class. The following changes brought in the design were transverse catapult on an aviation deck and increased aviation fuel stowage. Being designing in 1941 it was supposed to protect ships by 51mm armour deck (the hull beam was to be increased on 0.7m), but these plans have not been realised. AA armament, in comparison with predecessors, was appreciable strengthened: 2x4 28mm MG mounts and 4 12.7mm MGs were provided. Already before completion unsuccessful 28mm MGs were replaced by 40mm Boforses.

Ship protection: There was 4-compartment underwater protection.

Modernizations: None.

1/1946, all: 4 x 1 - 127/38 Mk 30, 4 x 4 - 40/60 Mk 2, 30 seaplanes, presumably SG, SK, Mk 26 radars

1960s, all survived: + WLR-1, ULQ-6 ECM suites

Naval service: Norton Sound in role of test ship was used in many missiles tests and ended service as Aegis test ship (from 1974).

Currituck
