Absecon 1943
Barataria 1945
Casco 1963
Corson 1963
Valcour 1968
Cook Inlet 1970
No | Name | Yard No | Builder | Laid down | Launched | Comm | Fate |
AVP10 | Barnegat | Puget Sound N Yd, Bremerton | 10.1939 | 23.5.1941 | 7/1941 | stricken 5.1958 | |
AVP11, 10.1944- AGC18, 7.1946- WAVP385, 5.1966- WHEC385 | Biscayne, 7.1946- Dexter | Puget Sound N Yd, Bremerton | 1939 | 23.5.1941 | 7.1941 | amphibious command ship 4.1943, Coast Guard cutter 7.1946, training Coast Guard cutter 7.1958, stricken 7.1968 | |
AVP12, 4.1949- WAVP370, 5.1966- WHEC370 | Casco | Puget Sound N Yd, Bremerton | 5.1940 | 12.11.1941 | 12.1941 | Coast Guard cutter 4.1949, stricken 3.1969 | |
AVP13, 4.1949- WAVP371, 5.1966- WHEC371 | Mackinac | Puget Sound N Yd, Bremerton | 5.1940 | 15.11.1941 | 1.1942 | Coast Guard cutter 4.1949, stricken 7.1968 | |
AVP21, 7.1945- AG121, 9.1945- AVP21, 1.1949- WAVP372, 5.1966- WHEC372 | Humboldt | Boston N Yd, Charlestown | 9.1940 | 17.3.1941 | 7.1941 | Coast Guard cutter 1.1949, stricken 9.1969 | |
AVP22, 7.1945- AG122, 9.1945- AVP22, 3.1949- WAVP373, 5.1966- WHEC373 | Matagorda | Boston N Yd, Charlestown | 9.1940 | 18.3.1941 | 12.1941 | Coast Guard cutter 3.1949, stricken 7.1968 | |
AVP23, 1.1949- WAVP374, 5.1966- WHEC374 | Absecon | Lake Washington, Houghton | 7.1941 | 8.3.1942 | 1.1943 | Coast Guard cutter 1.1949, to South Vietnam 6.1972 (Phạm Ngũ Lão) | |
AVP24, 3.1949- WAVP375, 5.1966 - WHEC375 | Chincoteague | Lake Washington, Houghton | 7.1941 | 15.4.1942 | 4.1943 | Coast Guard cutter 3.1949, to South Vietnam 6.1972 (Lý Thường Kiệt) | |
AVP25, 1.1949- WAVP376, 5.1966 - WHEC376 | Coos Bay | Lake Washington, Houghton | 8.1941 | 15.5.1942 | 5.1943 | Coast Guard cutter 1.1949, stricken 9.1967 | |
AVP26, 9.1948- WAVP378, 5.1966- WHEC378 | Half Moon | Lake Washington, Houghton | 3.1942 | 12.7.1942 | 6.1943 | Coast Guard cutter 9.1948, stricken 7.1969 | |
AVP27 | Mobjack | Lake Washington, Houghton | 2.1942 | 2.8.1942 | 10.1943 // --- | completed as motor torpedo boat depot ship AGP7 | |
AVP28 | Oyster Bay | Lake Washington, Houghton | 4.1942 | 7.9.1942 | 11.1943 // --- | completed as motor torpedo boat depot ship AGP6 | |
AVP29, 12.1948- WAVP377, 1965- WAGO377, 5.1966- WHEC377, 9.1971- WOLE377 | Rockaway | 29 | Associated, Seattle | 6.1941 | 14.2.1942 | 1.1943 | Coast Guard cutter 12.1948, Coast Guard survey vessel 1965, Coast Guard cutter 5.1966, Coast Guard off-shore law enforcement vessel 9.1971, stricken 1.1972 |
AVP30 | San Pablo | 30 | Associated, Seattle | 7.1941 | 31.3.1942 | 3.1943 | survey vessel AGS30 8.1949 |
AVP31, 9.1948- WAVP379, 5.1966- WHEC379, 11.1969- WTR379, 8.1977- WHEC379 | Unimak | 31 | Associated, Seattle | 2.1942 | 27.5.1942 | 12.1943 | Coast Guard cutter 9.1948, training Coast Guard cutter 11.1969, Coast Guard cutter 8.1977, stricken 4.1988 |
AVP32, 8.1948- WAVP380, 5.1966- WHEC380 | Yakutat | 32 | Associated, Seattle | 4.1942 | 2.7.1942 | 3.1944 | Coast Guard cutter 8.1948, to South Vietnam 1.1971 (Trần Nhật Duật) |
AVP33, 9.1948- WAVP381, 5.1966- WHEC381 | Barataria | Lake Washington, Houghton | 4.1943 | 2.10.1943 | 8.1944 | Coast Guard cutter 9.1948, decommissioned 8.1969, sold 10.1970 | |
AVP34, 9.1948- WAVP382, 5.1966- WHEC382 | Bering Strait | Lake Washington, Houghton | 6.1943 | 15.1.1944 | 7.1944 | Coast Guard cutter 9.1948, to South Vietnam 1.1971 (Trần Quang Khải) | |
AVP35, 9.1948- WAVP383, 5.1966- WHEC383 | Castle Rock | Lake Washington, Houghton | 7.1943 | 11.3.1944 | 10.1944 | Coast Guard cutter 9.1948, to South Vietnam 12.1971 (Trần Bình Trọng) | |
AVP36, 9.1948- WAVP384, 5.1966- WHEC384 | Cook Inlet | Lake Washington, Houghton | 8.1943 | 13.5.1944 | 11.1944 | Coast Guard cutter 9.1948, to South Vietnam 12.1971 (Trần Quốc Toản) | |
AVP37 | Corson | Lake Washington, Houghton | 10.1943 | 15.7.1944 | 12.1944 | stricken 4.1966 | |
AVP38 | Duxbury Bay | Lake Washington, Houghton | 1.1944 | 2.10.1944 | 12.1944 | stricken 5.1966 | |
AVP39 | Gardiners Bay | Lake Washington, Houghton | 3.1944 | 2.12.1944 | 2.1945 | to Norway 5.1958 (Haakon VII) | |
AVP40 | Floyds Bay | Lake Washington, Houghton | 5.1944 | 28.1.1945 | 3.1945 | stricken 3.1960 | |
AVP41 | Greenwich Bay | Lake Washington, Houghton | 7.1944 | 18.3.1945 | 5.1945 | stricken 7.1966 | |
AVP42 | Hatteras | Lake Washington, Houghton | --- | --- | --- | cancelled 4.1943 | |
AVP43 | Hempstead | Lake Washington, Houghton | --- | --- | --- | cancelled 4.1943 | |
AVP44 | Kamishak | Lake Washington, Houghton | --- | --- | --- | cancelled 4.1943 | |
AVP45 | Magothy | Lake Washington, Houghton | --- | --- | --- | cancelled 4.1943 | |
AVP46 | Matanzas | Lake Washington, Houghton | --- | --- | --- | cancelled 4.1943 | |
AVP47 | Metomkin | Lake Washington, Houghton | --- | --- | --- | cancelled 4.1943 | |
AVP48 | Onslow | Lake Washington, Houghton | 5.1942 | 20.9.1942 | 12.1943 | stricken 6.1960 | |
AVP49 | Orca | Lake Washington, Houghton | 7.1942 | 4.10.1942 | 1.1944 | to Ethiopia 1.1962 (ኢትዮጵያ [Ethiopia]) | |
AVP50 | Rehoboth | Lake Washington, Houghton | 8.1942 | 8.11.1942 | 2.1944 | survey ship AGS50 11.1949 | |
AVP51 | San Carlos | Lake Washington, Houghton | 9.1942 | 20.12.1942 | 3.1944 | oceanographic research ship AGOR1 Josiah Willard Gibbs 12.1958 | |
AVP52 | Shelikof | Lake Washington, Houghton | 9.1942 | 31.3.1943 | 4.1944 | stricken 5.1960 | |
AVP53 | Suisun | Lake Washington, Houghton | 10.1942 | 14.3.1943 | 9.1944 | stricken 4.1966 | |
AVP54 | Timbalier | Lake Washington, Houghton | 11.1942 | 18.4.1943 | 5.1946 | stricken 5.1960 | |
AVP55, 12.1965- AGF1 | Valcour | Lake Washington, Houghton | 12.1942 | 5.7.1943 | 7.1946 | command ship 12.1965, stricken 1.1973 | |
AVP56, 5.1946- WAVP386, 5.1966- WHEC386 | Wachapreague, 5.1946- McCulloch | Lake Washington, Houghton | 2.1943 | 10.7.1943 | 5.1944 // 5.1946 | completed as motor torpedo boat depot ship AGP8, Coast Guard cutter 5.1946, to South Vietnam 6.1972 (Ngô Quyền) | |
AVP57, 6.1946- WAVP387, 5.1966- WHEC387 | Willoughby, 6.1946- Gresham | Lake Washington, Houghton | 3.1943 | 21.8.1943 | 6.1944 // 6.1946 | completed as motor torpedo boat depot ship AGP9, Coast Guard cutter 6.1946, weather ship WAGW387 2.1970 |
Displacement standard, t |
2040 |
Displacement full, t |
2410 - 2620 |
Length, m |
91.4 wl 94.7 oa |
Breadth, m |
12.5 |
Draught, m |
3.78 full load |
No of shafts |
2 |
Machinery |
4 Fairbank-Morse 38D81/8x10 diesel-generators, 2 electric motors |
Power, h. p. |
6080 |
Max speed, kts |
20 |
Fuel, t |
diesel oil 260 |
Endurance, nm(kts) | 6000 (12) |
Armament |
AVP10 - 13, 21, 22: 2 x 1 - 127/38 Mk 12, 4 x 1 - 12.7/90, 12 seaplanes (SOC, OS2U) AVP23 - 26, 29 - 32, 48 - 51: 4 x 1 - 127/38 Mk 12, 4 x 2 - 20/70 Mk 4, 2 DCT, 2 DCR, 12 seaplanes (SOC, SO3C, OS2U) AVP33: 4 x 1 - 127/38 Mk 12, 4 x 2 - 20/70 Mk 4, 2 DCT, 2 DCR, 12 seaplanes (SOC, OS2U) AVP34: 1 x 1 - 127/38 Mk 12, 1 x 4 - 40/56 Mk 1.2, 2 x 2 - 40/56 Mk 1.2, 6 x 1 - 20/70 Mk 4, 2 DCT, 2 DCR, 12 seaplanes (SOC, OS2U) AVP35 - 38: 1 x 1 - 127/38 Mk 12, 1 x 4 - 40/56 Mk 1.2, 2 x 2 - 40/56 Mk 1.2, 6 x 1 - 20/70 Mk 4, 2 DCT, 2 DCR, 12 seaplanes (SOC, SC, OS2U) AVP39 - 41: 1 x 1 - 127/38 Mk 12, 1 x 4 - 40/56 Mk 1.2, 2 x 2 - 40/56 Mk 1.2, 6 x 1 - 20/70 Mk 4, 2 DCT, 2 DCR, 12 seaplanes (SC, OS2U) AVP52, 53: 2 x 1 - 127/38 Mk 12, 4 x 2 - 20/70 Mk 4, 2 DCT, 2 DCR, 12 seaplanes (SOC, OS2U, SC) AVP54, 55: 2 x 1 - 127/38 Mk 30, 4 x 2 - 20/70 Mk 24, 2 DCT, 2 DCR, 12 seaplanes (OS2U, SC) WAVP386, 387: 1 x 1 - 127/38 Mk 30, 2 x 2 - 40/56 Mk 1, 1 x 24 - 178 Hedgehog Mk 15 ASWRL, 4 DCT |
Electronic equipment |
presumably SA, SF or SL or SU, Mk 26 radars, QCJ sonar |
Complement |
367 |
Aircraft facilities: Aircraft fuel stowage was 303 000 l. There was 1 crane for handling seaplanes.
Project history: Unique American purpose-built small seaplane tenders. Intended for seaplane maintenance on distant Pacific islands and atolls with a harbour shallow depth that has predetermined occurrence in the design assignment of strong draught limitations. As in a wartime it was supposed to attract these ships as escorts of large tenders, the project provided fitting of anti-submarine armament and sonar.
Small seaplane tenders could provide basing of one seaplanes squadron. Designed armament was limited by two DP 127/38mm guns and 4 12.7mm MGs, but in 1942, when the first ships of this class were already commissioned, the new structure of armament has been approved: 4x1 127/38mm, 8x1 20mm MGs and 2 DCTs. Really ships were commissioned having from one to four 127mm guns and 6-8 20mm MGs.
In total 39 ships of this type have been ordered, the order for six of them later had canceled, four were completed as PT depot ships (AGP6-9).
Modernizations: 1943, Absecon: was converted to training ship for cruisers air groups. One catapult was fitted. - 2 x 1 -127/38, 2 DCT, 2 DCR
1943 - 1944, Barnegat, Biscayne, Casco, Mackinac, Humboldt, Matagorda: - 4 x 1 - 12.7/90; + 4 x 2 - 20/70 Mk 4, 2 DCT, 2 DCR
1943 - 1944, Chincoteague, Half Moon, Rockaway, San Pablo, Unimak, Yakutat, Onslow, Orca, Rehoboth, San Carlos, Barataria: - 2 x 1 - 127/38
1943 - 1944, Coos Bay: - 2 x 1 - 127/38; + 2 x 4 - 178 Mousetrap Mk 20 ASWRL
1944 - 1945, many ships: - 1 x 1 -127/38; + 1 x 4 - 40/56 Mk 1.2
1/1946, Barnegat, Biscayne, Casco, Mackinac, Humboldt, Matagorda, Chincoteague, Half Moon, Rockaway, San Pablo, Unimak, Yakutat, Barataria, Onslow, Orca, Rehoboth, San Carlos, Shelikof, Suisun: 1 x 1 - 127/38 Mk 30, 1 x 4 - 40/60 Mk 2, 4 x 2 - 20/70 Mk 24, 2 DCT, 2 DCR, 12 seaplanes, presumably SA, SF or SL or SU, Mk 26 radars, QGa sonar
1/1946, Absecon: 1 x 1 - 127/38 Mk 30, 1 x 4 - 40/60 Mk 2, 4 x 2 - 20/70 Mk 24, 1 catapult, 12 seaplanes, presumably SA, SF or SL or SU, Mk 26 radars, QGa sonar
1/1946, Coos Bay: 1 x 1 - 127/38 Mk 30, 1 x 4 - 40/60 Mk 2, 4 x 2 - 20/70 Mk 24, 2 x 4 - 178 Mousetrap Mk 20 ASWRL, 2 DCT, 2 DCR, 12 seaplanes, presumably SA, SF or SL or SU, Mk 26 radars, QGa sonar
1/1946, Bering Strait, Castle Rock, Cook Inlet, Corson, Duxbury Bay, Gardiners Bay, Floyd Bay, Greenwich Bay: 1 x 1 - 127/38 Mk 30, 1 x 4 - 40/60 Mk 2, 2 x 2 - 40/60 Mk 1, 6 x 1 - 20/70 Mk 10, 2 DCT, 2 DCR, 12 seaplanes, presumably SA, SF or SL or SU, Mk 26 radars, QGa sonar
1946-1949, Casco, Mackinac, Humboldt, Matagorda, Chincoteague, Coos Bay, Half Moon, Rockaway, Unimak, Yakutat, Barataria, Bering Strait, Castle Rock, Cook Inlet received new armament consisted of 1 x 1 - 127/38 Mk 30, 2 x 2 - 40/60 Mk 1, 1 x 24 - 178 Hedgehog Mk 15 ASWRL, 4 DCT, meteorological balloon, SA, SF or SL, SU, Mk 26 radars, QGa sonar
1948, Dexter received new armament consisted of 1 x 1 - 127/38 Mk 30, 1 x 24 - 178 Hedgehog Mk 15 ASWRL, 4 DCT, meteorological balloon, SA, SF or SL, SU, Mk 26 radars, QGa sonar
1948, Absecon received new armament consisted of 1 x 1 - 127/38 Mk 30, 1 x 4 - 40/60 Mk 2, 1 x 24 - 178 Hedgehog Mk 15 ASWRL, 4 DCT, meteorological baloon, SA, SF or SL, SU, Mk 26 radars, QGa sonar
1957, Dexter: diesels were replaced by new Fairbank-Morse.
early 1960s, all survived Coast Guard cutters: + SPQ-10 radar
1960s, all survived: - SA, SF or SL, SU radars; + SPS-6, SPS-10 radars
mid-1960s, all survived Coast Guard cutters: - balloon; + 2 x 3 - 324 ASW TT
Naval service: Absecon was completed as TS for training of pilots of shipboard seaplanes and equipped by a catapult (originally intended for one of incomplete Cleveland class cruiser). Chincoteague 17.7.1943 was damaged by Japanese aircraft. Orca 5.1.1945 was damaged by kamikaze.

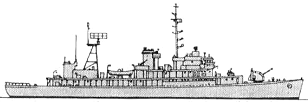

San Carlos 1944
