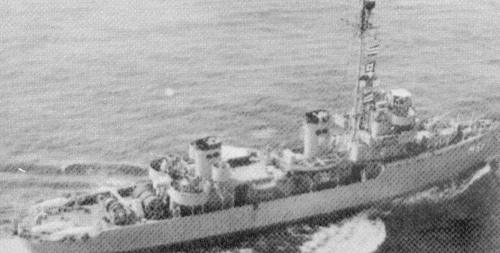

Comandante Pedro Campbell 1970
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Comandante Pedro Campbell (ex-Chickadee) | MSF1, 1976- 4, 1990- 24 | Defoe, Bay City, USA | 8.1941 | 20.7.1942 | 11.1942 // 8.1966 | Antarctic supply ship 1990, patrol 1997, stricken 2002 |
|
Displacement standard, t |
890 |
|
Displacement full, t |
1250 |
|
Length, m |
65.5 wl 67.4 oa |
|
Breadth, m |
9.80 |
|
Draught, m |
3.28 full load |
|
No of shafts |
2 |
|
Machinery |
2 electric motors, 4 Alco 539 diesel-generators |
|
Power, h. p. |
2880 |
|
Max speed, kts |
18 |
|
Fuel, t |
diesel oil 200 |
| Endurance, nm(kts) | 6370 (16.5) |
|
Armament |
2 x 1 - 76/50 Mk 22, 2 x 2 - 40/60 Mk 1, 2 x 2 - 20/70 Mk 24 |
| Electronic equipment | 2x radars |
|
Complement |
105 |
Project history: Former USN Auk class minesweepers, reclassified as corvette after transfer.
Modernizations: None.
Naval service: In 1990 Comandante Pedro Campbell was converted for service as a supply ship for the General Artigas Base in Antarctic in 1990 but in 1997 she had been rearmed and re-converted to patrol ship.
Comandante Pedro Campbell 1971
