URUGUAYAN NAVY (URUGUAY)

COASTAL FORCES

15 DE NOVIEMBRE large patrol craft (1981)

Name No Yard No Builder Laid down Launched Comp Fate
Quince de Noviembre (15 de Noviembre) 5   CMN, Cherbourg, France 6.12.1979 16.10.1980 27.2.1981 stricken 2013-14
Veinticinco de Agosto (25 de Agosto) 6   CMN, Cherbourg, France 6.2.1980 11.112/1980 25.3.1981 stricken 2013-14
Comodoro Coé 7   CMN, Cherbourg, France 16.5.1980 27.1.1981 25.3.1981 stricken 2010



Displacement standard, t

166

Displacement full, t

190

Length, m

38.0 pp 41.2 oa

Breadth, m

6.80

Draught, m

1.56 hull 2.50 max

No of shafts

2

Machinery

2 MTU 12V538 TB91 diesels

Power, h. p.

4600

Max speed, kts

28

Fuel, t

diesel oil

Endurance, nm(kts) 2400(15)

Armament

1 x 1 - 40/70 Bofors 564

Electronic equipment

Decca TM1226C, Decca 1229 radars, Panda e/o system

Complement

27

Project history: French 'Vigilante' type large patrol craft. Planned twin 20mm Oerlikon aft was never mounted.

Modernizations: None.

Naval service: No significant events.

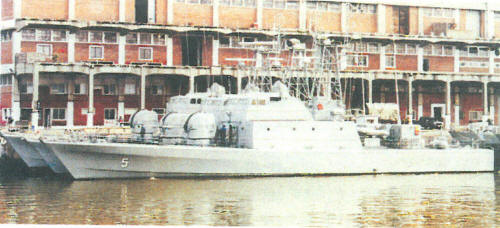

15 de Noviembre 2001
