Zhovty Vody 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Жовтi Води [Zhovti Vody] (ex-Зенитчик [Zenitchik]), 6.2004- Чернiгiв [Cernigiv] | U310 | 928 | Sredne-Nevskiy, Pontonnyy, USSR | 10.9.1974 // 5.8.1997 | captured by Russia 24.3.2014 | ||
| Черкаси [Cherkasy] (ex-Разведчик [Razvedchik]) | U311 | 950 | Sredne-Nevskiy, Pontonnyy, USSR | 10.6.1977 // 25.7.1997 | captured by Russia 26.3.2014 |
|
Displacement standard, t |
745 |
|
Displacement full, t |
800 |
|
Length, m |
61.0 |
|
Breadth, m |
10.2 |
|
Draught, m |
2.97 |
|
No of shafts |
2 |
|
Machinery |
2 M-503B-37 diesels |
|
Power, h. p. |
5000 |
|
Max speed, kts |
16.5 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1500(12) |
|
Armament |
2 x 4 Strela-2 SAM (16 9M32), 2 x 2 - 30/71 AK-230M, 2 x 2 - 25/82 2M-3M, 2 x 5 RBU-1200M Uragan ASWRL, 2 DCR (32) or 7 KMD-1000 mines, KIU-1 USV, BKT mechanical, TEM-4 magnetic, AT-3 acoustic minesweeping gear, ShZ-1 or ShZ-2 mine clearance line charges |
|
Electronic equipment |
MR-302 Rubka, MR-104 Rys', 2x Don-D radars, MG-69 Lan', MG-79 Mezen' sonars |
|
Complement |
68 |
Project history: Former Soviet project 266M oceangoing minesweepers.
Modernizations: None.
Naval service: Zhovti Vody 24.3.2014 and Cherkasy 26.3.2014 were captured by Russian troops on Donuzlav Lake. They never entered Russian Navy and Russian Government invited Ukraine to take them back, but later, when Ukraine initiated civil war in Donbass, Russian Naval Staff announced that Ukrainian ships will be returned when war in Donbass ends.

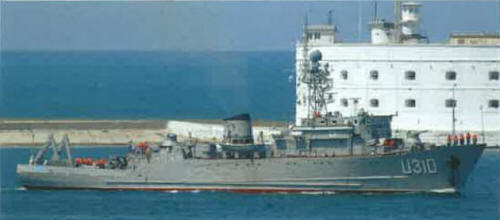

Chernigiv 2013
