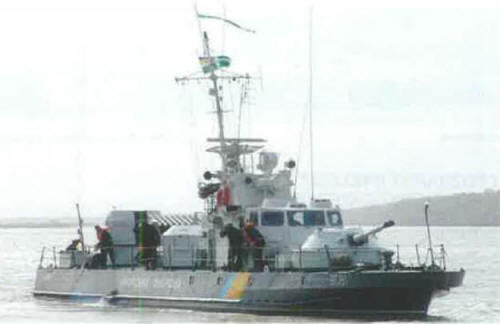

Lubny 1995
|
Names |
171 Лубни [Lubny] (ex-AK-211), 1999- BG82 Лубни [Lubny] 172 Нiжин [Nizhyn] (ex-AK-563), 1999- BG83 Нiжин [Nizhyn] 173 Канiв [Kaniv] (ex-AK-246), 1999- BG81 Канiв [Kaniv] 174 Iзмаïл [Izmayil] (ex-AK-397), 1999- BG84 Iзмаïл [Izmayil] |
|
Builders |
Zaliv, Kerch': 171-174 |
|
Commissioned |
1968 // 1994: 172 1969 // 1994: 174 1971 // 1994: 173 1972 // 1994: 171 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
in service (2020): BG81-84 |
|
Displacement standard, t |
|
|
Displacement full, t |
71 77 |
|
Length, m |
27.4 |
|
Breadth, m |
4.32 |
|
Draught, m |
0.85 1.00 |
|
No of shafts |
2 |
|
Machinery |
2 M-50F diesels |
|
Power, h. p. |
2400 |
|
Max speed, kts |
24 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
320(10) |
|
Armour, mm |
belt: 8, deck: 4, turret: 15 - 10, CT: 10 - 4 |
|
Armament |
171, 173: 1 x 1 - 76/48 D-56TS, 1 x 2 - 25/82 2M-3M, 1 x 1 - 7.6/94, 1 x 17 - 140 BM-14-17 RL, 4 x 1 - 30 BP-30 Plamia GL, 10 mines 172, 174: 1 x 1 - 76/48 D-56TS, 1 x 2 - 14.5/93, 1 x 1 - 7.6/94, 10 mines |
| Electronic equipment | Donets-2 radar |
|
Complement |
14 |
Project history: Border Guard, later Coast Guard. Former project 1204 riverine armoured gunboats of Soviet Navy.
Modernizations: None.
Naval service: No significant events.
Lubny 2009
