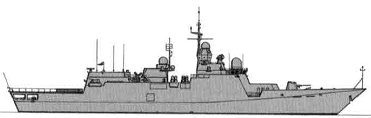

Volodimir Velikiy
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Володимир Великий [Volodimir Velikiy] | 01701 | Chernomorskiy SBZ, Nikolayev | 17.5.2011 | 2023 | building (2020) |
|
Displacement standard, t |
2500 |
|
Displacement full, t |
2650 |
|
Length, m |
112.0 |
|
Breadth, m |
13.5 |
|
Draught, m |
3.50 |
|
No of shafts |
2 |
|
Machinery |
CODOG: 2 Zoria-Mashproekt gas turbines / 2 Caterpillar diesels |
|
Power, h. p. |
|
|
Max speed, kts |
32 |
|
Fuel, t |
diesel / gas turbine oil |
|
Endurance, nm(kts) |
4000(12) |
|
Armament |
2 x 4 MM40 Exocet SSM (8 MM40 Block 3), 1 x 16 Sylver A43 SAM (VLS, 16 Aster-15), 1 x 1 - 76/62 OTO-Melata Compact SR, 2 x 1 - 35/90 Millenium, 2 x 1 - 12.7/79, 2 x 3 - 324 B515 TT (MU90 or A244), 1 helicopter (Ka-27 or NH90) |
|
Electronic equipment |
nav., air search, fire control radars, hull-mounted, towed sonars, ECM suite, type 2170 SSTDS torpedo decoy, decoy RL, CCS |
|
Complement |
110 |
Project history: Ukrainian project 58250. Originally a class of 10-12, later 6-8 and then 4 ships was planned but only lead ship was really commenced by building. Ship is built very slow due lack of funds. In 2019 building of 32%-completed ship was again suspended.
Modernizations: None.
Naval service: No significant events.
