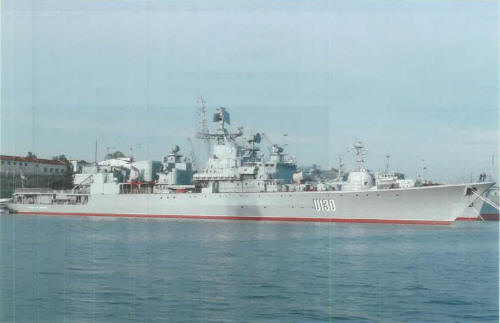

Get'man Sagaydachnyy 1995
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Гетьман Сагайдачний [Getman Sagaydachnyy] (ex-Киров [Kirov]) | U130, 2018- F130 | 208 | Zaliv, Kerch' | 5.10.1990 | 29.3.1992 | 5.7.1993 | in service (2020) |
| Гетьман Байда Вишневецький [Getman Bayda Vishnevetskiy] (ex-Красный вымпел [Krasnyy Vympel]) | 209 | Zaliv, Kerch' | 27.12.1992 | --- | --- | cancelled 1995 |
|
Displacement standard, t |
3274 |
|
Displacement full, t |
3642 |
|
Length, m |
123.0 |
|
Breadth, m |
14.2 |
|
Draught, m |
4.80 hull 7.30 max |
|
No of shafts |
2 |
|
Machinery |
COGAG: 2 M7N gas turbine units (each consisted of M70 cruising turbine and M8K boost turbine) |
|
Power, h. p. |
12000 + 34000 = 46000 |
|
Max speed, kts |
31 |
|
Fuel, t |
gas turbine oil |
|
Endurance, nm(kts) |
3000(18) |
|
Armament |
1 x 2 Osa-MA2 SAM (20 9M33), 1 x 1 - 100/59 AK-100, 2 x 6 - 30/54 AK-630M, 2 x 4 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 1 helicopter (Ka-27PS) |
|
Electronic equipment |
MR-750 Fregat-M2, MR-145 Lev-218-100, 4K-33, MR-225 Reyd-M, 2x MR-212/201 Vaygach-U radars, MG-335MS Platina-MS, MGK-345 Bronza, MGS-407 sonars, MI-110KM wake detector, MP-401S Start-S ECM suite, 4x PK-16 decoy RL |
|
Complement |
193 |
Project history: Major redesign of Naval Project 1135/1135M frigate for Border Guard service, with elimination of Metel'/Rastrub missiles in favor of helicopter facility (gunmounts were moved fwd). Ships were laid down for Soviet Navy but completed for Ukraine.
Modernizations: None.
Naval service: No significant events.
Get'man Sagaydachnyy 2011
