UKRAINIAN NAVY (UKRAINE)

COASTAL FORCES

KONOTOP attack hydrofoils (missile) (1979-1981/1995-1997)

Uman' 1997

Name No Yard No Builder Laid down Launched Comp Fate
Конотоп [Konotop] (ex-Р-15 [R-15]) U150 250 Sredne-Nevskiy SYd, Pontonny, USSR     29.10.1981 // 12.8.1997 to Georgia 6.1999 (თბილისი [Tbilisi])
Цюрупинськ [Tsiuriupinsk] (ex-Р-251 [R-251]) U151 249 Sredne-Nevskiy SYd, Pontonny, USSR     15.6.1981 // 10.1.1996 stricken 11.2000
Умань [Uman'] (ex-Р-260 [R-260]) U152 246 Sredne-Nevskiy SYd, Pontonny, USSR     1979 // 30.12.1995 stricken 11.2004
Прилуки [Priluki] (ex-Р-262 [R-262]) U153, 2018- P153 247 Sredne-Nevskiy SYd, Pontonny, USSR 30.11.1979   12.12.1980 // 10.1.1996 captured by Russia 20.3.2014, returned 11.4.2014, in service (2020)
Каховка [Kakhovka] (ex-Р-265 [R-265], ex-Комсомолец Татарии [Komsomolets Tatarii], ex-Р-265 [R-265]) U154 248 Sredne-Nevskiy SYd, Pontonny, USSR     15.11.1980 // 10.1.1996 stricken 11.2012







Displacement standard, t

233

Displacement full, t

257

Length, m

39.5

Breadth, m

7.60

Draught, m

2.00 hull

No of shafts

3

Machinery

3 M-520 diesels

Power, h. p.

15000

Max speed, kts

43

Fuel, t

diesel oil

Endurance, nm(kts)

2000(12)

Armament

2 x 1 P-15M Termit SSM (2 4K51), 1 x 4 Strela-3M SAM (16 9M36M), 1 x 1 - 76/59 AK-176M, 1 x 6 - 30/54 AK-630M

Electronic equipment

U150: 4Ts53 Garpun, MR-123 Vympel-A radars, 2x PK-16 decoy RL

U151, 153, 154: 4Ts53 Garpun, MR-123 Vympel-A, Omega radars, 2x PK-16 decoy RL

U152: 4Ts53 Garpun, MR-123 Vympel-A, Omega radars, Pchela ECM suite, 2x PK-16 decoy RL

Complement

29

Project history: Former Soviet project 206MR hydrofoils.

Modernizations: None.

Naval service: Priluki was captured by Russian troops 20.3.2014 at Sevastopol but 11.4.2014 returned.

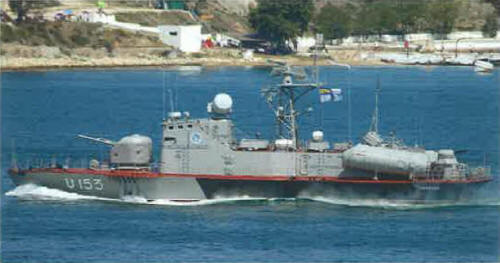

Priluki 2013
