nearly sister-ship Ant 1872
|
Name |
No |
Yard No |
Builder |
Laid down |
Launched |
Comp |
Fate |
| Insolent | 203 | Pembroke DYd | 1880 | 15.3.1881 | 1881 | gate vessel 1.1918 | |
| Bouncer | 204 | Pembroke DYd | 1880 | 15.3.1881 | 1881 | sold 4.1905 |
|
Displacement normal, t |
265 |
|
Displacement full, t |
|
|
Length, m |
26.6 |
|
Breadth, m |
7.96 |
|
Draught, m |
1.83 - 1.98 |
|
No of shafts |
2 |
|
Machinery |
2 2-cyl HSE, 1 cylindrical boiler |
|
Power, h. p. |
230 |
|
Max speed, kts |
8.5 |
|
Fuel, t |
coal |
|
Endurance, nm(kts) |
|
|
Armament |
1 x 1 - 254/15 MLR Mk I/II |
|
Complement |
30 |
Project history:
Rendel 'flatiron' gunboats.
Modernizations: None.
Naval service: No significant events.
Many thanks to Wolfgang Stöhr for additional information on this page.

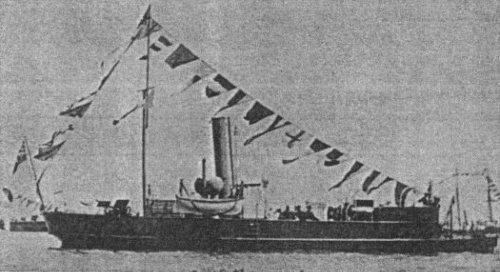

Bouncer
