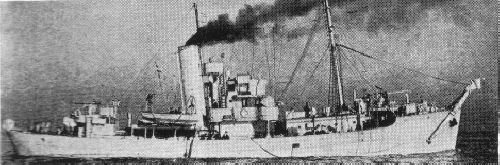

Sir Galahad 1943
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Sir Argavaine | T230 | 162 | Lewis, Aberdeen | 10/1941 | 5.3.1942 | 6.1942 | sold 4.1946 |
| Sir Galahad | T226 | 763 | Hall Russell, Aberdeen | 6/1941 | 18.12.1941 | 2.1942 | danlayer 1944 |
| Sir Gareth | T227 | 764 | Hall Russell, Aberdeen | 6/1941 | 19.1.1942 | 4.1942 | sold 4.1946 |
| Sir Geraint | T240 | 163 | Lewis, Aberdeen | 11/1941 | 15.4.1942 | 7.1942 | sold 4.1946 |
| Sir Kay | T241 | 768 | Hall Russell, Aberdeen | 2/1942 | 26.10.1942 | 2.1943 | sold 4.1946 |
| Sir Lamorak | T242 | 769 | Hall Russell, Aberdeen | 2/1942 | 23.12.1942 | 3.1943 | sold 4.1946 |
| Sir Lancelot | T228 | 160 | Lewis, Aberdeen | 7/1941 | 4.12.1941 | 3.1942 | danlayer 1944 |
| Sir Tristram | T229 | 161 | Lewis, Aberdeen | 9/1941 | 17.1.1942 | 5.1942 | sold 1947 |
|
Displacement standard, t |
440 |
|
Displacement full, t |
590 |
|
Length, m |
41.8 |
|
Breadth, m |
7.24 |
|
Draught, m |
3.86 deep load |
|
No of shafts |
1 |
|
Machinery |
1 VTE, 1 cylindrical boiler |
|
Power, h. p. |
600 |
|
Max speed, kts |
12 |
|
Fuel, t |
coal 100 |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 76/40 12pdr 12cwt QF Mk I/II/V, 3 x 1 - 20/70 Oerlikon Mk II/IV, 1 DCR (4), sweeps |
| Sensors | type 286PU (some) radar |
|
Complement |
35 |
Project history: Project is developed on the basis of a civil trawler Star of Orkney built in 1936. Minesweeping trawlers.
Modernizations: None.
Naval service: No significant events.
Sir Tristram 1944
Many thanks to Wolfgang Stöhr for additional information on this page.
