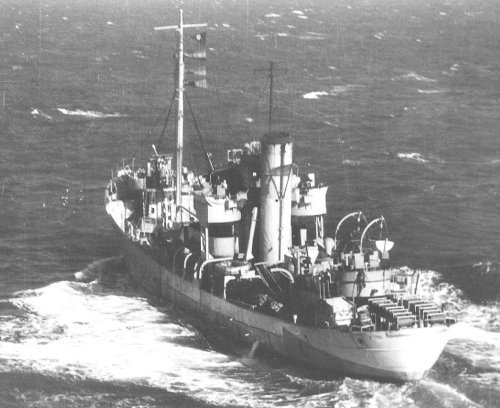

Butser 1943
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Birdlip | T218 | Cook, Welton & Gemmel, Beverley | 3/1941 | 9.7.1941 | 12.1941 | sunk 13.6.1944 | |
| Bredon | T223 | Cook, Welton & Gemmel, Beverley | 7/1941 | 20.11.1941 | 4.1942 | sunk 8.2.1943 | |
| Butser | T219 | Cook, Welton & Gemmel, Beverley | 4/1941 | 29.7.1941 | 1.1942 | sold 4.1946 | |
| Duncton | T220 | Cook, Welton & Gemmel, Beverley | 5/1941 | 6.9.1941 | 2.1942 | sold 4.1946 | |
| Dunkery | T224 | Cook, Welton & Gemmel, Beverley | 7/1941 | 4.12.1941 | 5.1942 | sold 4.1946 | |
| Inkpen | T225 | Cook, Welton & Gemmel, Beverley | 8/1941 | 22.12.1941 | 6.1942 | sold 10.1946 | |
| Portsdown | T221 | Cook, Welton & Gemmel, Beverley | 5/1941 | 24.9.1941 | 3.1942 | sold 4.1946 | |
| Yestor | T222 | Cook, Welton & Gemmel, Beverley | 1941 | 21.10.1941 | 4.1942 | sold 4.1946 |
|
Displacement standard, t |
750 |
|
Displacement full, t |
1005 |
|
Length, m |
55.6 |
|
Breadth, m |
8.61 |
|
Draught, m |
4.14 deep load 5.23 maximal |
|
No of shafts |
1 |
|
Machinery |
1 VTE, 1 cylindrical boiler |
|
Power, h. p. |
970 |
|
Max speed, kts |
12.25 |
|
Fuel, t |
coal 210 |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 76/40 12pdr 12cwt QF Mk I/II/V, 3 x 1 - 20/70 Oerlikon Mk II/IV, 4 DCT, 2 DCR (55) |
| Sensors | type 122 sonar |
|
Complement |
35 |
Project history: Project it is developed on the basis of a civil trawler Barnett built in 1937. ASW trawlers. Some units had composite hull.
Modernizations: 1943-1944, some: + type 271 (some), type 290 (some) radars
Naval service: Bredon 8.2.1943 was sunk by submarine U521, Birdlip 13.6.1944 by German submarine U547.
Duncton
