| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Aroha (RNZN) | T24 - T396 | Stevenson & Cook, Port Chalmers, New Zealand | 8.9.1942 | 5.1943 | sold 1946 | ||
| Awatere (RNZN) | T25 - T397 | Patent Slip, Wellington, New Zealand | 26.9.1942 | 6.1943 | sold 1946 | ||
| Hautapu (RNZN) | T26 - T340 | Stevenson & Cook, Port Chalmers, New Zealand | 18.11.1942 | 2.1944 | sold 1950 | ||
| Hinau (RNZN) | T17 - T399 | Senior Foundry, Auckland, New Zealand | 28.8.1941 | 7.1942 | sold 1955 | ||
| Maimai (RNZN) | T27 - T338 | Stevenson & Cook, Port Chalmers, New Zealand | 25.2.1943 | 1944 | sold 1946 | ||
| Manuka (RNZN) | T19 - T401 | Mason, Auckland, New Zealand | 23.9.1941 | 3.1942 | sold 1946 | ||
| Pahau (RNZN) | T28 - T351 | Stevenson & Cook, Port Chalmers, New Zealand | 3.4.1943 | 2.1944 | sold 1949 | ||
| Puriri (RNZN) | Stevenson & Cook, Port Chalmers, New Zealand | 1941 | 1941 | sunk 14.5.1941 | |||
| Rimu (RNZN) | T18 - T402 | Seager, Auckland, New Zealand | 9.9.1941 | 7.1942 | sold 1955 | ||
| Tawhai (RNZN) | T348 | Seager, Auckland, New Zealand | 20.7.1943 | 4.1944 | sold 1946 | ||
| Waiau (RNZN) | Mason, Auckland, New Zealand | --- | --- | cancelled 1946 | |||
| Waiho (RNZN) | T34 - T403 | Stevenson & Cook, Port Chalmers, New Zealand | 19.2.1944 | 6.1944 | sold 1946 | ||
| Waiiti (RNZN) | Stevenson & Cook, Port Chalmers, New Zealand | --- | --- | cancelled 10.1943 | |||
| Waikaka (RNZN) | Stevenson & Cook, Port Chalmers, New Zealand | --- | --- | cancelled 10.1943 | |||
| Waikanae (RNZN) | Stevenson & Cook, Port Chalmers, New Zealand | --- | --- | cancelled 10.1943 | |||
| Waikato (RNZN) | T343 | Mason, Auckland, New Zealand | 16.10.1943 | 3.1944 | sold 1946 | ||
| Waima (RNZN) | T33 - T349 | Stevenson & Cook, Port Chalmers, New Zealand | 11.12.1943 | 1944 | sold 1946 | ||
| Waipu (RNZN) | T32 - T357 | Stevenson & Cook, Port Chalmers, New Zealand | 31.7.1943 | 11.1943 | sold 1946 |
|
Displacement standard, t |
447 |
|
Displacement full, t |
625 |
|
Length, m |
38.1 pp |
|
Breadth, m |
7.16 |
|
Draught, m |
4.27 maximal |
|
No of shafts |
1 |
|
Machinery |
1 VTE, 1 cylindrical boiler |
|
Power, h. p. |
|
|
Max speed, kts |
10 |
|
Fuel, t |
coal |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 76/40 12pdr 12cwt QF Mk I/II/V, 1 x 1 - 20/70 Oerlikon Mk II/IV, 1 DCT (4), mechanical minesweeping gear |
|
Complement |
42 |
Project history: Project is created on a basis of Castle class trawlers from First World War. Part of the ships had composite hulls. Minesweeping trawlers.
Modernizations: Some units had composite hull.
Naval service: Puriri was mined in 1941.

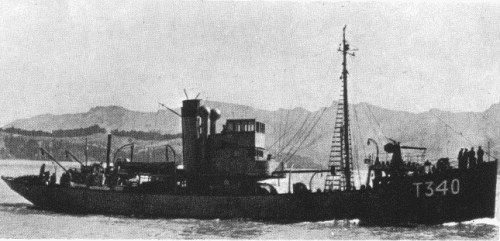

Hautapu 1946
